SMALLEY® WAVE SPRINGS

SAE 1070-90 Carbon Steel

surface finishes
Oil dipped

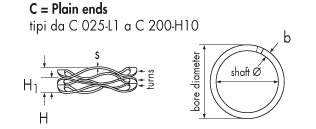

Example of designation: C025-L1

d1=bore diameter
d4=shaft diameter
S=thickness
H=free height
H1=work height

C - inch series
plain ends

description

Price
Euro x100

% Price Change
1	2

Package

C031-M5

59,00

+ 20%

500

WAWE

description
C031-M5

d1 - bore diameter	inch. 0.312
mm 7.92

d4 - shaft diameter	inch. 0.200
mm 5.08

Load	Lb in H1 6.00
N in H1 26.70

H1 work height	inch. 0.176
mm 4.47

H free height	inch. 0.266
mm 6.76

turns nr

wave nr

2.5

Weight Kg/1000

0.28

s	inch. 0.010
mm 0.25

b	inch. 0.032
mm 0.81

spring rate	Lb/inch 67
N/mm 12
(Theoretical value)

Technical informations are indicative and can be updated.
