Material:
Spring steel
Hardness:
48÷52 HRC  485÷545 HV
SURFACE FINISHES
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type H 15
|
 |

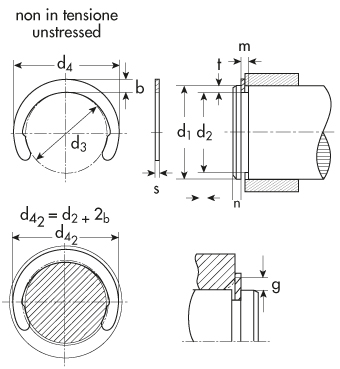

d1=shaft diameter
d2=groove diameter
d3=inner diameter in the unstressed state
d4=external diameter in the unstressed state
s=thickness
|
|
crescent rings type H - for shafts
|
|
|
|
| |
| Click the measures to enter the data sheet |
|
|
| • = prior to sale |
|
d1
|
|
description |
Price VAT excl.
euro/100
|
|
Package |
s |
d3 |
d2 |
d4 |
| 3.00 |
|
H 3 |
2,50
|
|
5000 |
0.40 |
2.18 |
2.3 |
3.98 |
 |
|
|
|
| 4.00 |
|
H 4 |
0,45
|
|
5000 |
0.40 |
3.00 |
3.2 |
5.00 |
|
|
|
|
| 5.00 |
|
H 5 |
2,50
|
|
5000 |
0.60 |
3.80 |
4.0 |
6.20 |
|
|
|
|
| 6.00 |
|
H 6 |
2,70
|
|
5000 |
0.70 |
4.80 |
5.0 |
7.40 |
|
|
|
|
| 7.00 |
|
H 7 |
3,00
|
|
5000 |
0.80 |
5.80 |
6.0 |
8.60 |
|
|
|
|
| 8.00 |
|
H 8 |
0,70
|
|
5000 |
0.80 |
6.80 |
7.0 |
10.00 |
|
|
|
|
| 9.00 |
|
H 9 |
0,80
|
|
5000 |
1.00 |
7.80 |
8.0 |
11.20 |
|
|
|
|
| 10.00 |
|
H 10 |
3,50
|
|
1000 |
1.00 |
8.75 |
9.0 |
12.15 |
|
|
|
|
| 11.00 |
|
H 11 |
4,00
|
|
1000 |
1.00 |
9.65 |
10.0 |
13.20 |
|
|
|
|
| 12.00 |
|
H 12 |
0,90
|
|
1000 |
1.00 |
10.55 |
10.9 |
14.35 |
|
|
|
|
| 13.00 |
|
H 13 |
1,20
|
|
1000 |
1.00 |
11.40 |
11.8 |
15.40 |
|
|
|
|
| 14.00 |
|
H 14 |
5,50
|
|
1000 |
1.00 |
12.30 |
12.7 |
16.30 |
|
|
|
|
| 15.00 |
|
H 15 |
1,60
|
|
1000 |
1.00 |
13.20 |
13.6 |
17.40 |
|
|
|
|
| 16.00 |
|
H 16 |
1,70
|
|
1000 |
1.00 |
14.10 |
14.5 |
18.50 |
|
|
|
|
| 17.00 |
|
H 17 |
2,00
|
|
1000 |
1.00 |
14.90 |
15.4 |
19.40 |
|
|
|
|
| 18.00 |
|
H 18 |
2,20
|
|
1000 |
1.20 |
15.80 |
16.3 |
20.40 |
|
|
|
|
| 19.00 |
|
H 19 |
2,60
|
|
1000 |
1.20 |
16.70 |
17.2 |
21.50 |
|
|
|
|
| 20.00 |
|
H 20 |
10,00
|
|
1000 |
1.20 |
17.55 |
18.1 |
22.65 |
|
|
|
|
| 22.00 |
|
H 22 |
11,00
|
|
1000 |
1.20 |
19.40 |
19.9 |
25.00 |
|
|
|
|
| 23.00 |
|
H 23 |
on demand
|
|
1000 |
1.20 |
20.20 |
20.8 |
26.00 |
|
|
|
|
| 24.00 |
|
H 24 |
on demand
|
|
1000 |
1.20 |
21.10 |
21.7 |
27.10 |
|
|
|
|
| 25.00 |
|
H 25 |
15,00
|
|
500 |
1.20 |
22.00 |
22.6 |
28.30 |
|
|
|
|
| 26.00 |
|
H 26 |
30,00
|
|
500 |
1.20 |
22.90 |
23.5 |
29.40 |
|
|
|
|
| 28.00 |
|
H 28 |
on demand
|
|
500 |
1.50 |
24.60 |
25.2 |
31.60 |
|
|
|
|
| 30.00 |
|
H 30 |
6,50
|
|
500 |
1.50 |
26.30 |
27.0 |
33.70 |
|
|
|
|
| 32.00 |
|
H 32 |
on demand
|
|
500 |
1.50 |
28.10 |
28.8 |
36.10 |
|
|
|
|
| 35.00 |
|
H 35 |
on demand
|
|
500 |
1.50 |
30.80 |
31.5 |
39.40 |
|
|
|
|
| 36.00 |
|
H 36 |
on demand
|
|
500 |
1.75 |
31.70 |
32.4 |
40.50 |
|
|
|
|
| 38.00 |
|
H 38 |
on demand
|
|
500 |
1.75 |
33.40 |
34.2 |
42.60 |
|
|
|
|
| 40.00 |
|
H 40 |
70,00
|
|
250 |
1.75 |
35.20 |
36.0 |
45.00 |
|
|
|
|
| 42.00 |
|
H 42 |
on demand
|
|
250 |
1.75 |
37.00 |
37.8 |
47.20 |
|
|
|
|
| 45.00 |
|
H 45 |
on demand
|
|
250 |
1.75 |
39.60 |
40.5 |
50.60 |
|
|
|
|
| 48.00 |
|
H 48 |
100,00
|
|
250 |
1.75 |
42.30 |
43.2 |
54.10 |
|
|
|
|
| 50.00 |
|
H 50 |
on demand
|
|
100 |
2.00 |
44.00 |
45.0 |
56.40 |
|
|
|
|
| 52.00 |
|
H 52 |
on demand
|
|
100 |
2.00 |
46.00 |
47.0 |
58.60 |
|
|
|
|
| 55.00 |
|
H 55 |
150,00 •
|
|
100 |
2.00 |
48.50 |
50.0 |
61.50 |
|
|
|
|
|
|
|
