Material: Spring steel
Hardness:
SURFACE FINISHES
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
NAS 75 (3/4)
|
 |

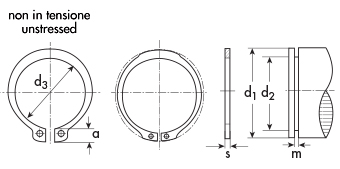

d1=shaft diameter
d2=grove diameter
d3=ring diameter in the unstressed state
s=thickness
|
|
Inch DIN 471 UNI 7436
Type NAS heavy-duty thickness, for shafts
|
|
|
|
| |
| Click the measures to enter the data sheet |
|
|
| • = prior to sale |
|
d1
|
d1 inch
|
s inch
|
d3 inch
|
|
description |
Price VAT excl.
euro/100
|
|
Package |
| 10.0 |
0.394 |
0.035 |
0.362 |
|
NAS 39 |
12,00
|
|
1000 |
 |
|
|
|
| 10.90 |
0.428 |
0.035 |
0.394 |
|
NAS 42 |
on demand
|
|
1000 |
|
|
|
|
| 12.00 |
0.473 |
0.042 |
0.435 |
|
NAS 47 |
13,00
|
|
1000 |
|
|
|
|
| 12.70 |
0.500 |
0.050 |
0.460 |
|
NAS 50 (1/2) |
14,00
|
|
1000 |
|
|
|
|
| 15.00 |
0.591 |
0.050 |
0.543 |
|
NAS 59 |
on demand
|
|
1000 |
|
|
|
|
| 15.90 |
0.625 |
0.050 |
0.575 |
|
NAS 62 (5/8) |
15,00
|
|
1000 |
|
|
|
|
| 17.00 |
0.669 |
0.050 |
0.616 |
|
NAS 66 |
16,00
|
|
1000 |
|
|
|
|
| 19.00 |
0.750 |
0.078 |
0.689 |
|
NAS 75 (3/4) |
20,00
|
|
500 |
|
|
|
|
| 22.20 |
0.875 |
0.078 |
0.804 |
|
NAS 87 (7/8) |
on demand
|
|
500 |
|
|
|
|
| 25.40 |
1.000 |
0.078 |
0.906 |
|
NAS 98 (1 ) |
40,00
|
|
250 |
|
|
|
|
| 27.00 |
1.062 |
0.093 |
0.978 |
|
NAS 106 (1-1/16) |
on demand
|
|
250 |
|
|
|
|
| 28.60 |
1.125 |
0.093 |
1.036 |
|
NAS 112 (1-1/8) |
on demand
|
|
250 |
|
|
|
|
| 30.20 |
1.188 |
0.093 |
1.087 |
|
NAS 118 (1-3/16) |
on demand
|
|
250 |
|
|
|
|
| 31.70 |
1.250 |
0.093 |
1.150 |
|
NAS 125 (1-1/4) |
60,00
|
|
250 |
|
|
|
|
| 33.30 |
1.312 |
0.093 |
1.208 |
|
NAS 131 (1-5/16) |
on demand
|
|
100 |
|
|
|
|
| 34.90 |
1.375 |
0.093 |
1.268 |
|
NAS 137 (1-3/8) |
on demand
|
|
100 |
|
|
|
|
| 38.10 |
1.500 |
0.109 |
1.380 |
|
NAS 150 (1-1/2) |
on demand
|
|
50 |
|
|
|
|
| 39.70 |
1.562 |
0.109 |
1.437 |
|
NAS 156 (1-9/16) |
120,00
|
|
50 |
|
|
|
|
| 44.40 |
1.750 |
0.109 |
1.608 |
|
NAS 175 (1-3/4) |
140,00
|
|
50 |
|
|
|
|
| 49.20 |
1.938 |
0.125 |
1.782 |
|
NAS 193 (1-15/16) |
on demand
|
|
50 |
|
|
|
|
| 50.80 |
2.000 |
0.125 |
1.840 |
|
NAS 200 (2) |
160,00
|
|
50 |
|
|
|
|
| |
|
|
|
|
NAS 225 (2-31/4) |
200,00
|
|
50 |
|
|
|
|
|
|
|
