Rings TYPE JL for bores
Compensating axial gaps
Compensating axial gaps
Material: Carbon steel
Hardness:
d1: 10รท48mm 470รท580 HV โฉ 47รท54 HRC
Hardness:
d1: 50รท100mm 435รท530 HV โฉ 44รท51 HRC
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type JL 30

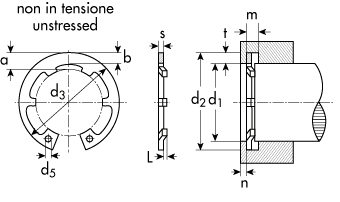

d1=bore diameter
d2=groove diameter
d3=ring diameter in the unstressed state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| JL 16 | 14,00 | 1.000 | 16,00 | 0,600 | 17,300 | 16,800 |
| JL 17 | 3,00 net | 1.000 | 17,00 | 0,600 | 18,300 | 17,800 |
| JL 18 | 16,00 | 1.000 | 18,00 | 0,800 | 19,500 | 19,000 |
| JL 19 | 17,00 | 1.000 | 19,00 | 0,800 | 20,500 | 20,000 |
| JL 20 | 18,00 | 1.000 | 20,00 | 1,000 | 21,500 | 21,000 |
| JL 21 | 19,00 | 1.000 | 21,00 | 1,000 | 22,500 | 22,000 |
| JL 22 | 20,00 | 1.000 | 22,00 | 1,000 | 23,500 | 23,000 |
| JL 23 | 21,00 | 1.000 | 23,00 | 1,200 | 24,600 | 24,100 |
| JL 24 | 22,00 | 1.000 | 24,00 | 1,200 | 25,900 | 25,200 |
| JL 25 | 23,00 | 500 | 25,00 | 1,200 | 26,900 | 26,200 |
| JL 26 | 24,00 | 500 | 26,00 | 1,200 | 28,500 | 27,200 |
| JL 27 | 25,00 | 500 | 27,00 | 1,200 | 29,100 | 28,400 |
| JL 28 | 26,00 | 500 | 28,00 | 1,200 | 30,100 | 29,400 |
| JL 30 | 27,00 | 500 | 30,00 | 1,200 | 32,100 | 31,400 |
| JL 31 | on demand | 500 | 31,00 | 1,200 | 33,400 | 32,400 |
| JL 32 | 30,00 | 250 | 32,00 | 1,200 | 34,400 | 33,700 |
| JL 33 | on demand | 250 | 33,00 | 1,200 | 35,500 | 34,700 |
| JL 34 | 6,00 net | 250 | 34,00 | 1,500 | 36,500 | 35,700 |
| JL 35 | 10,00 net | 250 | 35,00 | 1,500 | 37,800 | 37,000 |
| JL 36 | 60,00 | 250 | 36,00 | 1,500 | 38,800 | 38,000 |
| JL 38 | 70,00 | 250 | 38,00 | 1,500 | 40,800 | 40,000 |
| JL 40 | 80,00 | 100 | 40,00 | 1,750 | 43,500 | 42,500 |
| JL 42 | 90,00 | 100 | 42,00 | 1,750 | 45,500 | 44,500 |
| JL 44 | on demand | 100 | 44,00 | 1,750 | 47,500 | 46,500 |
| JL 45 | 100,00 | 100 | 45,00 | 1,750 | 48,500 | 47,500 |
| JL 47 | 110,00 | 100 | 47,00 | 1,750 | 50,500 | 49,500 |
| JL 48 | on demand | 100 | 48,00 | 1,750 | 51,500 | 50,500 |
| JL 50 | 120,00 | 100 | 50,00 | 2,000 | 54,200 | 53,000 |
| JL 52 | 130,00 | 100 | 52,00 | 2,000 | 56,200 | 55,000 |
| JL 55 | 140,00 | 100 | 55,00 | 2,000 | 59,200 | 58,000 |
| JL 57 | 150,00 | 100 | 57,00 | 2,000 | 61,200 | 60,000 |
| JL 58 | on demand | 100 | 58,00 | 2,000 | 62,200 | 61,000 |
| JL 60 | 160,00 | 100 | 60,00 | 2,000 | 64,200 | 63,000 |
| JL 62 | 170,00 | 100 | 62,00 | 2,000 | 66,200 | 65,000 |
| JL 65 | 180,00 | 50 | 65,00 | 2,500 | 69,200 | 68,000 |
| JL 67 | on demand | 50 | 67,00 | 2,500 | 71,500 | 70,000 |
| JL 68 | on demand | 50 | 68,00 | 2,500 | 72,500 | 71,000 |
| JL 70 | 200,00 | 50 | 70,00 | 2,500 | 74,500 | 73,000 |
| JL 72 | 240,00 | 50 | 72,00 | 2,500 | 76,500 | 75,000 |
| JL 75 | 280,00 | 50 | 75,00 | 2,500 | 79,500 | 78,000 |
| JL 80 | 320,00 | 50 | 80,00 | 2,500 | 85,500 | 83,500 |
| JL 85 | 360,00 | 50 | 85,00 | 3,000 | 90,500 | 88,500 |
| JL 90 | 400,00 | 50 | 90,00 | 3,000 | 95,500 | 93,500 |
| JL 95 | on demand | 50 | 95,00 | 3,000 | 100,500 | 98,500 |
| JL 100 | 450,00 | 50 | 100,00 | 3,000 | 105,500 | 103,500 |
