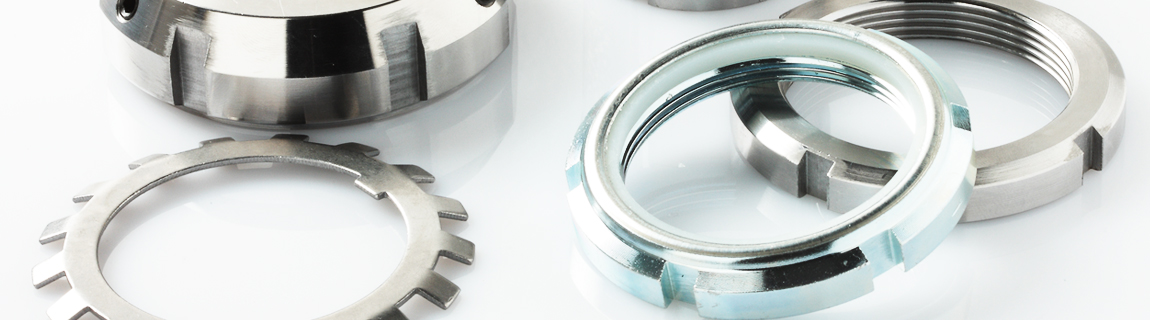

According to their applications the nuts may be of locking or unlocking type. They are used for fastening bearings on shafts and for demounting them from pressure adapter sleeves. Four or eight notches allow their mounting or demounting through pin or percussion wrenches.

According to their applications the nuts may be of locking or unlocking type. They are used for fastening bearings on shafts and for demounting them from pressure adapter sleeves. Four or eight notches allow their mounting or demounting through pin or percussion wrenches.

Similars to KM type but with larger diameters it is distinguished by having eight slots and to be fixed by safety brackets MS instead of safety washers MB.

According to their applications the nuts may be of locking or unlocking type. They are used for fastening bearings on shafts and for demounting them from pressure adapter sleeves. Four or eight notches allow their mounting or demounting through pin or percussion wrenches.

According to their applications the nuts may be of locking or unlocking type. They are used for fastening bearings on shafts and for demounting them from pressure adapter sleeves. Four or eight notches allow their mounting or demounting through pin or percussion wrenches.

According to their applications the nuts may be of locking or unlocking type. They are used for fastening bearings on shafts and for demounting them from pressure adapter sleeves. Four or eight notches allow their mounting or demounting through pin or percussion wrenches.

The washers lock the little and middle nuts on the shaft. They go into the shaft groove and bending one of the tabs into one of the notches they will be positioned and blocked.

The washers lock the little and middle nuts on the shaft. They go into the shaft groove and bending one of the tabs into one of the notches they will be positioned and blocked.

The washers lock the little and middle nuts on the shaft. They go into the shaft groove and bending one of the tabs into one of the notches they will be positioned and blocked.

According to their applications the nuts may be of locking or unlocking type. They are used for fastening bearings on shafts and for demounting them from pressure adapter sleeves. Four or eight notches allow their mounting or demounting through pin or percussion wrenches.

The washers lock the little and middle nuts on the shaft. They go into the shaft groove and bending one of the tabs into one of the notches they will be positioned and blocked.

The safety brackets lock the little and middle nuts on the shaft. They will be fastened to the nut with a hexagonal-head screw fitting into the shaft groove and into a nut notch.

It is precision locknuts. The degree of precision of the thread is 4H instead of 6H of KM type.

These precision nuts are fastened on the shaft thanks to three fixing screws pressed against the shaft itself. Up to the size 15 they show two plain faces for the clamping through adjustable wrenches. The three screws permit to compensate the lack of precision of the elements to be fastened and to exactly position the nut perpendicularly with the shaft axel.

They are precision locknuts similar to KMT type with a reduced outside diameter. They too are locked on the shaft by three screws, have a cylindrical outer surface and are useful when there is not enough space. The holes on the surface are used for tightening by hook wrenches while for frontal holes by adaptors.

Precision nuts are fastened on the shaft through 3 fixing screws

It is precision locknuts. The degree of precision of the thread is 4H instead of 6H of KM type.

It is precision locknuts. The degree of precision of the thread is 4H instead of 6H of KM type.

It is precision locknuts. The degree of precision of the thread is 4H instead of 6H of KM type.

A nylon insert inside the self-locking nuts has a self-threading function at the mounting with a consequential locking effect. They will be mounted on not splined shafts not needing a washer for their locking.

A nylon insert inside the self-locking nuts has a self-threading function at the mounting with a consequential locking effect. They will be mounted on not splined shafts not needing a washer for their locking.

A nylon insert inside the self-locking nuts has a self-threading function at the mounting with a consequential locking effect. They will be mounted on not splined shafts not needing a washer for their locking.

Adjusting rings are used on shaft with threaded and are locked by one or two grains depending of diameter.

Adjusting rings are used on shaft with threaded and are locked by one or two grains depending of diameter.

The tensile adapter sleeves are backing components for the mounting of bearings with conical hole on cylindrical shafts with or without supports. The tensile adapter sleeves will be supplied complete with nut and safety device (washer or bracket). On the conical side of the adapter sleeve previously mounted on the shaft the bearing will be pushed positioning it through the screwing of the nut.

The tensile adapter sleeves are backing components for the mounting of bearings with conical hole on cylindrical shafts with or without supports. The tensile adapter sleeves will be supplied complete with nut and safety device (washer or bracket). On the conical side of the adapter sleeve previously mounted on the shaft the bearing will be pushed positioning it through the screwing of the nut.

The pressure adapter sleeves are backing components for the mounting of bearings with conical hole on cylindrical shafts with supports. The adapter sleeve will be pushed into the hole of the bearing close to the shaft support through a nut (separately supplied) working on the threaded side of the shaft. Another nut separately supplied will act on the threaded side of the adapter sleeve for the demounting.

The pressure adapter sleeves are backing components for the mounting of bearings with conical hole on cylindrical shafts with supports. The adapter sleeve will be pushed into the hole of the bearing close to the shaft support through a nut (separately supplied) working on the threaded side of the shaft. Another nut separately supplied will act on the threaded side of the adapter sleeve for the demounting.

The Hook wrenches serve for the mounting and dismounting of the locknuts KM, KMW, KMT types.
