Available materials: Steel Stainless steel
Rings TYPE SB for bores
DIN 9928 Circlips
DIN 9928 Circlips
Material: Carbon steel
Hardness:
minumun 40 HRC
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type SB 30

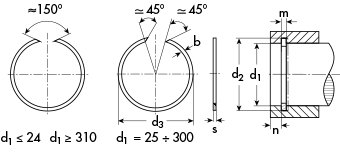

d1=bore diameter
d2=groove diameter
d3=inner diameter in the unstressed state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| SB 7 | on demand | - | 7,00 | 0,800 | 7,500 | 7,300 |
| SB 8 | 3,50 | 2.000 | 8,00 | 0,800 | 8,500 | 8,300 |
| SB 9 | 4,00 | 2.000 | 9,00 | 0,800 | 9,500 | 9,300 |
| SB 10 | 4,50 | 2.000 | 10,00 | 0,800 | 10,600 | 10,400 |
| SB 11 | 5,00 | 1.000 | 11,00 | 1,000 | 11,600 | 11,400 |
| SB 12 | 5,50 | 1.000 | 12,00 | 1,000 | 12,700 | 12,400 |
| SB 13 | 6,00 | 1.000 | 13,00 | 1,000 | 13,800 | 13,500 |
| SB 14 | 6,50 | 1.000 | 14,00 | 1,000 | 14,800 | 14,500 |
| SB 15 | 7,00 | 1.000 | 15,00 | 1,000 | 15,800 | 15,500 |
| SB 16 | 7,50 | 1.000 | 16,00 | 1,200 | 16,800 | 16,500 |
| SB 17 | 8,00 | 1.000 | 17,00 | 1,200 | 17,800 | 17,500 |
| SB 18 | 8,50 | 1.000 | 18,00 | 1,200 | 18,900 | 18,500 |
| SB 19 | 9,00 | 1.000 | 19,00 | 1,200 | 19,900 | 19,600 |
| SB 20 | 9,50 | 1.000 | 20,00 | 1,200 | 21,000 | 20,600 |
| SB 21 | 10,00 | 1.000 | 21,00 | 1,200 | 22,000 | 21,600 |
| SB 22 | 10,50 | 1.000 | 22,00 | 1,200 | 23,000 | 22,600 |
| SB 23 | 11,00 | 1.000 | 23,00 | 1,200 | 24,000 | 23,600 |
| SB 24 | 11,50 | 500 | 24,00 | 1,200 | 25,200 | 24,800 |
| SB 25 | 12,00 | 500 | 25,00 | 1,200 | 26,200 | 25,800 |
| SB 26 | 12,50 | 500 | 26,00 | 1,200 | 27,200 | 26,800 |
| SB 27 | 13,00 | 500 | 27,00 | 1,200 | 28,200 | 27,800 |
| SB 28 | 13,50 | 500 | 28,00 | 1,200 | 29,200 | 28,800 |
| SB 29 | 14,00 | 500 | 29,00 | 1,200 | 30,200 | 29,800 |
| SB 30 | 14,50 | 500 | 30,00 | 1,500 | 31,400 | 31,000 |
| SB 31 | 15,00 | 250 | 31,00 | 1,500 | 32,400 | 32,000 |
| SB 32 | 15,50 | 250 | 32,00 | 1,500 | 33,400 | 33,000 |
| SB 33 | 16,00 | 250 | 33,00 | 1,500 | 34,400 | 34,000 |
| SB 34 | 16,00 | 250 | 34,00 | 1,500 | 35,400 | 35,000 |
| SB 35 | 16,50 | 250 | 35,00 | 1,500 | 36,400 | 36,000 |
| SB 37 | 16,50 | 250 | 37,00 | 1,500 | 38,800 | 38,200 |
| SB 38 | 17,00 | 250 | 38,00 | 1,500 | 39,800 | 39,200 |
| SB 39 | 17,00 | 250 | 39,00 | 1,500 | 40,800 | 40,200 |
| SB 40 | 17,00 | 100 | 40,00 | 1,500 | 41,800 | 41,200 |
| SB 42 | 18,00 | 100 | 42,00 | 1,500 | 43,800 | 43,200 |
| SB 43 | 18,00 | 100 | 43,00 | 1,500 | 44,800 | 44,200 |
| SB 44 | 18,00 | 100 | 44,00 | 1,500 | 45,800 | 45,200 |
| SB 45 | 19,00 | 100 | 45,00 | 1,500 | 46,800 | 46,200 |
| SB 46 | 19,00 | 100 | 46,00 | 1,500 | 47,800 | 47,200 |
| SB 47 | 19,00 | 100 | 47,00 | 1,500 | 48,800 | 48,200 |
| SB 48 | 20,00 | 100 | 48,00 | 1,500 | 49,800 | 49,200 |
| SB 50 | 21,00 | 100 | 50,00 | 1,500 | 51,800 | 51,200 |
| SB 52 | 21,00 | 100 | 52,00 | 1,500 | 54,300 | 53,500 |
| SB 53 | 21,00 | 100 | 53,00 | 1,500 | 55,300 | 54,500 |
| SB 55 | 22,00 | 100 | 55,00 | 1,500 | 57,300 | 56,500 |
| SB 57 | 22,00 | 100 | 57,00 | 1,500 | 59,300 | 58,500 |
| SB 58 | 23,00 | 100 | 58,00 | 1,500 | 60,300 | 59,500 |
| SB 60 | 23,00 | 100 | 60,00 | 1,500 | 62,300 | 61,500 |
| SB 62 | 24,00 | 100 | 62,00 | 1,500 | 64,300 | 63,500 |
| SB 63 | 25,00 | 100 | 63,00 | 1,500 | 65,300 | 64,500 |
| SB 65 | 26,00 | 100 | 65,00 | 1,500 | 67,300 | 66,500 |
| SB 68 | 27,00 | 100 | 68,00 | 1,500 | 70,300 | 69,500 |
| SB 70 | 28,00 | 100 | 70,00 | 1,500 | 72,300 | 71,500 |
| SB 72 | 32,00 | 100 | 72,00 | 2,000 | 74,600 | 73,800 |
| SB 73 | 34,00 | 100 | 73,00 | 2,000 | 75,600 | 74,800 |
| SB 74 | 36,00 | 100 | 74,00 | 2,000 | 76,600 | 75,800 |
| SB 76 | 38,00 | 100 | 76,00 | 2,000 | 78,600 | 77,800 |
| SB 78 | 40,00 | 100 | 78,00 | 2,000 | 80,600 | 79,800 |
| SB 79 | 42,00 | 100 | 79,00 | 2,000 | 81,600 | 80,800 |
| SB 80 | 44,00 | 100 | 80,00 | 2,000 | 82,600 | 81,800 |
| SB 81 | 46,00 | 100 | 81,00 | 2,000 | 83,600 | 82,800 |
| SB 82 | 48,00 | 100 | 82,00 | 2,000 | 84,600 | 83,800 |
| SB 83 | 50,00 | 100 | 83,00 | 2,000 | 85,600 | 84,800 |
| SB 85 | 55,00 | 100 | 85,00 | 2,000 | 87,600 | 86,800 |
| SB 86 | 60,00 | 100 | 86,00 | 2,000 | 88,600 | 87,800 |
| SB 88 | 65,00 | 100 | 88,00 | 2,500 | 91,000 | 90,000 |
| SB 90 | 70,00 | 50 | 90,00 | 2,500 | 93,000 | 92,000 |
| SB 92 | 75,00 | 50 | 92,00 | 2,500 | 95,000 | 94,000 |
| SB 93 | 80,00 | 50 | 93,00 | 2,500 | 96,000 | 95,000 |
| SB 95 | 85,00 | 50 | 95,00 | 2,500 | 98,000 | 97,000 |
| SB 97 | 90,00 | 50 | 97,00 | 2,500 | 100,000 | 99,000 |
| SB 98 | 95,00 | 50 | 98,00 | 2,500 | 101,000 | 100,000 |
| SB 100 | 100,00 | 50 | 100,00 | 2,500 | 103,000 | 102,000 |
| SB 102 | 100,00 | 50 | 102,00 | 2,500 | 105,300 | 104,300 |
| SB 103 | 105,00 | 50 | 103,00 | 2,500 | 106,300 | 105,300 |
| SB 105 | 105,00 | 50 | 105,00 | 2,500 | 108,300 | 107,300 |
| SB 107 | 110,00 | 50 | 107,00 | 2,500 | 110,300 | 109,300 |
| SB 108 | 110,00 | 50 | 108,00 | 2,500 | 111,300 | 110,300 |
| SB 110 | 115,00 | 50 | 110,00 | 2,500 | 113,400 | 112,300 |
| SB 112 | 115,00 | 50 | 112,00 | 2,500 | 115,400 | 114,300 |
| SB 113 | 120,00 | 50 | 113,00 | 2,500 | 116,400 | 115,300 |
| SB 115 | 120,00 | 50 | 115,00 | 2,500 | 118,400 | 117,300 |
| SB 117 | 120,00 | 50 | 117,00 | 2,500 | 120,400 | 119,300 |
| SB 118 | 125,00 | 50 | 118,00 | 2,500 | 121,400 | 120,300 |
| SB 120 | 125,00 | 50 | 120,00 | 2,500 | 123,500 | 122,300 |
| SB 123 | 125,00 | 50 | 123,00 | 2,500 | 126,500 | 125,300 |
| SB 125 | 130,00 | 50 | 125,00 | 2,500 | 128,500 | 127,300 |
| SB 127 | 130,00 | 50 | 127,00 | 2,500 | 130,500 | 129,300 |
| SB 130 | 130,00 | 50 | 130,00 | 2,500 | 133,600 | 132,300 |
| SB 133 | 135,00 | 50 | 133,00 | 2,500 | 136,600 | 135,300 |
| SB 135 | 135,00 | 50 | 135,00 | 2,500 | 138,600 | 137,300 |
| SB 137 | 135,00 | 50 | 137,00 | 2,500 | 140,600 | 139,300 |
| SB 140 | 140,00 | 50 | 140,00 | 2,500 | 144,000 | 142,600 |
| SB 143 | 140,00 | 50 | 143,00 | 2,500 | 147,000 | 145,600 |
| SB 150 | 145,00 | 50 | 150,00 | 2,500 | 154,100 | 152,600 |
| SB 153 | 150,00 | 50 | 153,00 | 2,500 | 157,100 | 155,600 |
| SB 160 | 160,00 | 50 | 160,00 | 2,500 | 164,200 | 162,600 |
| SB 163 | 170,00 | 50 | 163,00 | 2,500 | 167,200 | 165,600 |
| SB 165 | 180,00 | 50 | 165,00 | 2,500 | 169,200 | 167,600 |
| SB 170 | 185,00 | 50 | 170,00 | 2,500 | 174,300 | 172,600 |
| SB 173 | 190,00 | 50 | 173,00 | 2,500 | 177,300 | 175,600 |
| SB 175 | 190,00 | 50 | 175,00 | 2,500 | 179,300 | 177,600 |
| SB 180 | 190,00 | 50 | 180,00 | 2,500 | 184,500 | 182,600 |
| SB 183 | 200,00 | 50 | 183,00 | 2,500 | 187,500 | 185,600 |
| SB 190 | 250,00 | 25 | 190,00 | 3,000 | 194,900 | 193,000 |
| SB 195 | 260,00 | 25 | 195,00 | 3,000 | 199,900 | 198,000 |
| SB 200 | 270,00 | 25 | 200,00 | 3,000 | 205,000 | 203,000 |
| SB 205 | 280,00 | 25 | 205,00 | 3,000 | 210,000 | 208,000 |
| SB 210 | 290,00 | 25 | 210,00 | 3,000 | 215,100 | 213,000 |
| SB 215 | 300,00 | 25 | 215,00 | 3,000 | 220,100 | 218,000 |
| SB 220 | 310,00 | 25 | 220,00 | 3,000 | 225,200 | 223,000 |
| SB 225 | 320,00 | 25 | 225,00 | 3,000 | 230,200 | 228,000 |
| SB 230 | 350,00 | 25 | 230,00 | 3,000 | 235,300 | 233,000 |
| SB 240 | 400,00 | 25 | 240,00 | 3,000 | 245,400 | 243,000 |
| SB 250 | 500,00 | 25 | 250,00 | 3,000 | 255,500 | 253,000 |
| SB 260 | 800,00 | 25 | 260,00 | 4,000 | 267,600 | 265,000 |
| SB 270 | 900,00 | 25 | 270,00 | 4,000 | 277,700 | 275,000 |
| SB 280 | 1.000,00 | 25 | 280,00 | 4,000 | 287,800 | 285,000 |
| SB 290 | 1.100,00 | 25 | 290,00 | 4,000 | 297,900 | 295,000 |
| SB 300 | 1.200,00 | 25 | 300,00 | 4,000 | 307,900 | 305,000 |
| SB 310 | 1.400,00 | 25 | 310,00 | 4,000 | 318,000 | 315,000 |
| SB 320 | 1.600,00 | 25 | 320,00 | 4,000 | 328,100 | 325,000 |
| SB 325 | 1.800,00 | 25 | 325,00 | 4,000 | 333,100 | 330,000 |
| SB 330 | 2.000,00 | 25 | 330,00 | 4,000 | 338,200 | 335,000 |
| SB 340 | 2.100,00 | 25 | 340,00 | 4,000 | 348,300 | 345,000 |
| SB 350 | 2.200,00 | 25 | 350,00 | 4,000 | 358,400 | 355,000 |
| SB 355 | on demand | 25 | 355,00 | 4,000 | 363,400 | 360,000 |
| SB 360 | 2.300,00 | 25 | 360,00 | 4,000 | 368,500 | 365,000 |
| SB 370 | 2.400,00 | 25 | 370,00 | 4,000 | 378,500 | 375,000 |
| SB 375 | 2.500,00 | 25 | 375,00 | 4,000 | 383,500 | 380,000 |
| SB 380 | 2.600,00 | 25 | 380,00 | 4,000 | 388,600 | 385,000 |
| SB 390 | 2.700,00 | 25 | 390,00 | 4,000 | 398,700 | 395,000 |
| SB 395 | on demand | 25 | 395,00 | 4,000 | 403,700 | 400,000 |
| SB 400 | 2.800,00 | 25 | 400,00 | 4,000 | 408,900 | 405,000 |
| SB 410 | 3.000,00 | 25 | 410,00 | 4,000 | 419,000 | 415,000 |
| SB 415 | 3.300,00 | 25 | 415,00 | 4,000 | 424,000 | 420,000 |
| SB 420 | 3.600,00 | 25 | 420,00 | 4,000 | 429,100 | 425,000 |
| SB 430 | 3.800,00 | 25 | 430,00 | 4,000 | 439,200 | 435,000 |
| SB 440 | 4.000,00 | 25 | 440,00 | 4,000 | 449,300 | 445,000 |
