Available materials: Acciaio Zincato Inox Bronzo
Rings TYPE A for shafts
DIN 471
ex UNI 3653-7435
DIN 471
ex UNI 3653-7435
Material: Carbon steel
Hardness:
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type A 25

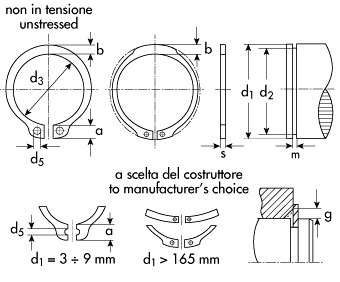

d1=shaft diameter
d2=grove diameter
d3=ring diameter in the unstressed state
s=thickness
= Prior to sale AA = esecuzione a due fori
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| A 3 | 0,90 | 10.000 | 3,00 | 0,400 | 2,700 | 2,800 |
| A 4 | 0,90 | 10.000 | 4,00 | 0,400 | 3,700 | 3,800 |
| A 5 | 0,95 | 5.000 | 5,00 | 0,600 | 4,700 | 4,800 |
| AA 5 | 1,20 | 5.000 | 5,00 | 0,600 | 4,700 | 4,800 |
| A 6 | 1,00 | 5.000 | 6,00 | 0,700 | 5,600 | 5,700 |
| AA 6 | 1,40 | 5.000 | 6,00 | 0,700 | 5,600 | 5,700 |
| A 7 | 1,20 | 2.500 | 7,00 | 0,800 | 6,500 | 6,700 |
| AA 7 | 1,60 | 2.500 | 7,00 | 0,800 | 6,500 | 6,700 |
| A 8 | 1,40 | 2.000 | 8,00 | 0,800 | 7,400 | 7,600 |
| AA 8 | 2,00 | 2.000 | 8,00 | 0,800 | 7,400 | 7,600 |
| A 9 | 1,60 | 2.000 | 9,00 | 1,000 | 8,400 | 8,600 |
| AA 9 | 2,20 | 2.000 | 9,00 | 1,000 | 8,400 | 8,600 |
| A 10 | 1,80 | 2.000 | 10,00 | 1,000 | 9,300 | 9,600 |
| A 11 | 1,90 | 1.000 | 11,00 | 1,000 | 10,200 | 10,500 |
| A 12 | 2,00 | 1.000 | 12,00 | 1,000 | 11,000 | 11,500 |
| A 13 | 2,10 | 1.000 | 13,00 | 1,000 | 11,900 | 12,400 |
| A 14 | 2,30 | 1.000 | 14,00 | 1,000 | 12,900 | 13,400 |
| A 15 | 2,50 | 1.000 | 15,00 | 1,000 | 13,800 | 14,300 |
| A 16 | 2,70 | 1.000 | 16,00 | 1,000 | 14,700 | 15,200 |
| A 17 | 3,00 | 1.000 | 17,00 | 1,000 | 15,700 | 16,200 |
| A 18 | 3,50 | 1.000 | 18,00 | 1,200 | 16,500 | 17,000 |
| A 19 | 4,00 | 1.000 | 19,00 | 1,200 | 17,500 | 18,000 |
| A 20 | 4,50 | 1.000 | 20,00 | 1,200 | 18,500 | 19,000 |
| A 21 | 5,00 | 1.000 | 21,00 | 1,200 | 19,500 | 20,000 |
| A 22 | 5,50 | 500 | 22,00 | 1,200 | 20,500 | 21,000 |
| A 23 | 6,00 | 500 | 23,00 | 1,200 | 21,500 | 22,000 |
| A 24 | 6,50 | 500 | 24,00 | 1,200 | 22,200 | 22,900 |
| A 25 | 7,00 | 500 | 25,00 | 1,200 | 23,200 | 23,900 |
| A 26 | 7,50 | 500 | 26,00 | 1,200 | 24,200 | 24,900 |
| A 27 | 8,00 | 500 | 27,00 | 1,200 | 24,900 | 25,600 |
| A 28 | 9,00 | 500 | 28,00 | 1,500 | 25,900 | 26,600 |
| A 29 | 10,00 | 500 | 29,00 | 1,500 | 26,900 | 27,600 |
| A 30 | 11,00 | 250 | 30,00 | 1,500 | 27,900 | 28,600 |
| A 31 | 12,00 | 250 | 31,00 | 1,500 | 28,600 | 29,300 |
| A 32 | 13,00 | 250 | 32,00 | 1,500 | 29,600 | 30,300 |
| A 33 | 14,00 | 250 | 33,00 | 1,500 | 30,500 | 31,300 |
| A 34 | 15,00 | 250 | 34,00 | 1,500 | 31,500 | 32,300 |
| A 35 | 16,00 | 250 | 35,00 | 1,500 | 32,200 | 33,000 |
| A 36 | 17,00 | 250 | 36,00 | 1,750 | 33,200 | 34,000 |
| A 37 | 18,00 | 250 | 37,00 | 1,750 | 34,200 | 35,000 |
| A 38 | 19,00 | 250 | 38,00 | 1,750 | 35,200 | 36,000 |
| A 39 | 19,00 | 200 | 39,00 | 1,750 | 36,000 | 37,000 |
| A 40 | 20,00 | 100 | 40,00 | 1,750 | 36,500 | 37,500 |
| A 41 | 21,00 | 100 | 41,00 | 1,750 | 37,500 | 38,500 |
| A 42 | 22,00 | 100 | 42,00 | 1,750 | 38,500 | 39,500 |
| A 44 | 23,00 | 100 | 44,00 | 1,750 | 40,500 | 41,500 |
| A 45 | 24,00 | 100 | 45,00 | 1,750 | 41,500 | 42,500 |
| A 46 | 25,00 | 100 | 46,00 | 1,750 | 42,500 | 43,500 |
| A 47 | 26,00 | 100 | 47,00 | 1,750 | 43,500 | 44,500 |
| A 48 | 27,00 | 100 | 48,00 | 1,750 | 44,500 | 45,500 |
| A 50 | 28,00 | 100 | 50,00 | 2,000 | 45,800 | 47,000 |
| A 52 | 29,00 | 100 | 52,00 | 2,000 | 47,800 | 49,000 |
| A 54 | 30,00 | 100 | 54,00 | 2,000 | 49,800 | 51,000 |
| A 55 | 31,00 | 100 | 55,00 | 2,000 | 50,800 | 52,000 |
| A 56 | 32,00 | 100 | 56,00 | 2,000 | 51,800 | 53,000 |
| A 57 | 33,00 | 100 | 57,00 | 2,000 | 52,800 | 54,000 |
| A 58 | 34,00 | 100 | 58,00 | 2,000 | 53,800 | 55,000 |
| A 60 | 35,00 | 100 | 60,00 | 2,000 | 55,800 | 57,000 |
| A 62 | 36,00 | 100 | 62,00 | 2,000 | 57,800 | 59,000 |
| A 63 | 38,00 | 100 | 63,00 | 2,000 | 58,800 | 60,000 |
| A 65 | 48,00 | 50 | 65,00 | 2,500 | 60,800 | 62,000 |
| A 67 | 50,00 | 50 | 67,00 | 2,500 | 62,500 | 64,000 |
| A 68 | 52,00 | 50 | 68,00 | 2,500 | 63,500 | 65,000 |
| A 70 | 54,00 | 50 | 70,00 | 2,500 | 65,500 | 67,000 |
| A 72 | 56,00 | 50 | 72,00 | 2,500 | 67,500 | 69,000 |
| A 75 | 58,00 | 50 | 75,00 | 2,500 | 70,500 | 72,000 |
| A 77 | on demand | 50 | 77,00 | 2,500 | 72,500 | 74,000 |
| A 78 | 60,00 | 50 | 78,00 | 2,500 | 73,500 | 75,000 |
| A 80 | 62,00 | 50 | 80,00 | 2,500 | 74,500 | 76,500 |
| A 82 | 80,00 | 50 | 82,00 | 2,500 | 76,500 | 78,500 |
| A 85 | 85,00 | 50 | 85,00 | 3,000 | 79,500 | 81,500 |
| A 87 | 300,00 | 50 | 87,00 | 3,000 | 81,500 | 83,500 |
| A 88 | 90,00 | 50 | 88,00 | 3,000 | 82,500 | 84,500 |
| A 90 | 95,00 | 50 | 90,00 | 3,000 | 84,500 | 86,500 |
| A 92 | 100,00 | 50 | 92,00 | 3,000 | 86,500 | 88,500 |
| A 95 | 105,00 | 50 | 95,00 | 3,000 | 89,500 | 91,500 |
| A 97 | 110,00 | 50 | 97,00 | 3,000 | 91,500 | 93,500 |
| (A 98) | - | 50 | 98,00 | 3,000 | 91,500 | 94,500 |
| A 100 | 115,00 | 50 | 100,00 | 3,000 | 94,500 | 96,500 |
| A 102 | 200,00 | 25 | 102,00 | 4,000 | 95,000 | 98,000 |
| A 105 | 210,00 | 25 | 105,00 | 4,000 | 98,000 | 101,000 |
| A 107 | 300,00 | 25 | 107,00 | 4,000 | 100,000 | 103,000 |
| (A 108) | - | 25 | 108,00 | 4,000 | 100,000 | 104,000 |
| A 110 | 220,00 | 25 | 110,00 | 4,000 | 103,000 | 106,000 |
| A 112 | 300,00 | 25 | 112,00 | 4,000 | 105,000 | 108,000 |
| A 115 | 230,00 | 25 | 115,00 | 4,000 | 108,000 | 111,000 |
| A 117 | 600,00 | 25 | 117,00 | 4,000 | 110,000 | 113,000 |
| (A 118) | - | 25 | 118,00 | 4,000 | 110,000 | 114,000 |
| A 120 | 250,00 | 25 | 120,00 | 4,000 | 113,000 | 116,000 |
| A 122 | on demand | 25 | 122,00 | 4,000 | 115,000 | 118,000 |
| A 125 | 260,00 | 25 | 125,00 | 4,000 | 118,000 | 121,000 |
| A 127 | 270,00 | 25 | 127,00 | 4,000 | 120,000 | 123,000 |
| (A 128) | - | 25 | 128,00 | 4,000 | 120,000 | 124,000 |
| A 130 | 280,00 | 25 | 130,00 | 4,000 | 123,000 | 126,000 |
| A 132 | 600,00 | 25 | 132,00 | 4,000 | 125,000 | 128,000 |
| A 135 | 300,00 | 25 | 135,00 | 4,000 | 128,000 | 131,000 |
| A 137 | on demand | 25 | 137,00 | 4,000 | 130,000 | 133,000 |
| (A 138) | - | 25 | 138,00 | 4,000 | 130,000 | 134,000 |
| A 140 | 320,00 | 25 | 140,00 | 4,000 | 133,000 | 136,000 |
| A 142 | on demand | 25 | 142,00 | 4,000 | 135,000 | 138,000 |
| A 145 | 340,00 | 25 | 145,00 | 4,000 | 138,000 | 141,000 |
| A 147 | 800,00 | 25 | 147,00 | 4,000 | 140,000 | 143,000 |
| (A 148) | - | 25 | 148,00 | 4,000 | 140,000 | 144,000 |
| A 150 | 360,00 | 25 | 150,00 | 4,000 | 142,000 | 145,000 |
| A 152 | 900,00 | 25 | 152,00 | 4,000 | 143,000 | 147,000 |
| A 155 | 380,00 | 25 | 155,00 | 4,000 | 146,000 | 150,000 |
| A 157 | on demand | 25 | 157,00 | 4,000 | 148,000 | 152,000 |
| (A 158) | - | 25 | 158,00 | 4,000 | 148,000 | 153,000 |
| A 160 | 400,00 | 25 | 160,00 | 4,000 | 151,000 | 155,000 |
| A 162 | 1.000,00 | 25 | 162,00 | 4,000 | 152,500 | 157,000 |
| A 165 | 450,00 | 25 | 165,00 | 4,000 | 155,500 | 160,000 |
| A 167 | on demand | 25 | 167,00 | 4,000 | 157,500 | 162,000 |
| (A 168) | - | 25 | 168,00 | 4,000 | 157,500 | 163,000 |
| A 170 | 480,00 | 25 | 170,00 | 4,000 | 160,500 | 165,000 |
| (A 172) | - | 25 | 172,00 | 4,000 | 160,500 | 167,000 |
| A 175 | 520,00 | 25 | 175,00 | 4,000 | 165,500 | 170,000 |
| (A 178) | - | 25 | 178,00 | 4,000 | 167,500 | 173,000 |
| A 180 | 560,00 | 25 | 180,00 | 4,000 | 170,400 | 175,000 |
| (A 182) | - | 25 | 182,00 | 4,000 | 170,500 | 177,000 |
| A 185 | 600,00 | 25 | 185,00 | 4,000 | 175,500 | 180,000 |
| A 187 | 1.500,00 | 25 | 187,00 | 4,000 | 177,500 | 182,000 |
| (A 188) | - | 25 | 188,00 | 4,000 | 177,500 | 183,000 |
| A 190 | 650,00 | 25 | 190,00 | 4,000 | 180,500 | 185,000 |
| (A 192) | - | 25 | 192,00 | 4,000 | 180,500 | 187,000 |
| A 195 | 700,00 | 25 | 195,00 | 4,000 | 185,500 | 190,000 |
| A 197 | on demand | 25 | 197,00 | 4,000 | 187,500 | 192,000 |
| (A 198) | - | 25 | 198,00 | 4,000 | 187,500 | 193,000 |
| A 200 | 750,00 | 25 | 200,00 | 4,000 | 190,500 | 195,000 |
| A 202 | on demand | 25 | 202,00 | 5,000 | 190,000 | 196,000 |
| A 205 | 1.550,00 | 25 | 205,00 | 5,000 | 193,000 | 199,000 |
| (A 207) | - | 25 | 207,00 | 5,000 | 193,000 | 201,000 |
| (A 208) | - | 25 | 208,00 | 5,000 | 193,000 | 202,000 |
| A 210 | 1.600,00 | 25 | 210,00 | 5,000 | 198,000 | 204,000 |
| (A 212) | - | 25 | 212,00 | 5,000 | 198,000 | 206,000 |
| A 215 | 1.650,00 | 25 | 215,00 | 5,000 | 203,000 | 209,000 |
| (A 217) | - | 25 | 217,00 | 5,000 | 203,000 | 211,000 |
| (A 218) | - | 25 | 218,00 | 5,000 | 203,000 | 212,000 |
| A 220 | 1.700,00 | 25 | 220,00 | 5,000 | 208,000 | 214,000 |
| (A 222) | - | 25 | 222,00 | 5,000 | 208,000 | 216,000 |
| A 225 | 1.750,00 | 25 | 225,00 | 5,000 | 213,000 | 219,000 |
| (A 227) | - | 25 | 227,00 | 5,000 | 213,000 | 221,000 |
| (A 228) | - | 25 | 228,00 | 5,000 | 213,000 | 222,000 |
| A 230 | 1.800,00 | 25 | 230,00 | 5,000 | 218,000 | 224,000 |
| (A 232) | - | 25 | 232,00 | 5,000 | 218,000 | 226,000 |
| A 235 | 1.850,00 | 25 | 235,00 | 5,000 | 223,000 | 229,000 |
| (A 237) | - | 25 | 237,00 | 5,000 | 223,000 | 231,000 |
| (A 238) | - | 25 | 238,00 | 5,000 | 223,000 | 232,000 |
| A 240 | 1.900,00 | 25 | 240,00 | 5,000 | 228,000 | 234,000 |
| (A 242) | - | 25 | 242,00 | 5,000 | 228,000 | 236,000 |
| A 245 | 1.950,00 | 25 | 245,00 | 5,000 | 233,000 | 239,000 |
| (A 247) | - | 25 | 247,00 | 5,000 | 233,000 | 241,000 |
| (A 248) | - | 25 | 248,00 | 5,000 | 233,000 | 242,000 |
| A 250 | 2.000,00 | 25 | 250,00 | 5,000 | 238,000 | 244,000 |
| (A 252) | - | 25 | 252,00 | 5,000 | 238,000 | 244,000 |
| A 255 | 2.050,00 | 25 | 255,00 | 5,000 | 240,000 | 247,000 |
| (A 257) | - | 25 | 257,00 | 5,000 | 240,000 | 249,000 |
| (A 258) | - | 25 | 258,00 | 5,000 | 240,000 | 250,000 |
| A 260 | 2.100,00 | 25 | 260,00 | 5,000 | 245,000 | 252,000 |
| (A 262) | - | 25 | 262,00 | 5,000 | 245,000 | 254,000 |
| A 265 | 2.150,00 | 25 | 265,00 | 5,000 | 250,000 | 257,000 |
| (A 267) | - | 25 | 267,00 | 5,000 | 250,000 | 259,000 |
| (A 268) | - | 25 | 268,00 | 5,000 | 250,000 | 260,000 |
| A 270 | 2.200,00 | 25 | 270,00 | 5,000 | 255,000 | 262,000 |
| (A 272) | - | 25 | 272,00 | 5,000 | 255,000 | 264,000 |
| A 275 | 2.250,00 | 25 | 275,00 | 5,000 | 260,000 | 267,000 |
| (A 277) | - | 25 | 277,00 | 5,000 | 260,000 | 269,000 |
| (A 278) | - | 25 | 278,00 | 5,000 | 260,000 | 270,000 |
| A 280 | 2.300,00 | 25 | 280,00 | 5,000 | 265,000 | 272,000 |
| (A 282) | - | 25 | 282,00 | 5,000 | 265,000 | 274,000 |
| A 285 | 2.350,00 | 25 | 285,00 | 5,000 | 270,000 | 277,000 |
| (A 287) | - | 25 | 287,00 | 5,000 | 270,000 | 279,000 |
| (A 288) | - | 25 | 288,00 | 5,000 | 270,000 | 280,000 |
| A 290 | 2.400,00 | 25 | 290,00 | 5,000 | 275,000 | 282,000 |
| (A 292) | - | 25 | 292,00 | 5,000 | 275,000 | 284,000 |
| A 295 | 2.450,00 | 25 | 295,00 | 5,000 | 280,000 | 287,000 |
| (A 297) | - | 25 | 297,00 | 5,000 | 280,000 | 289,000 |
| (A 298) | - | 25 | 298,00 | 5,000 | 280,000 | 290,000 |
| A 300 | 2.500,00 | 25 | 300,00 | 5,000 | 285,000 | 292,000 |
| A 305 | 15.000,00 | - | 305,00 | 6,000 | 288,000 | 295,000 |
| A 310 | 5.000,00 | - | 310,00 | 6,000 | 293,000 | 300,000 |
| A 315 | 6.000,00 | - | 315,00 | 6,000 | 298,000 | 305,000 |
| A 320 | 7.000,00 | - | 320,00 | 6,000 | 303,000 | 310,000 |
| A 325 | on demand | - | 325,00 | 6,000 | 308,000 | 315,000 |
| A 330 | 8.000,00 | - | 330,00 | 6,000 | 313,000 | 320,000 |
| A 335 | 20.000,00 | - | 335,00 | 6,000 | 318,000 | 325,000 |
| A 340 | 9.000,00 | - | 340,00 | 6,000 | 323,000 | 330,000 |
| A 345 | 25.000,00 | - | 345,00 | 6,000 | 328,000 | 335,000 |
| A 350 | 10.000,00 | - | 350,00 | 6,000 | 333,000 | 340,000 |
| A 355 | on demand | - | 355,00 | 6,000 | 338,000 | 345,000 |
| A 360 | 11.000,00 | - | 360,00 | 6,000 | 343,000 | 350,000 |
| A 365 | 12.000,00 | - | 365,00 | 6,000 | 348,000 | 355,000 |
| A 370 | 15.000,00 | - | 370,00 | 6,000 | 353,000 | 360,000 |
| A 375 | on demand | - | 375,00 | 6,000 | 358,000 | 365,000 |
| A 380 | 16.000,00 | - | 380,00 | 6,000 | 363,000 | 370,000 |
| A 385 | 30.000,00 | - | 385,00 | 6,000 | 368,000 | 375,000 |
| A 390 | 18.000,00 | - | 390,00 | 6,000 | 373,000 | 380,000 |
| A 395 | 35.000,00 | - | 395,00 | 6,000 | 378,000 | 385,000 |
| A 400 | 20.000,00 | - | 400,00 | 6,000 | 383,000 | 390,000 |
| A 410 | 22.000,00 | - | 410,00 | 7,000 | 390,000 | 398,000 |
| A 420 | 24.000,00 | - | 420,00 | 7,000 | 400,000 | 408,000 |
| A 430 | 27.000,00 | - | 430,00 | 7,000 | 410,000 | 418,000 |
| A 440 | 30.000,00 | - | 440,00 | 7,000 | 420,000 | 428,000 |
| A 450 | 35.000,00 | - | 450,00 | 7,000 | 430,000 | 438,000 |
| A 460 | 40.000,00 | - | 460,00 | 7,000 | 440,000 | 448,000 |
| A 470 | 45.000,00 | - | 470,00 | 7,000 | 450,000 | 458,000 |
| A 480 | 45.000,00 | - | 480,00 | 7,000 | 460,000 | 468,000 |
| A 490 | 50.000,00 | - | 490,00 | 7,000 | 470,000 | 478,000 |
| A 500 | 55.000,00 | - | 500,00 | 7,000 | 480,000 | 488,000 |
| A 510 | on demand | - | 510,00 | 8,000 | 485,000 | 496,000 |
| A 520 | 60.000,00 | - | 520,00 | 8,000 | 495,000 | 506,000 |
| A 530 | on demand | - | 530,00 | 8,000 | 505,000 | 516,000 |
| A 540 | on demand | - | 540,00 | 8,000 | 515,000 | 526,000 |
| A 550 | 80.000,00 | - | 550,00 | 8,000 | 525,000 | 536,000 |
| A 560 | 90.000,00 | - | 560,00 | 8,000 | 535,000 | 546,000 |
| A 570 | on demand | - | 570,00 | 8,000 | 545,000 | 556,000 |
| A 580 | on demand | - | 580,00 | 8,000 | 555,000 | 566,000 |
| A 590 | on demand | - | 590,00 | 8,000 | 565,000 | 576,000 |
| A 600 | 100.000,00 | - | 600,00 | 8,000 | 575,000 | 586,000 |
| A 650 | 120.000,00 | - | 650,00 | 9,000 | 620,000 | 634,000 |
| A 700 | on demand | - | 700,00 | 9,000 | 670,000 | 684,000 |
| A 750 | on demand | - | 750,00 | 9,000 | 715,000 | 684,000 |
| A 800 | on demand | - | 800,00 | 9,000 | 765,000 | 782,000 |
| A 850 | on demand | - | 850,00 | 9,000 | 810,000 | 830,000 |
| A 900 | on demand | - | 900,00 | 9,000 | 860,000 | 880,000 |
| A 950 | on demand | - | 950,00 | 9,000 | 900,000 | 928,000 |
| A 1000 | on demand | - | 1000,00 | 9,000 | 950,000 | 978,000 |
