Available materials: Steel Zinc Plated Stainless steel Bronze
Rings TYPE A for shafts
DIN 471
ex UNI 3653-7435
DIN 471
ex UNI 3653-7435
Material: Carbon steel
SURFACE TREATMENT
Zinc plated
Hardness:
Example of designation:
ring type A 25 ZINC PLATED

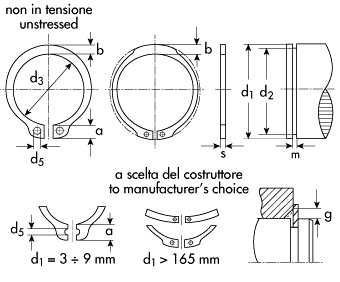

d1=shaft diameter
d2=grove diameter
d3=ring diameter in the unstressed state
s=thickness
* AA= two holes execution
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| A 3 ZINCATI | 2,50 | 10.000 | 3,00 | 0,400 | 2,700 | 2,800 |
| A 4 ZINCATI | 2,70 | 10.000 | 4,00 | 0,400 | 3,700 | 3,800 |
| A 5 ZINCATI | 3,00 | 5.000 | 5,00 | 0,600 | 4,700 | 4,800 |
| AA 5 ZINCATI | 3,00 | 5.000 | 5,00 | 0,600 | 4,700 | 4,800 |
| A 6 ZINCATI | 3,50 | 5.000 | 6,00 | 0,700 | 5,600 | 5,700 |
| AA 6 ZINCATI | 3,50 | 5.000 | 6,00 | 0,700 | 5,600 | 5,700 |
| A 7 ZINCATI | 4,00 | 2.500 | 7,00 | 0,800 | 6,500 | 6,700 |
| AA 7 ZINCATI | on demand | - | 7,00 | 0,800 | 6,500 | 6,700 |
| A 8 ZINCATI | 4,50 | 2.000 | 8,00 | 0,800 | 7,400 | 7,600 |
| AA 8 ZINCATI | 4,50 | 2.000 | 8,00 | 0,800 | 7,400 | 7,600 |
| A 9 ZINCATI | 5,00 | 2.000 | 9,00 | 1,000 | 8,400 | 8,600 |
| AA 9 ZINCATI | 5,00 | 2.000 | 9,00 | 1,000 | 8,400 | 8,600 |
| A 10 ZINCATI | 5,50 | 2.000 | 10,00 | 1,000 | 9,300 | 9,600 |
| A 11 ZINCATI | 6,00 | 1.000 | 11,00 | 1,000 | 10,200 | 10,500 |
| A 12 ZINCATI | 6,50 | 1.000 | 12,00 | 1,000 | 11,000 | 11,500 |
| A 13 ZINCATI | 7,00 | 1.000 | 13,00 | 1,000 | 11,900 | 12,400 |
| A 14 ZINCATI | 7,50 | 1.000 | 14,00 | 1,000 | 12,900 | 13,400 |
| A 15 ZINCATI | 8,00 | 1.000 | 15,00 | 1,000 | 13,800 | 14,300 |
| A 16 ZINCATI | 8,50 | 1.000 | 16,00 | 1,000 | 14,700 | 15,200 |
| A 17 ZINCATI | 9,00 | 1.000 | 17,00 | 1,000 | 15,700 | 16,200 |
| A 18 ZINCATI | 9,50 | 1.000 | 18,00 | 1,200 | 16,500 | 17,000 |
| A 19 ZINCATI | 10,00 | 1.000 | 19,00 | 1,200 | 17,500 | 18,000 |
| A 20 ZINCATI | 11,00 | 1.000 | 20,00 | 1,200 | 18,500 | 19,000 |
| A 21 ZINCATI | 12,00 | 1.000 | 21,00 | 1,200 | 19,500 | 20,000 |
| A 22 ZINCATI | 13,00 | 500 | 22,00 | 1,200 | 20,500 | 21,000 |
| A 23 ZINCATI | on demand | 500 | 23,00 | 1,200 | 21,500 | 22,000 |
| A 24 ZINCATI | 15,00 | 500 | 24,00 | 1,200 | 22,200 | 22,900 |
| A 25 ZINCATI | 17,00 | 500 | 25,00 | 1,200 | 23,200 | 23,900 |
| A 26 ZINCATI | 20,00 | 500 | 26,00 | 1,200 | 24,200 | 24,900 |
| A 27 ZINCATI | 25,00 | 500 | 27,00 | 1,200 | 24,900 | 25,600 |
| A 28 ZINCATI | 30,00 | 500 | 28,00 | 1,500 | 25,900 | 26,600 |
| A 29 ZINCATI | 35,00 | 500 | 29,00 | 1,500 | 26,900 | 27,600 |
| A 30 ZINCATI | 40,00 | 250 | 30,00 | 1,500 | 27,900 | 28,600 |
| A 31 ZINCATI | 45,00 | 250 | 31,00 | 1,500 | 28,600 | 29,300 |
| A 32 ZINCATI | 45,00 | 250 | 32,00 | 1,500 | 29,600 | 30,300 |
| A 33 ZINCATI | 50,00 | 250 | 33,00 | 1,500 | 30,500 | 31,300 |
| A 34 ZINCATI | 50,00 | 250 | 34,00 | 1,500 | 31,500 | 32,300 |
| A 35 ZINCATI | 55,00 | 250 | 35,00 | 1,500 | 32,200 | 33,000 |
| A 36 ZINCATI | 55,00 | 250 | 36,00 | 1,750 | 33,200 | 34,000 |
| A 37 ZINCATI | 60,00 | 250 | 37,00 | 1,750 | 34,200 | 35,000 |
| A 38 ZINCATI | 60,00 | 250 | 38,00 | 1,750 | 35,200 | 36,000 |
| A 39 ZINCATI | 65,00 | 200 | 39,00 | 1,750 | 36,000 | 37,000 |
| A 40 ZINCATI | 70,00 | 100 | 40,00 | 1,750 | 36,500 | 37,500 |
| A 41 ZINCATI | on demand | 100 | 41,00 | 1,750 | 37,500 | 38,500 |
| A 42 ZINCATI | on demand | 100 | 42,00 | 1,750 | 38,500 | 39,500 |
| A 44 ZINCATI | on demand | 100 | 44,00 | 1,750 | 40,500 | 41,500 |
| A 45 ZINCATI | on demand | 100 | 45,00 | 1,750 | 41,500 | 42,500 |
| A 46 ZINCATI | on demand | 100 | 46,00 | 1,750 | 42,500 | 43,500 |
| A 47 ZINCATI | on demand | 100 | 47,00 | 1,750 | 43,500 | 44,500 |
| A 48 ZINCATI | on demand | 100 | 48,00 | 1,750 | 44,500 | 45,500 |
| A 50 ZINCATI | 100,00 | 100 | 50,00 | 2,000 | 45,800 | 47,000 |
| A 52 ZINCATI | on demand | 100 | 52,00 | 2,000 | 47,800 | 49,000 |
| A 54 ZINCATI | on demand | 100 | 54,00 | 2,000 | 49,800 | 51,000 |
| A 55 ZINCATI | on demand | 100 | 55,00 | 2,000 | 50,800 | 52,000 |
| A 56 ZINCATI | on demand | 100 | 56,00 | 2,000 | 51,800 | 53,000 |
| A 57 ZINCATI | on demand | 100 | 57,00 | 2,000 | 52,800 | 54,000 |
| A 58 ZINCATI | on demand | 100 | 58,00 | 2,000 | 53,800 | 55,000 |
| A 60 ZINCATI | 130,00 | 100 | 60,00 | 2,000 | 55,800 | 57,000 |
| A 62 ZINCATI | on demand | 100 | 62,00 | 2,000 | 57,800 | 59,000 |
| A 63 ZINCATI | on demand | 100 | 63,00 | 2,000 | 58,800 | 60,000 |
| A 65 ZINCATI | on demand | 50 | 65,00 | 2,500 | 60,800 | 62,000 |
| A 67 ZINCATI | on demand | 50 | 67,00 | 2,500 | 62,500 | 64,000 |
| A 68 ZINCATI | on demand | 50 | 68,00 | 2,500 | 63,500 | 65,000 |
| A 70 ZINCATI | on demand | 50 | 70,00 | 2,500 | 65,500 | 67,000 |
| A 72 ZINCATI | on demand | 50 | 72,00 | 2,500 | 67,500 | 69,000 |
| A 75 ZINCATI | on demand | 50 | 75,00 | 2,500 | 70,500 | 72,000 |
| A 77 ZINCATI | on demand | 50 | 77,00 | 2,500 | 72,500 | 74,000 |
| A 78 ZINCATI | on demand | 50 | 78,00 | 2,500 | 73,500 | 75,000 |
| A 80 ZINCATI | on demand | 50 | 80,00 | 2,500 | 74,500 | 76,500 |
| A 82 ZINCATI | on demand | 50 | 82,00 | 2,500 | 76,500 | 78,500 |
| A 85 ZINCATI | on demand | 50 | 85,00 | 3,000 | 79,500 | 81,500 |
| A 87 ZINCATI | on demand | 50 | 87,00 | 3,000 | 81,500 | 83,500 |
| A 88 ZINCATI | on demand | 50 | 88,00 | 3,000 | 82,500 | 84,500 |
| A 90 ZINCATI | on demand | 50 | 90,00 | 3,000 | 84,500 | 86,500 |
| A 92 ZINCATI | on demand | 50 | 92,00 | 3,000 | 86,500 | 88,500 |
| A 95 ZINCATI | on demand | 50 | 95,00 | 3,000 | 89,500 | 91,500 |
| A 97 ZINCATI | on demand | 50 | 97,00 | 3,000 | 91,500 | 93,500 |
