Available materials: Steel Stainless steel
Rings TYPE AK for shafts
DIN 983
DIN 983
Material:Carbon steel
Hardness:
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type AK 30

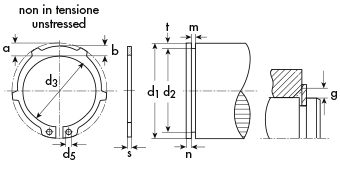

d1=shaft diameter
d2=grove diameter
d3=ring diameter in the understress state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| AK 16 | 12,00 | 1.000 | 16,00 | 1,000 | 14,700 | 15,200 |
| AK 17 | 12,00 | 1.000 | 17,00 | 1,000 | 15,700 | 16,200 |
| AK 18 | 12,00 | 1.000 | 18,00 | 1,200 | 16,500 | 17,000 |
| AK 19 | on demand | 1.000 | 19,00 | 1,200 | 17,500 | 18,000 |
| AK 20 | 12,00 | 1.000 | 20,00 | 1,200 | 18,500 | 19,000 |
| AK 22 | 13,00 | 500 | 22,00 | 1,200 | 20,500 | 21,000 |
| AK 23 | 14,00 | 500 | 23,00 | 1,200 | 21,500 | 22,000 |
| AK 24 | 15,00 | 500 | 24,00 | 1,200 | 22,200 | 22,900 |
| AK 25 | 16,00 | 500 | 25,00 | 1,200 | 23,200 | 23,900 |
| AK 26 | 18,00 | 500 | 26,00 | 1,200 | 24,200 | 24,900 |
| AK 28 | 20,00 | 500 | 28,00 | 1,500 | 25,900 | 26,600 |
| AK 29 | on demand | - | 29,00 | 1,500 | 26,900 | 27,600 |
| AK 30 | 22,00 | 250 | 30,00 | 1,500 | 27,900 | 28,600 |
| AK 32 | 24,00 | 250 | 32,00 | 1,500 | 29,600 | 30,300 |
| AK 34 | on demand | - | 34,00 | 1,500 | 31,500 | 32,300 |
| AK 35 | 27,00 | 250 | 35,00 | 1,500 | 32,200 | 33,000 |
| AK 37 | on demand | 250 | 37,00 | 1,750 | 34,200 | 35,000 |
| AK 38 | 40,00 | 250 | 38,00 | 1,750 | 35,200 | 36,000 |
| AK 40 | 45,00 | 100 | 40,00 | 1,750 | 36,500 | 37,500 |
| AK 42 | 50,00 | 100 | 42,00 | 1,750 | 38,500 | 39,500 |
| AK 45 | 55,00 | 100 | 45,00 | 1,750 | 41,500 | 42,500 |
| AK 47 | on demand | - | 47,00 | 1,750 | 43,500 | 44,500 |
| AK 48 | 60,00 | 100 | 48,00 | 1,750 | 44,500 | 45,500 |
| AK 50 | 65,00 | 100 | 50,00 | 2,000 | 45,800 | 47,000 |
| AK 55 | 70,00 | 100 | 55,00 | 2,000 | 50,800 | 52,000 |
| AK 57 | on demand | - | 57,00 | 2,000 | 52,800 | 54,000 |
| AK 58 | 90,00 | 100 | 58,00 | 2,000 | 53,800 | 55,000 |
| AK 60 | 100,00 | 100 | 60,00 | 2,000 | 55,800 | 57,000 |
| AK 62 | 130,00 | 100 | 62,00 | 2,000 | 57,800 | 59,000 |
| AK 65 | 150,00 | 50 | 65,00 | 2,500 | 60,800 | 62,000 |
| AK 67 | on demand | - | 67,00 | 2,500 | 62,500 | 64,000 |
| AK 68 | 170,00 | 50 | 68,00 | 2,500 | 63,500 | 65,000 |
| AK 70 | 180,00 | 50 | 70,00 | 2,500 | 65,500 | 67,000 |
| AK 75 | 190,00 | 50 | 75,00 | 2,500 | 70,500 | 72,000 |
| AK 80 | 200,00 | 50 | 80,00 | 2,500 | 74,500 | 76,500 |
| AK 85 | 210,00 | 50 | 85,00 | 3,000 | 79,500 | 81,500 |
| AK 90 | 250,00 | 50 | 90,00 | 3,000 | 84,500 | 86,500 |
| AK 95 | 300,00 | 50 | 95,00 | 3,000 | 89,500 | 91,500 |
| AK 100 | 350,00 | 50 | 100,00 | 3,000 | 94,500 | 96,500 |
| AK 110 | on demand | - | 110,00 | 4,000 | 103,000 | 106,000 |
| AK 120 | 400,00 | 25 | 120,00 | 4,000 | 113,000 | 116,000 |
| AK 130 | on demand | - | 130,00 | 4,000 | 123,000 | 126,000 |
| AK 140 | on demand | - | 140,00 | 4,000 | 133,000 | 136,000 |
