Rings TYPE AM for shafts
DIN 471
ex UNI 3653-7435 Stacked
DIN 471
ex UNI 3653-7435 Stacked
Material: Carbon steel
Hardness:
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type AM 15 IMPILATI

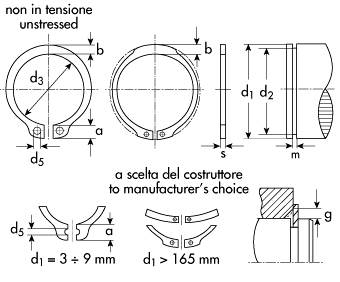

d1=shafts diameter
d2=grove diameter
d3=ring diameter in the unstressed state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| AM 4 impilati | on demand | - | 4,00 | 0,400 | 3,700 | 3,800 |
| AM 5 impilati | on demand | - | 5,00 | 0,600 | 4,700 | 4,800 |
| AM 6 impilati | on demand | - | 6,00 | 0,700 | 5,600 | 5,700 |
| AM 7 impilati | on demand | - | 7,00 | 0,800 | 6,500 | 6,700 |
| AM 8 impilati | on demand | - | 8,00 | 0,800 | 7,400 | 7,600 |
| AM 9 impilati | on demand | - | 9,00 | 1,000 | 8,400 | 8,600 |
| AM 10 impilati | on demand | - | 10,00 | 1,000 | 9,300 | 9,600 |
| AM 11 impilati | on demand | - | 11,00 | 1,000 | 10,200 | 10,500 |
| AM 12 impilati | on demand | - | 12,00 | 1,000 | 11,000 | 11,500 |
| AM 13 impilati | on demand | - | 13,00 | 1,000 | 11,900 | 12,400 |
| AM 14 impilati | on demand | - | 14,00 | 1,000 | 12,900 | 13,400 |
| AM 15 impilati | on demand | - | 15,00 | 1,000 | 13,800 | 14,300 |
| AM 16 impilati | on demand | - | 16,00 | 1,000 | 14,700 | 15,200 |
| AM 17 impilati | on demand | - | 17,00 | 1,000 | 15,700 | 16,200 |
| AM 18 impilati | on demand | - | 18,00 | 1,200 | 16,500 | 17,000 |
| AM 19 impilati | on demand | - | 19,00 | 1,200 | 17,500 | 18,000 |
| AM 20 impilati | on demand | - | 20,00 | 1,200 | 18,500 | 19,000 |
| AM 21 impilati | on demand | - | 21,00 | 1,200 | 19,500 | 20,000 |
| AM 22 impilati | on demand | - | 22,00 | 1,200 | 20,500 | 21,000 |
| AM 23 impilati | on demand | - | 23,00 | 1,200 | 21,500 | 22,000 |
| AM 24 impilati | on demand | - | 24,00 | 1,200 | 22,200 | 22,900 |
| AM 25 impilati | on demand | - | 25,00 | 1,200 | 23,200 | 23,900 |
| AM 26 impilati | on demand | - | 26,00 | 1,200 | 24,200 | 24,900 |
| AM 28 impilati | on demand | - | 28,00 | 1,500 | 25,900 | 26,600 |
| AM 29 impilati | on demand | - | 29,00 | 1,500 | 26,900 | 27,600 |
| AM 30 impilati | on demand | - | 30,00 | 1,500 | 27,900 | 28,600 |
| AM 31 impilati | on demand | - | 31,00 | 1,500 | 28,600 | 29,300 |
| AM 32 impilati | on demand | - | 32,00 | 1,500 | 29,600 | 30,300 |
| AM 34 impilati | on demand | - | 34,00 | 1,500 | 31,500 | 32,300 |
| AM 35 impilati | on demand | - | 35,00 | 1,500 | 32,200 | 33,000 |
| AM 36 impilati | on demand | - | 36,00 | 1,750 | 33,200 | 34,000 |
| AM 37 impilati | on demand | - | 37,00 | 1,750 | 34,200 | 35,000 |
| AM 38 impilati | on demand | - | 38,00 | 1,750 | 35,200 | 36,000 |
| AM 39 impilati | on demand | - | 39,00 | 1,750 | 36,000 | 37,000 |
