Rings TYPE AS for shafts
DIN 471
ex UNI 7436 Heavy duty
DIN 471
ex UNI 7436 Heavy duty
Material: Carbon steel
Hardness:
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type AS 30x2

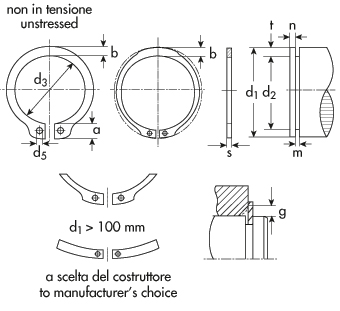

d1=shaft diameter
d2=grove diameter
d3=ring diameter in the unstressed state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| AS 12x1,5 | 1,50 net | 1.000 | 12,00 | 1,500 | 11,000 | 11,500 |
| AS 14x1,2 | on demand | 1.000 | 14,00 | 1,200 | 12,900 | 13,400 |
| AS 15x1,5 | 1,80 net | 1.000 | 15,00 | 1,500 | 13,800 | 14,300 |
| AS 16x1,5 | 8,00 | 1.000 | 16,00 | 1,500 | 14,700 | 15,200 |
| AS 17x1,2 | on demand | 1.000 | 17,00 | 1,200 | 15,700 | 16,200 |
| AS 17x1,5 | 9,00 | 1.000 | 17,00 | 1,500 | 15,700 | 16,200 |
| AS 18x1,5 | 2,00 net | 500 | 18,00 | 1,500 | 16,500 | 17,000 |
| AS 19x1,5 | 10,00 | 500 | 19,00 | 1,500 | 17,500 | 18,000 |
| AS 19x1,75 | 2,30 net | 500 | 19,00 | 1,750 | 17,500 | 18,000 |
| AS 20x1,5 | 1,80 net | 500 | 20,00 | 1,500 | 18,500 | 19,000 |
| AS 20x1,75 | 2,00 net | 500 | 20,00 | 1,750 | 18,500 | 19,000 |
| AS 22X1,75 | 11,00 | 500 | 22,00 | 1,750 | 20,500 | 21,000 |
| AS 24x1,75 | 2,50 net | 500 | 24,00 | 1,750 | 22,200 | 22,900 |
| AS 25x1,5 | on demand | 500 | 25,00 | 1,500 | 23,200 | 23,900 |
| AS 25x2 | 3,00 net | 500 | 25,00 | 2,000 | 23,200 | 23,900 |
| AS 25x2,5 | on demand | 500 | 25,00 | 2,500 | 23,200 | 23,900 |
| AS 26x2 | 25,00 | 500 | 26,00 | 2,000 | 23,600 | 24,400 |
| AS 27x2 | 26,00 | 250 | 27,00 | 2,000 | 24,700 | 25,500 |
| AS 28x2 | 27,00 | 250 | 28,00 | 2,000 | 25,900 | 26,600 |
| AS 29x2 | 4,00 net | 250 | 29,00 | 2,000 | 26,900 | 27,600 |
| AS 30x2 | 29,00 | 250 | 30,00 | 2,000 | 27,900 | 28,600 |
| AS 30X2,5 | on demand | 250 | 30,00 | 2,500 | 27,900 | 28,600 |
| AS 32x2 | 30,00 | 250 | 32,00 | 2,000 | 29,600 | 30,300 |
| AS 32x2,5 | 50,00 | 250 | 32,00 | 2,500 | 29,600 | 30,300 |
| AS 33x2 | 200,00 | 250 | 33,00 | 2,000 | 30,500 | 31,300 |
| AS 34x2,5 | 50,00 | 250 | 34,00 | 2,500 | 31,500 | 32,300 |
| AS 35x2 | 100,00 | 250 | 35,00 | 2,000 | 32,200 | 32,300 |
| AS 35x2,5 | 8,00 net | 200 | 35,00 | 2,500 | 32,200 | 33,000 |
| AS 36x2,5 | 8,00 net | 200 | 36,00 | 2,500 | 33,200 | 34,000 |
| AS 38x2,5 | 9,00 net | 150 | 38,00 | 2,500 | 35,200 | 36,000 |
| AS 38 X 3 | on demand | 150 | 38,00 | 3,000 | 35,200 | 36,000 |
| AS 40x2 | on demand | 100 | 40,00 | 2,000 | 36,500 | 37,500 |
| AS 40x2,5 | 9,00 net | 50 | 40,00 | 2,500 | 36,500 | 37,500 |
| AS 40X3 | on demand | 50 | 40,00 | 3,000 | 36,500 | 37,500 |
| AS 42x2,5 | 10,00 net | 50 | 42,00 | 2,500 | 38,500 | 39,500 |
| AS 44x2,5 | 10,00 net | 50 | 44,00 | 2,500 | 40,500 | 41,500 |
| AS 45x2,5 | 11,00 net | 50 | 45,00 | 2,500 | 41,500 | 42,500 |
| AS 45X3 | on demand | 50 | 45,00 | 3,000 | 41,500 | 42,500 |
| AS 48x2,5 | 11,00 net | 50 | 48,00 | 2,500 | 44,500 | 45,500 |
| AS 48x3 | 12,00 net | 50 | 48,00 | 3,000 | 44,500 | 45,500 |
| AS 50x3 | 70,00 | 50 | 50,00 | 3,000 | 45,800 | 47,000 |
| AS 52x3 | 150,00 | 50 | 52,00 | 3,000 | 47,800 | 49,000 |
| AS 55x3 | 75,00 | 50 | 55,00 | 3,000 | 50,800 | 52,000 |
| AS 58x3 | 100,00 | 50 | 58,00 | 3,000 | 53,800 | 55,000 |
| AS 60x3 | 120,00 | 50 | 60,00 | 3,000 | 55,800 | 57,000 |
| AS 60x4 | on demand | 50 | 60,00 | 4,000 | 55,800 | 57,000 |
| AS 65x4 | 150,00 | 50 | 65,00 | 4,000 | 60,800 | 62,000 |
| AS 70x4 | 30,00 net | 25 | 70,00 | 4,000 | 65,500 | 67,000 |
| AS 75x4 | 210,00 | 25 | 75,00 | 4,000 | 70,500 | 72,000 |
| AS 80x4 | 30,00 net | 25 | 80,00 | 4,000 | 74,500 | 76,500 |
| AS 85x4 | 270,00 | 25 | 85,00 | 4,000 | 79,500 | 81,500 |
| AS 90x4 | 300,00 | 25 | 90,00 | 4,000 | 84,500 | 86,500 |
| AS 95x4 | 350,00 | 25 | 95,00 | 4,000 | 89,500 | 91,500 |
| AS 100x4 | 400,00 | 25 | 100,00 | 4,000 | 94,500 | 96,500 |
| AS 110x5 | on demand | 25 | 110,00 | 5,000 | 103,000 | 106,000 |
