Rings TYPE NAS for shafts Heavy duty / Gandini Fasteners

Home > Retaining rings > Retaining rings for axial assembly > Rings TYPE NAS for shafts Heavy duty

Rings TYPE NAS for shafts
Heavy duty

Material: Carbon steel

Hardness:

SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice

Example of designation:
NAS 75 (3/4)

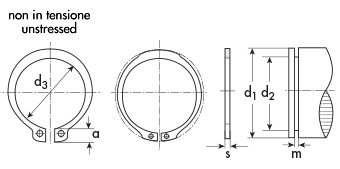

d₁=shaft diameter
d₂=grove diameter
d₃=ring diameter in the unstressed state
s=thickness

= Prior to sale

Description	Price in Euro/100 VAT not included	Packaging	d₁	d₁ inch	s inch	d₃ inch	d₂ inch
NAS 39	12,00	1.000	10,00	0.394	0.035	0.362	0.368
NAS 42	on demand	1.000	10,90	0.428	0.035	0.394	0.402
NAS 47	13,00	1.000	12,00	0.473	0.042	0.435	0.444
NAS 50 (1/2)	14,00	1.000	12,70	0.500	0.050	0.460	0.468
NAS 59	on demand	1.000	15,00	0.591	0.050	0.543	0.555
NAS 62 (5/8)	15,00	1.000	15,90	0.625	0.050	0.575	0.588
NAS 66	16,00	1.000	17,00	0.669	0.050	0.616	0.629
NAS 75 (3/4)	20,00	500	19,00	0.750	0.078	0.689	0.704
NAS 87 (7/8)	on demand	500	22,20	0.875	0.078	0.804	0.821
NAS 98 (1 )	40,00	250	25,40	1.000	0.078	0.906	0.938
NAS 106 (1-1/16)	on demand	250	27,00	1.062	0.093	0.978	0.998
NAS 112 (1-1/8)	on demand	250	28,60	1.125	0.093	1.036	1.059
NAS 118 (1-3/16)	on demand	250	30,20	1.188	0.093	1.087	1.111
NAS 125 (1-1/4)	60,00	250	31,70	1.250	0.093	1.150	1.174
NAS 131 (1-5/16)	on demand	100	33,30	1.312	0.093	1.208	1.234
NAS 137 (1-3/8)	on demand	100	34,90	1.375	0.093	1.268	1.291
NAS 150 (1-1/2)	on demand	50	38,10	1.500	0.109	1.380	1.406
NAS 156 (1-9/16)	120,00	50	39,70	1.562	0.109	1.437	1.468
NAS 175 (1-3/4)	140,00	50	44,40	1.750	0.109	1.608	1.650
NAS 193 (1-15/16)	on demand	50	49,20	1.938	0.125	1.782	1.826
NAS 200 (2)	160,00	50	50,80	2.000	0.125	1.840	1.880
NAS 225 (2-31/4)	200,00	50	-	-	0.000	0.000	0.000
