Rings TYPE H for shafts
Crescent radial
Crescent radial
Material:
Carbon steel
Hardness:
48÷52 HRC ⩠ 485÷545 HV
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type H 15

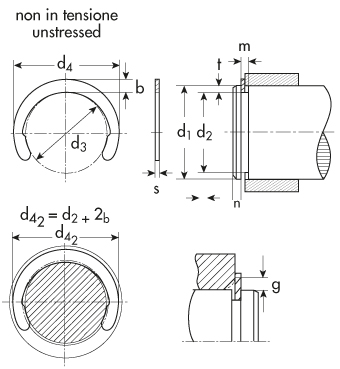

d1=shaft diameter
d2=groove diameter
d3=inner diameter in the unstressed state
d4=external diameter in the unstressed state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| H 3 | 2,50 | 5.000 | 3,00 | 0,400 | 2,180 | 2,300 |
| H 4 | 2,50 | 5.000 | 4,00 | 0,400 | 3,000 | 3,200 |
| H 5 | 2,50 | 5.000 | 5,00 | 0,600 | 3,800 | 4,000 |
| H 6 | 2,70 | 5.000 | 6,00 | 0,700 | 4,800 | 5,000 |
| H 7 | 3,00 | 5.000 | 7,00 | 0,800 | 5,800 | 6,000 |
| H 8 | 3,00 | 5.000 | 8,00 | 0,800 | 6,800 | 7,000 |
| H 9 | 3,50 | 5.000 | 9,00 | 1,000 | 7,800 | 8,000 |
| H 10 | 3,50 | 1.000 | 10,00 | 1,000 | 8,750 | 9,000 |
| H 11 | 4,00 | 1.000 | 11,00 | 1,000 | 9,650 | 10,000 |
| H 12 | 5,00 | 1.000 | 12,00 | 1,000 | 10,550 | 10,900 |
| H 13 | 5,00 | 1.000 | 13,00 | 1,000 | 11,400 | 11,800 |
| H 14 | 5,50 | 1.000 | 14,00 | 1,000 | 12,300 | 12,700 |
| H 15 | 6,00 | 1.000 | 15,00 | 1,000 | 13,200 | 13,600 |
| H 16 | 6,00 | 1.000 | 16,00 | 1,000 | 14,100 | 14,500 |
| H 17 | 7,00 | 1.000 | 17,00 | 1,000 | 14,900 | 15,400 |
| H 18 | 8,00 | 1.000 | 18,00 | 1,200 | 15,800 | 16,300 |
| H 19 | 9,00 | 1.000 | 19,00 | 1,200 | 16,700 | 17,200 |
| H 20 | 10,00 | 1.000 | 20,00 | 1,200 | 17,550 | 18,100 |
| H 22 | 11,00 | 1.000 | 22,00 | 1,200 | 19,400 | 19,900 |
| H 23 | on demand | 1.000 | 23,00 | 1,200 | 20,200 | 20,800 |
| H 24 | on demand | 1.000 | 24,00 | 1,200 | 21,100 | 21,700 |
| H 25 | 15,00 | 500 | 25,00 | 1,200 | 22,000 | 22,600 |
| H 26 | 30,00 | 500 | 26,00 | 1,200 | 22,900 | 23,500 |
| H 28 | on demand | 500 | 28,00 | 1,500 | 24,600 | 25,200 |
| H 30 | 35,00 | 500 | 30,00 | 1,500 | 26,300 | 27,000 |
| H 32 | on demand | 500 | 32,00 | 1,500 | 28,100 | 28,800 |
| H 35 | on demand | 500 | 35,00 | 1,500 | 30,800 | 31,500 |
| H 36 | on demand | 500 | 36,00 | 1,750 | 31,700 | 32,400 |
| H 38 | on demand | 500 | 38,00 | 1,750 | 33,400 | 34,200 |
| H 40 | 70,00 | 250 | 40,00 | 1,750 | 35,200 | 36,000 |
| H 42 | on demand | 250 | 42,00 | 1,750 | 37,000 | 37,800 |
| H 45 | on demand | 250 | 45,00 | 1,750 | 39,600 | 40,500 |
| H 48 | 100,00 | 250 | 48,00 | 1,750 | 42,300 | 43,200 |
| H 50 | on demand | 100 | 50,00 | 2,000 | 44,000 | 45,000 |
| H 52 | on demand | 100 | 52,00 | 2,000 | 46,000 | 47,000 |
| H 55 | 150,00 | 100 | 55,00 | 2,000 | 48,500 | 50,000 |
