Rings TYPE NRA for shafts
In inches - Radial mounting
In inches - Radial mounting
Material: Carbon steel
SURFACE TREATMENT
Phosphated and oiled
Blackened and oiled
Manufacturer's choice
Example of designation:
ring type NRA 25 (1/4)

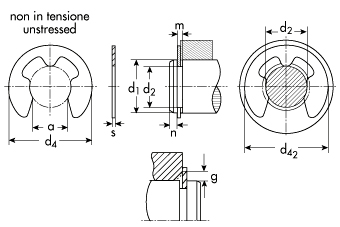

d1=shaft diameter
d2=groove diameter
d4=external diameter in the unstressed state
s=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 | d1 inch | s inch | d2 inch |
|---|---|---|---|---|---|---|
| NRA 6 ( 1/16) | on demand | 10.000 | 1,58 | 0.062 | 0.010 | 0.052 |
| NRA 9 ( 3/32) | on demand | 5.000 | 2,39 | 0.094 | 0.015 | 0.074 |
| NRA 12 ( 1/8) | on demand | 5.000 | 3,18 | 0.125 | 0.015 | 0.095 |
| NRA 14 ( 9/64) | 2,50 | 5.000 | 3,56 | 0.140 | 0.025 | 0.105 |
| NRA 15 ( 5/32) | on demand | 5.000 | 3,96 | 0.156 | 0.025 | 0.116 |
| NRA 18 ( 3/16) | 3,00 | 2.500 | 4,78 | 0.188 | 0.025 | 0.147 |
| NRA 25 ( 1/4) | 5,00 | 2.500 | 6,35 | 0.250 | 0.025 | 0.210 |
| NRA 37 ( 3/8 ) | 8,00 | 1.000 | 9,53 | 0.375 | 0.035 | 0.303 |
| NRA 43 ( 7/16) | 10,00 | 1.000 | 11,13 | 0.438 | 0.035 | 0.343 |
| NRA 50 ( 1/2 ) | 11,00 | 1.000 | 12,70 | 0.500 | 0.042 | 0.396 |
| NRA 62 ( 5/8 ) | 18,00 | 500 | 15,88 | 0.625 | 0.042 | 0.485 |
| NRA 75 ( 3/4) | 21,00 | 250 | 19,05 | 0.750 | 0.050 | 0.580 |
| NRA 87 ( 7/ 8) | on demand | 250 | 22,23 | 0.875 | 0.050 | 0.675 |
| NRA 100 ( 1) | 40,00 | 250 | 25,40 | 1.000 | 0.050 | 0.835 |
