Available materials: Steel Zinc Plated Stainless steel Bronze
Rings TYPE RA for shafts
DIN 6799
ex UNI 7434 Radial mounting
DIN 6799
ex UNI 7434 Radial mounting
Material: Stainless stel X35 Cr Mo 17
INOX X39 Cr Mo 17.1 or AISI 420
Example of designation:
ring type RA 4 STAINLESS STEEL

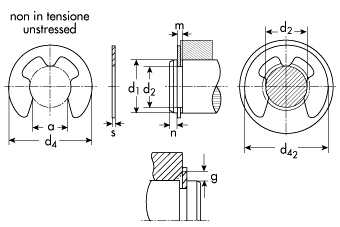

d1=shaft diameter
d2=groove diameter
d4=external diameter in the unstressed state
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d2 | s | d4 |
|---|---|---|---|---|---|
| RA 1,5 INOX | 2,00 | 10.000 | 1,500 | 0,400 | 3,90 |
| RA 1,9 INOX | 2,00 | 10.000 | 1,900 | 0,500 | 4,40 |
| RA 2,3 INOX | 2,10 | 5.000 | 2,300 | 0,600 | 5,90 |
| RA 3,2 INOX | 2,20 | 5.000 | 3,200 | 0,600 | 6,90 |
| RA 4 INOX | 2,40 | 5.000 | 4,000 | 0,700 | 8,85 |
| RA 5 INOX | 4,00 | 2.500 | 5,000 | 0,700 | 10,85 |
| RA 6 INOX | 5,00 | 2.500 | 6,000 | 0,700 | 11,80 |
| RA 7 INOX | 7,00 | 2.500 | 7,000 | 0,900 | 13,80 |
| RA 8 INOX | 9,00 | 2.000 | 8,000 | 1,000 | 15,75 |
| RA 9 INOX | 10,00 | 1.000 | 9,000 | 1,100 | 18,20 |
| RA 10 INOX | 12,00 | 1.000 | 10,000 | 1,200 | 19,70 |
| RA 12 INOX | 16,00 | 1.000 | 12,000 | 1,300 | 22,70 |
| RA 15 INOX | 30,00 | 500 | 15,000 | 1,500 | 28,70 |
| RA 19 INOX | 60,00 | 250 | 19,000 | 1,750 | 36,50 |
