XAH for bores
Medium duty series - In inches

Material: Carbon Steel
SAE 1070-1090

SURFACE FINISHES
Oil dipped

Example of designation:
XAH-37

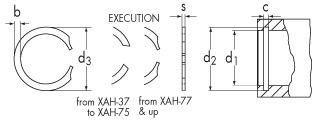

d1=shaft diameter
d2=groove diameter
d3=external ring diameter
s=thickness

= Prior to sale

Description Price in Euro/100
VAT not included		 Packaging d1 d1 inch s inch d3 d2
XAH-218 160,00 +20% 100 55,58 2.188 0.078 59,21 58,32
ANELLO A RIPOSO
  • d3  59,21
    d3 inch  2.331
  • Toll d3 mm  +1,17
    Toll. d3 inch  +0,046
  • b mm  4,34
    b inch  0.171
  • Toll. b mm  +/-0,13
    Toll. b inch  +/-0,005
  • s  1,98
    s inch  0.078
  • Toll. s mm  +/-0,05
    Toll. s inch  +/-0,002
  • Peso kg/1000  11,750
GOLA
  • d2  58,32
    d2 inch  2.296
  • toll. d2 mm  +/-0,15
    Toll. d2 inch  +/-0,006
  • c mm  2,18
    c inch  0.086
  • Toll. c mm  +0,130
    Toll. c inch  +0,005
DATI TECNICI
  • Taglio anello Newtons  82552
    Taglio anello L.B.S  18559
    (coefficiente di sicurezza =3)
  • Snervamento gola Newton  37148.0000
    Snervamento gola L.B.S.  8352
    (calcolato considerando resistenza allo snervamento del materiale della gola di 310N/mm2 e un fattore di sicurezza=2)
