Home > Smalley spiral rings > Double spiral retaining rings (Spirolox® type) > WH for bores Medium duty series - In inches

Available materials: Steel Inox AISI 302 Inox AISI 316

WH for bores
Medium duty series - In inches

Material: Carbon Steel
SAE 1060-75

SURFACE FINISHES
Oil dipped

Example of designation:
WH-50

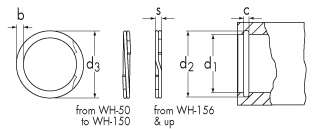

d1=shaft diameter
d2=groove diameter
d3=external ring diameter
s=thickness

= Prior to sale

Description Price in Euro/100
VAT not included		 Packaging d1 d1 inch s inch d3 d2
WH-50 20,00 +20% 1.000 12,70 0.500 0.025 13,51 13,36
WH-51 20,00 +20% 1.000 13,00 0.512 0.025 13,82 13,67
WH-53 20,00 +20% 1.000 13,49 0.531 0.025 14,33 14,15
WH-56 20,00 +20% 1.000 14,27 0.562 0.025 15,09 14,94
WH-59 20,00 +20% 1.000 15,09 0.594 0.025 15,90 15,72
WH-62 20,00 +20% 1.000 15,88 0.625 0.025 16,71 16,54
WH-65 20,00 +20% 1.000 16,66 0.656 0.025 17,50 17,32
WH-68 20,00 +20% 1.000 17,45 0.687 0.025 18,29 18,11
WH-71 20,00 +20% 1.000 18,24 0.718 0.025 19,08 18,90
WH-75 20,00 +20% 1.000 19,05 0.750 0.031 20,07 19,86
WH-77 20,00 +20% 1.000 19,74 0.777 0.031 20,75 20,52
WH-78 20,00 +20% 1.000 19,84 0.781 0.031 20,85 20,62
WH-81 20,00 +20% 1.000 20,62 0.812 0.031 21,67 21,41
WH-84 20,00 +20% 500 21,41 0.843 0.031 22,58 22,35
WH-86 21,00 +20% 500 22,00 0.866 0.031 23,19 22,94
WH-87 21,00 +20% 500 22,23 0.875 0.031 23,42 23,16
WH-90 21,00 +20% 500 23,01 0.906 0.031 24,10 23,85
WH-93 22,00 +20% 500 23,83 0.938 0.031 25,04 24,77
WH-96 22,00 +20% 500 24,59 0.968 0.037 26,04 25,78
WH-98 22,00 +20% 500 25,07 0.987 0.037 26,44 26,16
WH-100 22,00 +20% 500 25,40 1.000 0.037 26,77 26,49
WH-102 22,00 +20% 500 25,98 1.023 0.037 27,38 27,08
WH-103 22,00 +20% 500 26,19 1.031 0.037 27,53 27,28
WH-106 22,00 +20% 500 26,97 1.062 0.037 28,37 28,04
WH-109 22,00 +20% 500 27,76 1.093 0.037 29,13 28,83
WH-112 22,00 +20% 500 28,58 1.125 0.037 29,97 29,64
WH-115 22,00 +20% 500 29,36 1.156 0.037 30,73 30,43
WH-118 22,00 +20% 500 30,18 1.188 0.043 31,72 31,39
WH-121 22,00 +20% 500 30,94 1.218 0.043 32,46 32,16
WH-125 23,00 +20% 500 31,75 1.250 0.043 33,32 32,97
WH-128 24,00 +20% 500 32,54 1.281 0.043 34,09 33,76
WH-131 24,00 +20% 500 33,32 1.312 0.043 34,90 34,54
WH-134 25,00 +20% 500 34,11 1.343 0.043 35,76 35,43
WH-137 26,00 +20% 250 34,93 1.375 0.043 36,63 36,25
WH-140 27,00 +20% 250 35,71 1.406 0.043 37,39 37,03
WH-143 27,00 +20% 250 36,50 1.437 0.043 38,20 37,82
WH-145 28,00 +20% 250 36,98 1.456 0.043 38,68 38,30
WH-146 28,00 +20% 250 37,29 1.468 0.043 38,99 38,61
WH-150 28,00 +20% 250 38,10 1.500 0.043 39,80 39,42
WH-156 47,00 +20% 250 39,67 1.562 0.049 41,50 41,07
WH-157 47,00 +20% 250 39,98 1.574 0.049 41,88 41,48
WH-162 47,00 +20% 250 41,28 1.625 0.049 43,21 42,77
WH-165 48,00 +20% 250 41,99 1.653 0.049 43,94 43,48
WH-168 49,00 +20% 250 42,85 1.687 0.049 44,91 44,45
WH-175 49,00 +20% 250 44,45 1.750 0.049 46,58 46,05
WH-181 50,00 +20% 100 46,05 1.813 0.049 48,11 47,63
WH-185 50,00 +20% 100 46,99 1.850 0.049 49,20 48,69
WH-187 51,00 +20% 100 47,63 1.875 0.049 49,78 49,33
WH-193 52,00 +20% 100 49,23 1.938 0.049 51,44 50,93
WH-200 53,00 +20% 100 50,80 2.000 0.049 53,11 52,60
WH-204 54,00 +20% 100 51,99 2.047 0.049 54,31 53,80
WH-206 67,00 +20% 100 52,37 2.062 0.049 54,71 54,15
WH-212 68,00 +20% 100 53,98 2.125 0.049 56,31 55,75
WH-216 68,00 +20% 100 54,99 2.165 0.049 57,40 56,87
WH-218 68,00 +20% 100 55,58 2.188 0.049 58,01 57,45
WH-225 69,00 +20% 100 57,15 2.250 0.049 59,61 59,03
WH-231 69,00 +20% 100 58,72 2.312 0.049 61,29 60,71
WH-237 69,00 +20% 100 60,33 2.375 0.049 62,89 62,31
WH-243 69,00 +20% 100 61,90 2.437 0.049 64,59 63,98
WH-244 70,00 +20% 100 61,98 2.440 0.049 64,67 64,06
WH-250 72,00 +20% 100 63,50 2.500 0.049 66,19 65,58
WH-253 73,00 +20% 100 64,29 2.531 0.049 67,08 66,47
WH-256 74,00 +20% 100 65,07 2.562 0.049 67,89 67,26
WH-262 76,00 +20% 100 66,68 2.625 0.049 69,49 68,86
WH-267 77,00 +20% 100 68,00 2.677 0.049 70,84 70,28
WH-268 77,00 +20% 100 68,28 2.688 0.049 71,20 70,56
WH-275 91,00 +20% 100 69,85 2.750 0.049 72,77 72,16
WH-281 92,00 +20% 100 71,45 2.813 0.049 74,40 73,74
WH-283 94,00 +20% 100 71,98 2.834 0.049 75,03 74,37
WH-287 97,00 +20% 100 73,03 2.875 0.049 76,07 75,41
WH-293 98,00 +20% 100 74,60 2.937 0.049 77,67 76,99
WH-295 98,00 +20% 100 74,98 2.952 0.049 78,05 77,37
WH-300 110,00 +20% 100 76,20 3.000 0.061 79,30 78,64
WH-306 110,00 +20% 100 77,77 3.062 0.061 80,92 80,21
WH-312 110,00 +20% 100 79,38 3.125 0.061 82,58 81,86
WH-314 111,00 +20% 100 79,98 3.149 0.061 83,21 82,47
WH-318 111,00 +20% 100 80,95 3.187 0.061 84,10 83,39
WH-325 112,00 +20% 100 82,55 3.250 0.061 85,83 85,09
WH-331 120,00 +20% 50 84,12 3.312 0.061 87,53 86,77
WH-334 121,00 +20% 50 84,99 3.346 0.061 88,37 87,63
WH-337 121,00 +20% 50 85,73 3.375 0.061 89,13 88,37
WH-343 123,00 +20% 50 87,30 3.437 0.061 90,78 89,99
WH-350 124,00 +20% 50 88,90 3.500 0.061 92,35 91,59
WH-354 128,00 +20% 50 89,99 3.543 0.061 93,57 92,79
WH-356 128,00 +20% 50 90,47 3.562 0.061 94,06 93,27
WH-362 129,00 +20% 50 92,08 3.625 0.061 95,73 94,92
WH-368 130,00 +20% 50 93,65 3.687 0.061 97,33 96,49
WH-374 130,00 +20% 50 95,00 3.740 0.061 98,68 97,84
WH-375 130,00 +20% 50 95,25 3.750 0.061 98,91 98,09
WH-381 140,00 +20% 50 96,82 3.812 0.061 100,66 99,82
WH-387 140,00 +20% 50 98,43 3.875 0.061 102,24 101,42
WH-393 140,00 +20% 50 100,03 3.938 0.061 103,86 103,02
WH-400 160,00 +20% 25 101,60 4.000 0.061 105,59 104,75
WH-406 180,00 +20% 25 103,20 4.063 0.061 107,24 106,35
WH-412 180,00 +20% 25 104,78 4.125 0.061 108,81 107,92
WH-418 190,00 +20% 25 106,38 4.188 0.061 110,41 109,50
WH-425 190,00 +20% 25 107,95 4.250 0.061 112,17 111,25
WH-431 200,00 +20% 25 109,52 4.312 0.061 113,77 112,83
WH-433 200,00 +20% 25 109,98 4.330 0.061 114,22 113,28
WH-437 210,00 +20% 25 111,13 4.375 0.061 115,39 114,43
WH-443 210,00 +20% 25 112,70 4.437 0.061 117,12 116,15
WH-450 210,00 +20% 25 114,30 4.500 0.061 118,72 117,75
WH-452 220,00 +20% 25 114,99 4.527 0.061 119,41 118,44
WH-456 220,00 +20% 25 115,87 4.562 0.061 120,32 119,33
WH-462 220,00 +20% 25 117,48 4.625 0.072 122,00 121,03
WH-468 230,00 +20% 25 119,05 4.687 0.072 123,62 122,61
WH-472 230,00 +20% 25 119,99 4.724 0.072 124,54 123,55
WH-475 230,00 +20% 25 120,65 4.750 0.072 125,22 124,21
WH-481 240,00 +20% 25 122,22 4.812 0.072 126,82 125,78
WH-487 240,00 +20% 25 123,83 4.875 0.072 128,40 127,38
WH-492 250,00 +20% 25 124,99 4.921 0.072 129,59 128,55
WH-493 250,00 +20% 25 125,40 4.937 0.072 130,10 129,06
WH-500 250,00 +20% 25 127,00 5.000 0.072 131,70 130,66
WH-511 260,00 +20% 25 130,00 5.118 0.072 134,72 133,65
WH-512 260,00 +20% 25 130,18 5.125 0.072 134,90 133,83
WH-525 270,00 +20% 25 133,35 5.250 0.072 138,07 136,98
WH-537 270,00 +20% 25 136,53 5.375 0.072 141,38 140,26
WH-550 270,00 +20% 25 139,70 5.500 0.072 144,60 143,43
WH-551 280,00 +20% 25 139,98 5.511 0.072 144,86 143,71
WH-562 280,00 +20% 25 142,88 5.625 0.072 147,78 146,61
WH-570 290,00 +20% 25 144,98 5.708 0.072 150,09 148,87
WH-575 290,00 +20% 25 146,05 5.750 0.072 151,13 149,94
WH-587 290,00 +20% 25 149,23 5.875 0.072 154,36 153,11
WH-590 290,00 +20% 25 149,99 5.905 0.072 155,09 153,87
WH-600 290,00 +20% 25 152,40 6.000 0.072 157,53 156,29
WH-612 460,00 +20% 25 155,58 6.125 0.086 161,26 159,94
WH-625 480,00 +20% 25 158,75 6.250 0.086 164,44 163,12
WH-629 390,00 +20% 25 159,99 6.299 0.086 165,71 164,36
WH-637 400,00 +20% 25 161,93 6.375 0.086 167,67 166,29
WH-650 410,00 +20% 25 165,10 6.500 0.086 170,84 169,47
WH-662 420,00 +20% 25 168,28 6.625 0.086 174,32 172,90
WH-669 430,00 +20% 25 169,98 6.692 0.086 176,05 174,60
WH-675 430,00 +20% 25 171,45 6.750 0.086 177,47 176,07
WH-687 440,00 +20% 25 174,63 6.875 0.086 180,70 179,25
WH-700 490,00 +20% 25 177,80 7.000 0.086 183,87 182,42
WH-708 500,00 +20% 25 179,98 7.086 0.086 186,36 184,86
WH-712 520,00 +20% 25 180,98 7.125 0.086 187,35 185,85
WH-725 540,00 +20% 25 184,15 7.250 0.086 190,53 189,03
WH-737 560,00 +20% 25 187,33 7.375 0.086 193,75 192,20
WH-748 580,00 +20% 25 189,99 7.480 0.086 196,44 194,87
WH-750 590,00 +20% 25 190,50 7.500 0.086 196,95 195,38
WH-762 600,00 +20% 25 193,68 7.625 0.086 200,41 198,81
WH-775 620,00 +20% 25 196,85 7.750 0.086 203,56 201,98
WH-787 650,00 +20% 25 200,03 7.875 0.086 206,53 205,16
WH-800 680,00 +20% 25 203,20 8.000 0.086 209,96 208,33
WH-825 690,00 +20% 25 209,55 8.250 0.086 216,61 214,93
WH-826 910,00 +20% 25 209,98 8.267 0.086 217,07 215,37
WH-846 950,00 +20% 25 214,99 8.464 0.086 222,10 220,37
WH-850 1.000,00 +20% 25 215,90 8.500 0.086 223,01 221,28
WH-875 1.000,00 +20% 25 222,25 8.750 0.086 229,64 227,89
WH-885 1.100,00 +20% 25 224,99 8.858 0.086 232,44 230,63
WH-900 1.100,00 +20% 25 228,60 9.000 0.086 236,04 234,24
WH-905 1.200,00 +20% 25 230,00 9.055 0.086 237,72 235,89
WH-925 1.300,00 +20% 25 234,95 9.250 0.086 242,70 240,84
WH-944 1.300,00 +20% 25 239,98 9.448 0.086 247,78 245,87
WH-950 1.300,00 +20% 25 241,30 9.500 0.086 249,07 247,19
WH-975 1.400,00 +20% 25 247,65 9.750 0.086 255,73 253,80
WH-1000 1.500,00 +20% 25 254,00 10.000 0.086 262,13 260,15
WH-1025 1.500,00 +20% 25 260,35 10.250 0.086 268,78 266,75
WH-1050 1.600,00 +20% 25 266,70 10.500 0.086 275,18 273,10
WH-1075 1.700,00 +20% 25 273,05 10.750 0.086 281,81 279,70
WH-1100 1.800,00 +20% 25 279,40 11.000 0.086 288,21 286,05
