Available materials: Acciaio Inox

WSW for shafts
Wave rings - In inches

Material: Stainless Steel
17.7 PH C/CH-900

SURFACE FINISHES
Steam degreasing
Ultrasonic cleaning

Example of designation:
WSW-75-S17

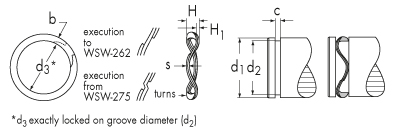

d₁=shaft diameter
d₂=groove diameter
d₃=external ring diameter
s=thickness

= Prior to sale

Description	Price in Euro/100 VAT not included	Packaging	d₁	d₁ inch	s inch	d₃	d₂
WSW-275-S17	640,00 +20%	100	69,85	2.750	0.093	-	66,09

ANELLO A RIPOSO

b mm 5,72
b inch 0.225
s 2,36
s inch 0.093
N. onde 4
Peso kg/1000 20,080

GOLA

d₂ 66,09
d₂ inch 2.602
c mm 5,64
c inch 0.222

DATI TECNICI

Carico (N) 418
Carico Lb 94,00
H1 mm 4,32
H mm 5,51
H1 inch 0.170
H inch 0.217
