Available materials: Acciaio Zincato Inox AISI 420 Inox AISI 316

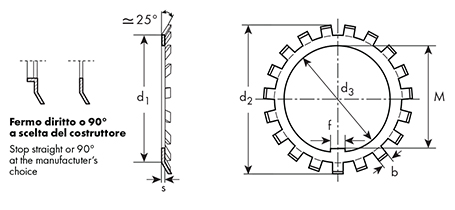

Safety washers TYPE MB
DIN 5406
DIN 5406
Material: Stainless steel AISI 420
Example of designation:
MB 0 INOX AISI 420
= Prior to sale
| Description | Price in Euro/per item VAT not included |
Packaging | G - Thread | d3 | d2 | d1 | s | b | f | M | Min. No. tabs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MB 0 INOX AISI 420 | 1,00 | 100 | - | 10 | 21 | 13,5 | 1,00 | 3 | 3 | 8,5 | 9 |
| MB 1 INOX AISI 420 | 1,10 | 100 | - | 12 | 25 | 17,0 | 1,00 | 3 | 3 | 10,5 | 11 |
| MB 2 INOX AISI 420 | 1,20 | 100 | - | 15 | 28 | 21,0 | 1,00 | 4 | 4 | 13,5 | 11 |
| MB 3 INOX AISI 420 | 1,30 | 100 | - | 17 | 32 | 24,0 | 1,00 | 4 | 4 | 15,5 | 11 |
| MB 4 INOX AISI 420 | 1,40 | 100 | - | 20 | 36 | 26,0 | 1,00 | 4 | 4 | 18,5 | 11 |
| MB 5 INOX AISI 420 | 1,50 | 100 | - | 25 | 42 | 32,0 | 1,25 | 5 | 5 | 23,0 | 13 |
| MB 6 INOX AISI 420 | 1,60 | 100 | - | 30 | 49 | 38,0 | 1,25 | 5 | 5 | 27,5 | 13 |
| MB 7 INOX AISI 420 | 2,00 | 100 | - | 35 | 57 | 44,0 | 1,25 | 5 | 6 | 32,5 | 13 |
| MB 8 INOX AISI 420 | 2,50 | 100 | - | 40 | 62 | 50,0 | 1,25 | 6 | 6 | 37,5 | 13 |
| MB 9 INOX AISI 420 | 3,00 | 100 | - | 45 | 69 | 56,0 | 1,25 | 6 | 6 | 42,5 | 13 |
| MB 10 INOX AISI 420 | 3,50 | 50 | - | 50 | 74 | 61,0 | 1,25 | 6 | 6 | 47,5 | 13 |
| MB 11 INOX AISI 420 | 4,50 | 50 | - | 55 | 81 | 67,0 | 1,50 | 7 | 8 | 52,5 | 17 |
| MB 12 INOX AISI 420 | 5,00 | 50 | - | 60 | 86 | 73,0 | 1,50 | 7 | 8 | 57,5 | 17 |
| MB 13 INOX AISI 420 | 6,00 | 50 | - | 65 | 92 | 79,0 | 1,50 | 7 | 8 | 62,5 | 17 |
| MB 14 INOX AISI 420 | 7,00 | 25 | - | 70 | 98 | 85,0 | 1,50 | 8 | 8 | 66,5 | 17 |
| MB 15 INOX AISI 420 | 8,00 | 25 | - | 75 | 104 | 90,0 | 1,50 | 8 | 8 | 71,5 | 17 |
| MB 16 INOX AISI 420 | 11,00 | 25 | - | 80 | 112 | 95,0 | 1,75 | 8 | 10 | 76,5 | 17 |
| MB 17 INOX AISI 420 | 12,00 | 25 | - | 85 | 119 | 102,0 | 1,75 | 8 | 10 | 81,5 | 17 |
| MB 18 INOX AISI 420 | 13,00 | 25 | - | 90 | 126 | 108,0 | 1,75 | 10 | 10 | 86,5 | 17 |
| MB 19 INOX AISI 420 | 14,00 | 10 | - | 95 | 133 | 113,0 | 1,75 | 10 | 10 | 91,5 | 17 |
| MB 20 INOX AISI 420 | 16,00 | 10 | - | 100 | 142 | 120,0 | 1,75 | 10 | 12 | 96,5 | 17 |
| MB 21 INOX AISI 420 | 19,00 | 10 | - | 105 | 145 | 126,0 | 1,75 | 12 | 12 | 100,5 | 17 |
| MB 22 INOX AISI 420 | 21,00 | 10 | - | 110 | 154 | 133,0 | 1,75 | 12 | 12 | 105,5 | 17 |
| MB 23 INOX AISI 420 | 23,00 | 10 | - | 115 | 159 | 137,0 | 2,00 | 12 | 12 | 110,5 | 17 |
| MB 24 INOX AISI 420 | 25,00 | 10 | - | 120 | 164 | 138,0 | 2,00 | 12 | 14 | 115,0 | 17 |
| MB 25 INOX AISI 420 | 28,00 | 10 | - | 125 | 170 | 148,0 | 2,00 | 12 | 14 | 120,0 | 17 |
| MB 26 INOX AISI 420 | 30,00 | 10 | - | 130 | 175 | 149,0 | 2,00 | 12 | 14 | 125,0 | 17 |
| MB 27 INOX AISI 420 | 40,00 | 10 | - | 135 | 185 | 160,0 | 2,00 | 14 | 14 | 130,0 | 17 |
| MB 28 INOX AISI 420 | 46,00 | 10 | - | 140 | 192 | 160,0 | 2,00 | 14 | 16 | 135,0 | 17 |
| MB 29 INOX AISI 420 | 47,00 | 10 | - | 145 | 202 | 171,0 | 2,00 | 14 | 16 | 140,0 | 17 |
| MB 30 INOX AISI 420 | 53,00 | 10 | - | 150 | 205 | 171,0 | 2,00 | 14 | 16 | 145,0 | 17 |
| MB 31 INOX AISI 420 | 59,00 | 10 | - | 155 | 212 | 182,0 | 2,50 | 16 | 16 | 147,5 | 19 |
| MB 32 INOX AISI 420 | 68,00 | 10 | - | 160 | 217 | 182,0 | 2,50 | 16 | 18 | 154,0 | 19 |
| MB 33 INOX AISI 420 | 74,00 | 10 | - | 165 | 222 | 193,0 | 2,50 | 16 | 18 | 157,5 | 19 |
| MB 34 INOX AISI 420 | 77,00 | 10 | - | 170 | 232 | 193,0 | 2,50 | 18 | 18 | 164,0 | 19 |
| MB 36 INOX AISI 420 | 84,00 | 10 | - | 180 | 242 | 203,0 | 2,50 | 18 | 20 | 174,0 | 19 |
| MB 38 INOX AISI 420 | 95,00 | 10 | - | 190 | 252 | 214,0 | 2,50 | 18 | 20 | 184,0 | 19 |
| MB 40 INOX AISI 420 | 105,00 | 10 | - | 200 | 262 | 226,0 | 2,50 | 20 | 20 | 194,0 | 19 |
| MB 44 INOX AISI 420 | 130,00 | 5 | - | 220 | 292 | 250,0 | 3,00 | 20 | 24 | 213,0 | 19 |
| MB 48 INOX AISI 420 | 150,00 | 5 | - | 240 | 312 | 270,0 | 3,00 | 20 | 24 | 233,0 | 19 |
| MB 52 INOX AISI 420 | 190,00 | 5 | - | 260 | 342 | 300,0 | 3,00 | 24 | 28 | 253,0 | 19 |
| MB 56 INOX AISI 420 | 220,00 | 5 | - | 280 | 362 | 320,0 | 3,00 | 24 | 28 | 273,0 | 19 |
