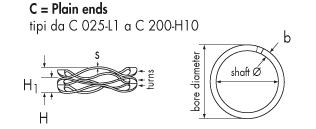

C plain ends
Inches series

Material: Carbon Steel
SAE 1070-1090

SURFACE FINISHES
Oil dipped


Example of designation:
C025-L1

d1 =bore diameter
d4 =shaft diameter
S=thickness
H=free height
H1=work height

= Prior to sale

Description Price in Euro/100
VAT not included		 Packaging d1 bore diameter mm d1 bore diameter inch d4 shaft diameter mm d4 shaft diameter inch H1 work height mm H free height mm
C025-L1 30,00 +20% 500 6,35 0.250 3,81 0.150 0,84 1,91
C025-L2 34,00 +20% 500 6,35 0.250 3,81 0.150 1,27 2,54
C025-L3 42,00 +20% 500 6,35 0.250 3,81 0.150 1,52 3,18
C025-L4 42,00 +20% 500 6,35 0.250 3,81 0.150 1,91 3,81
C025-L5 51,00 +20% 500 6,35 0.250 3,81 0.150 2,16 4,45
C025-L6 55,00 +20% 500 6,35 0.250 3,81 0.150 2,41 5,08
C025-L7 68,00 +20% 500 6,35 0.250 3,81 0.150 3,05 5,72
C025-L8 72,00 +20% 500 6,35 0.250 3,81 0.150 3,56 6,99
C025-L9 81,00 +20% 500 6,35 0.250 3,81 0.150 4,32 8,26
C025-M1 34,00 +20% 500 6,35 0.250 3,81 0.150 0,94 1,91
C025-M2 38,00 +20% 500 6,35 0.250 3,81 0.150 1,22 2,54
C025-M3 47,00 +20% 500 6,35 0.250 3,81 0.150 1,65 3,18
C025-M4 51,00 +20% 500 6,35 0.250 3,81 0.150 1,91 3,81
C025-M5 55,00 +20% 500 6,35 0.250 3,81 0.150 2,29 4,45
C025-M6 64,00 +20% 500 6,35 0.250 3,81 0.150 2,54 5,08
C025-M7 76,00 +20% 500 6,35 0.250 3,81 0.150 3,05 5,72
C025-M8 85,00 +20% 500 6,35 0.250 3,81 0.150 3,76 6,99
C025-M9 89,00 +20% 500 6,35 0.250 3,81 0.150 4,45 8,26
C031-L1 34,00 +20% 500 7,93 0.312 5,08 0.200 1,78 2,90
C031-L2 38,00 +20% 500 7,93 0.312 5,08 0.200 2,44 3,86
C031-L3 47,00 +20% 500 7,93 0.312 5,08 0.200 3,00 4,83
C031-L4 47,00 +20% 500 7,93 0.312 5,08 0.200 3,68 5,79
C031-L5 55,00 +20% 500 7,93 0.312 5,08 0.200 4,19 6,76
C031-L6 59,00 +20% 500 7,93 0.312 5,08 0.200 4,95 7,72
C031-L7 72,00 +20% 500 7,93 0.312 5,08 0.200 5,46 8,69
C031-L8 76,00 +20% 500 7,93 0.312 5,08 0.200 6,65 10,62
C031-L9 85,00 +20% 500 7,93 0.312 5,08 0.200 7,85 12,55
C031-M1 38,00 +20% 500 7,93 0.312 5,08 0.200 1,83 2,90
C031-M2 42,00 +20% 500 7,93 0.312 5,08 0.200 2,44 3,86
C031-M3 51,00 +20% 500 7,93 0.312 5,08 0.200 3,12 4,83
C031-M4 55,00 +20% 500 7,93 0.312 5,08 0.200 3,66 5,79
C031-M5 59,00 +20% 500 7,93 0.312 5,08 0.200 4,47 6,76
C031-M6 68,00 +20% 500 7,93 0.312 5,08 0.200 5,00 7,72
C031-M7 81,00 +20% 500 7,93 0.312 5,08 0.200 5,77 8,69
C031-M8 89,00 +20% 500 7,93 0.312 5,08 0.200 7,06 10,62
C031-M9 93,00 +20% 500 7,93 0.312 5,08 0.200 8,53 12,55
C037-L1 38,00 +20% 500 9,53 0.375 6,35 0.250 1,57 3,81
C037-L2 42,00 +20% 500 9,53 0.375 6,35 0.250 2,49 5,08
C037-L3 51,00 +20% 500 9,53 0.375 6,35 0.250 2,74 6,35
C037-L4 51,00 +20% 500 9,53 0.375 6,35 0.250 3,43 7,62
C037-L5 59,00 +20% 500 9,53 0.375 6,35 0.250 3,81 8,89
C037-L6 64,00 +20% 500 9,53 0.375 6,35 0.250 4,67 10,16
C037-L7 76,00 +20% 500 9,53 0.375 6,35 0.250 4,95 11,43
C037-L8 81,00 +20% 500 9,53 0.375 6,35 0.250 5,79 12,70
C037-L9 89,00 +20% 500 9,53 0.375 6,35 0.250 6,10 13,97
C037-M1 42,00 +20% 500 9,53 0.375 6,35 0.250 2,06 3,81
C037-M2 47,00 +20% 500 9,53 0.375 6,35 0.250 3,02 5,08
C037-M3 55,00 +20% 500 9,53 0.375 6,35 0.250 3,68 6,35
C037-M4 59,00 +20% 500 9,53 0.375 6,35 0.250 4,57 7,62
C037-M5 64,00 +20% 500 9,53 0.375 6,35 0.250 5,13 8,89
C037-M6 72,00 +20% 500 9,53 0.375 6,35 0.250 6,10 10,16
C037-M7 85,00 +20% 500 9,53 0.375 6,35 0.250 6,65 11,43
C037-M8 93,00 +20% 500 9,53 0.375 6,35 0.250 7,57 12,70
C037-M9 98,00 +20% 500 9,53 0.375 6,35 0.250 8,31 13,97
C043-L1 42,00 +20% 500 11,10 0.437 7,14 0.281 1,60 4,19
C043-L2 47,00 +20% 500 11,10 0.437 7,14 0.281 2,36 5,59
C043-L3 55,00 +20% 500 11,10 0.437 7,14 0.281 2,77 6,99
C043-L4 59,00 +20% 500 11,10 0.437 7,14 0.281 3,63 8,38
C043-L5 64,00 +20% 500 11,10 0.437 7,14 0.281 4,06 9,78
C043-L6 72,00 +20% 500 11,10 0.437 7,14 0.281 4,95 11,18
C043-L7 85,00 +20% 500 11,10 0.437 7,14 0.281 5,33 12,57
C043-L8 93,00 +20% 500 11,10 0.437 7,14 0.281 6,10 13,97
C043-L9 98,00 +20% 500 11,10 0.437 7,14 0.281 6,60 15,37
C043-M1 47,00 +20% 500 11,10 0.437 7,14 0.281 2,08 4,19
C043-M2 55,00 +20% 500 11,10 0.437 7,14 0.281 2,92 5,59
C043-M3 64,00 +20% 500 11,10 0.437 7,14 0.281 3,61 6,99
C043-M4 64,00 +20% 500 11,10 0.437 7,14 0.281 4,55 8,38
C043-M5 72,00 +20% 500 11,10 0.437 7,14 0.281 5,03 9,78
C043-M6 81,00 +20% 500 11,10 0.437 7,14 0.281 5,87 11,18
C043-M7 93,00 +20% 500 11,10 0.437 7,14 0.281 6,48 12,57
C043-M8 102,00 +20% 500 11,10 0.437 7,14 0.281 7,37 13,97
C043-M9 106,00 +20% 500 11,10 0.437 7,14 0.281 8,10 15,37
C050-L1 47,00 +20% 500 12,70 0.500 7,92 0.312 1,57 4,57
C050-L2 55,00 +20% 500 12,70 0.500 7,92 0.312 2,29 6,10
C050-L3 64,00 +20% 500 12,70 0.500 7,92 0.312 2,72 7,62
C050-L4 64,00 +20% 500 12,70 0.500 7,92 0.312 3,45 9,14
C050-L5 72,00 +20% 500 12,70 0.500 7,92 0.312 3,81 10,67
C050-L6 81,00 +20% 500 12,70 0.500 7,92 0.312 4,57 12,19
C050-L7 93,00 +20% 500 12,70 0.500 7,92 0.312 4,95 13,72
C050-L8 102,00 +20% 500 12,70 0.500 7,92 0.312 5,59 15,24
C050-L9 106,00 +20% 500 12,70 0.500 7,92 0.312 6,10 16,76
C050-M1 51,00 +20% 500 12,70 0.500 7,92 0.312 1,65 4,57
C050-M2 59,00 +20% 500 12,70 0.500 7,92 0.312 2,34 6,10
C050-M3 68,00 +20% 500 12,70 0.500 7,92 0.312 2,90 7,62
C050-M4 72,00 +20% 500 12,70 0.500 7,92 0.312 3,73 9,14
C050-M5 81,00 +20% 500 12,70 0.500 7,92 0.312 4,11 10,67
C050-M6 89,00 +20% 500 12,70 0.500 7,92 0.312 4,98 12,19
C050-M7 106,00 +20% 500 12,70 0.500 7,92 0.312 5,26 13,72
C050-M8 115,00 +20% 500 12,70 0.500 7,92 0.312 6,25 15,24
C050-M9 119,00 +20% 500 12,70 0.500 7,92 0.312 6,71 16,76
C050-H1 55,00 +20% 500 12,70 0.500 7,92 0.312 1,91 4,57
C050-H2 64,00 +20% 500 12,70 0.500 7,92 0.312 2,79 6,10
C050-H3 72,00 +20% 500 12,70 0.500 7,92 0.312 3,45 7,62
C050-H4 76,00 +20% 500 12,70 0.500 7,92 0.312 4,24 9,14
C050-H5 85,00 +20% 500 12,70 0.500 7,92 0.312 4,62 10,67
C050-H6 93,00 +20% 500 12,70 0.500 7,92 0.312 5,49 12,19
C050-H7 110,00 +20% 500 12,70 0.500 7,92 0.312 6,10 13,72
C050-H8 119,00 +20% 500 12,70 0.500 7,92 0.312 7,11 15,24
C050-H9 123,00 +20% 500 12,70 0.500 7,92 0.312 7,92 16,76
C056-L1 51,00 +20% 500 14,28 0.562 9,53 0.375 2,03 4,95
C056-L2 59,00 +20% 500 14,28 0.562 9,53 0.375 3,18 6,60
C056-L3 68,00 +20% 500 14,28 0.562 9,53 0.375 3,43 8,26
C056-L4 72,00 +20% 500 14,28 0.562 9,53 0.375 4,57 9,91
C056-L5 81,00 +20% 500 14,28 0.562 9,53 0.375 4,83 11,56
C056-L6 89,00 +20% 500 14,28 0.562 9,53 0.375 5,84 13,21
C056-L7 106,00 +20% 500 14,28 0.562 9,53 0.375 6,60 14,86
C056-L8 115,00 +20% 250 14,28 0.562 9,53 0.375 7,24 16,51
C056-L9 119,00 +20% 250 14,28 0.562 9,53 0.375 8,00 18,16
C056-M1 55,00 +20% 500 14,28 0.562 9,53 0.375 2,18 4,95
C056-M2 64,00 +20% 500 14,28 0.562 9,53 0.375 3,12 6,60
C056-M3 76,00 +20% 500 14,28 0.562 9,53 0.375 3,68 8,26
C056-M4 81,00 +20% 500 14,28 0.562 9,53 0.375 4,75 9,91
C056-M5 89,00 +20% 500 14,28 0.562 9,53 0.375 5,31 11,56
C056-M6 98,00 +20% 500 14,28 0.562 9,53 0.375 6,43 13,21
C056-M7 119,00 +20% 500 14,28 0.562 9,53 0.375 6,93 14,86
C056-M8 127,00 +20% 250 14,28 0.562 9,53 0.375 8,08 16,51
C056-M9 130,00 +20% 250 14,28 0.562 9,53 0.375 8,71 18,16
C056-H1 64,00 +20% 500 14,28 0.562 9,53 0.375 2,36 4,95
C056-H2 72,00 +20% 500 14,28 0.562 9,53 0.375 3,45 6,60
C056-H3 85,00 +20% 500 14,28 0.562 9,53 0.375 4,19 8,26
C056-H4 89,00 +20% 500 14,28 0.562 9,53 0.375 5,38 9,91
C056-H5 98,00 +20% 500 14,28 0.562 9,53 0.375 6,22 11,56
C056-H6 106,00 +20% 500 14,28 0.562 9,53 0.375 7,16 13,21
C056-H7 127,00 +20% 500 14,28 0.562 9,53 0.375 8,20 14,86
C056-H8 140,00 +20% 250 14,28 0.562 9,53 0.375 9,14 16,51
C056-H9 140,00 +20% 250 14,28 0.562 9,53 0.375 10,36 18,16
C062-L1 81,00 +20% 500 15,88 0.625 11,43 0.450 1,40 4,57
C062-L2 93,00 +20% 500 15,88 0.625 11,43 0.450 1,73 6,10
C062-L3 106,00 +20% 500 15,88 0.625 11,43 0.450 2,16 7,62
C062-L4 110,00 +20% 500 15,88 0.625 11,43 0.450 2,69 9,14
C062-L5 127,00 +20% 500 15,88 0.625 11,43 0.450 3,25 10,67
C062-L6 140,00 +20% 250 15,88 0.625 11,43 0.450 4,19 13,72
C062-L7 160,00 +20% 250 15,88 0.625 11,43 0.450 5,13 16,76
C062-L8 170,00 +20% 250 15,88 0.625 11,43 0.450 6,05 19,81
C062-M1 89,00 +20% 500 15,88 0.625 11,43 0.450 2,64 4,57
C062-M2 102,00 +20% 500 15,88 0.625 11,43 0.450 3,30 6,10
C062-M3 119,00 +20% 500 15,88 0.625 11,43 0.450 4,45 7,62
C062-M4 123,00 +20% 500 15,88 0.625 11,43 0.450 5,23 9,14
C062-M5 140,00 +20% 500 15,88 0.625 11,43 0.450 6,25 10,67
C062-M6 150,00 +20% 250 15,88 0.625 11,43 0.450 8,05 13,72
C062-M7 180,00 +20% 250 15,88 0.625 11,43 0.450 9,80 16,76
C062-M8 190,00 +20% 250 15,88 0.625 11,43 0.450 11,53 19,81
C062-H1 98,00 +20% 500 15,88 0.625 11,43 0.450 2,59 4,57
C062-H2 110,00 +20% 500 15,88 0.625 11,43 0.450 3,43 6,10
C062-H3 127,00 +20% 500 15,88 0.625 11,43 0.450 4,45 7,62
C062-H4 130,00 +20% 500 15,88 0.625 11,43 0.450 5,21 9,14
C062-H5 150,00 +20% 500 15,88 0.625 11,43 0.450 6,22 10,67
C062-H6 160,00 +20% 250 15,88 0.625 11,43 0.450 8,00 13,72
C062-H7 190,00 +20% 250 15,88 0.625 11,43 0.450 9,91 16,76
C062-H8 200,00 +20% 250 15,88 0.625 11,43 0.450 11,81 19,81
C075-L1 81,00 +20% 500 19,05 0.750 13,97 0.550 3,61 6,35
C075-L2 93,00 +20% 250 19,05 0.750 13,97 0.550 4,75 8,46
C075-L3 106,00 +20% 250 19,05 0.750 13,97 0.550 6,25 10,59
C075-L4 110,00 +20% 250 19,05 0.750 13,97 0.550 7,24 12,70
C075-L5 127,00 +20% 250 19,05 0.750 13,97 0.550 8,84 14,81
C075-L6 140,00 +20% 100 19,05 0.750 13,97 0.550 11,33 19,05
C075-L7 160,00 +20% 100 19,05 0.750 13,97 0.550 14,73 25,40
C075-M1 89,00 +20% 500 19,05 0.750 13,97 0.550 4,04 6,35
C075-M2 102,00 +20% 250 19,05 0.750 13,97 0.550 5,16 8,46
C075-M3 119,00 +20% 250 19,05 0.750 13,97 0.550 6,86 10,59
C075-M4 123,00 +20% 250 19,05 0.750 13,97 0.550 7,98 12,70
C075-M5 140,00 +20% 250 19,05 0.750 13,97 0.550 9,68 14,81
C075-M6 150,00 +20% 100 19,05 0.750 13,97 0.550 12,42 19,05
C075-M7 180,00 +20% 100 19,05 0.750 13,97 0.550 16,48 25,40
C075-H1 98,00 +20% 500 19,05 0.750 13,97 0.550 4,29 6,35
C075-H2 115,00 +20% 250 19,05 0.750 13,97 0.550 5,46 8,46
C075-H3 130,00 +20% 250 19,05 0.750 13,97 0.550 7,39 10,59
C075-H4 140,00 +20% 250 19,05 0.750 13,97 0.550 8,51 12,70
C075-H5 160,00 +20% 250 19,05 0.750 13,97 0.550 10,29 14,81
C075-H6 160,00 +20% 100 19,05 0.750 13,97 0.550 13,36 19,05
C075-H7 200,00 +20% 100 19,05 0.750 13,97 0.550 17,75 25,40
C087-L1 81,00 +20% 250 22,23 0.875 15,24 0.600 2,97 6,35
C087-L2 93,00 +20% 250 22,23 0.875 15,24 0.600 4,01 8,46
C087-L3 106,00 +20% 100 22,23 0.875 15,24 0.600 5,26 10,59
C087-L4 110,00 +20% 100 22,23 0.875 15,24 0.600 6,15 12,70
C087-L5 127,00 +20% 100 22,23 0.875 15,24 0.600 7,29 14,81
C087-L6 140,00 +20% 100 22,23 0.875 15,24 0.600 9,60 19,05
C087-L7 160,00 +20% 50 22,23 0.875 15,24 0.600 12,65 25,40
C087-M1 89,00 +20% 250 22,23 0.875 15,24 0.600 3,15 6,35
C087-M2 102,00 +20% 250 22,23 0.875 15,24 0.600 4,17 8,46
C087-M3 119,00 +20% 100 22,23 0.875 15,24 0.600 5,44 10,59
C087-M4 123,00 +20% 100 22,23 0.875 15,24 0.600 6,40 12,70
C087-M5 140,00 +20% 100 22,23 0.875 15,24 0.600 7,52 14,81
C087-M6 150,00 +20% 100 22,23 0.875 15,24 0.600 9,78 19,05
C087-M7 180,00 +20% 100 22,23 0.875 15,24 0.600 12,93 25,40
C087-H1 98,00 +20% 250 22,23 0.875 15,24 0.600 4,22 6,35
C087-H2 115,00 +20% 250 22,23 0.875 15,24 0.600 5,44 8,46
C087-H3 130,00 +20% 100 22,23 0.875 15,24 0.600 7,06 10,59
C087-H4 140,00 +20% 100 22,23 0.875 15,24 0.600 8,31 12,70
C087-H5 160,00 +20% 100 22,23 0.875 15,24 0.600 10,03 14,81
C087-H6 160,00 +20% 100 22,23 0.875 15,24 0.600 12,95 19,05
C087-H7 200,00 +20% 50 22,23 0.875 15,24 0.600 17,02 25,40
C100-L1 102,00 +20% 250 25,40 1.000 18,54 0.730 2,13 6,35
C100-L2 119,00 +20% 100 25,40 1.000 18,54 0.730 2,74 8,46
C100-L3 140,00 +20% 100 25,40 1.000 18,54 0.730 3,68 10,59
C100-L4 140,00 +20% 100 25,40 1.000 18,54 0.730 4,19 12,70
C100-L5 160,00 +20% 100 25,40 1.000 18,54 0.730 5,11 14,81
C100-L6 180,00 +20% 100 25,40 1.000 18,54 0.730 6,55 19,05
C100-L7 210,00 +20% 50 25,40 1.000 18,54 0.730 8,69 25,40
C100-L8 260,00 +20% 50 25,40 1.000 18,54 0.730 11,30 31,75
C100-L9 280,00 +20% 50 25,40 1.000 18,54 0.730 13,18 38,10
C100-L10 320,00 +20% 50 25,40 1.000 18,54 0.730 16,08 44,45
C100-L11 360,00 +20% 50 25,40 1.000 18,54 0.730 18,03 50,80
C100-M1 115,00 +20% 100 25,40 1.000 18,54 0.730 2,21 6,35
C100-M2 130,00 +20% 100 25,40 1.000 18,54 0.730 2,87 8,46
C100-M3 150,00 +20% 100 25,40 1.000 18,54 0.730 3,76 10,59
C100-M4 160,00 +20% 100 25,40 1.000 18,54 0.730 4,45 12,70
C100-M5 180,00 +20% 100 25,40 1.000 18,54 0.730 5,38 14,81
C100-M6 190,00 +20% 100 25,40 1.000 18,54 0.730 7,01 19,05
C100-M7 230,00 +20% 50 25,40 1.000 18,54 0.730 9,14 25,40
C100-M8 290,00 +20% 50 25,40 1.000 18,54 0.730 11,48 31,75
C100-M9 310,00 +20% 50 25,40 1.000 18,54 0.730 13,94 38,10
C100-M10 360,00 +20% 50 25,40 1.000 18,54 0.730 16,51 44,45
C100-M11 400,00 +20% 50 25,40 1.000 18,54 0.730 18,29 50,80
C100-H1 123,00 +20% 100 25,40 1.000 18,54 0.730 3,33 6,35
C100-H2 140,00 +20% 100 25,40 1.000 18,54 0.730 4,42 8,46
C100-H3 170,00 +20% 100 25,40 1.000 18,54 0.730 5,77 10,59
C100-H4 180,00 +20% 100 25,40 1.000 18,54 0.730 6,76 12,70
C100-H5 200,00 +20% 100 25,40 1.000 18,54 0.730 8,10 14,81
C100-H6 220,00 +20% 100 25,40 1.000 18,54 0.730 10,31 19,05
C100-H7 260,00 +20% 50 25,40 1.000 18,54 0.730 13,74 25,40
C100-H8 310,00 +20% 50 25,40 1.000 18,54 0.730 17,48 31,75
C100-H9 330,00 +20% 50 25,40 1.000 18,54 0.730 20,65 38,10
C100-H10 390,00 +20% 50 25,40 1.000 18,54 0.730 24,31 44,45
C100-H11 450,00 +20% 50 25,40 1.000 18,54 0.730 27,51 50,80
C112-L1 102,00 +20% 100 28,58 1.125 21,59 0.850 3,71 7,62
C112-L2 119,00 +20% 100 28,58 1.125 21,59 0.850 4,72 10,16
C112-L3 140,00 +20% 100 28,58 1.125 21,59 0.850 6,35 12,70
C112-L4 140,00 +20% 100 28,58 1.125 21,59 0.850 7,49 15,24
C112-L5 160,00 +20% 50 28,58 1.125 21,59 0.850 8,74 17,78
C112-L6 170,00 +20% 50 28,58 1.125 21,59 0.850 9,96 20,32
C112-L7 190,00 +20% 50 28,58 1.125 21,59 0.850 12,40 25,40
C112-L8 220,00 +20% 50 28,58 1.125 21,59 0.850 16,74 33,02
C112-L9 270,00 +20% 50 28,58 1.125 21,59 0.850 20,50 40,64
C112-L10 310,00 +20% 50 28,58 1.125 21,59 0.850 25,83 50,80
C112-M1 115,00 +20% 100 28,58 1.125 21,59 0.850 4,06 7,62
C112-M2 130,00 +20% 100 28,58 1.125 21,59 0.850 5,13 10,16
C112-M3 150,00 +20% 100 28,58 1.125 21,59 0.850 6,86 12,70
C112-M4 160,00 +20% 100 28,58 1.125 21,59 0.850 8,08 15,24
C112-M5 180,00 +20% 50 28,58 1.125 21,59 0.850 9,68 17,78
C112-M6 190,00 +20% 50 28,58 1.125 21,59 0.850 10,85 20,32
C112-M7 220,00 +20% 50 28,58 1.125 21,59 0.850 13,61 25,40
C112-M8 250,00 +20% 50 28,58 1.125 21,59 0.850 17,98 33,02
C112-M9 310,00 +20% 50 28,58 1.125 21,59 0.850 21,87 40,64
C112-M10 340,00 +20% 50 28,58 1.125 21,59 0.850 27,64 50,80
C112-H1 123,00 +20% 100 28,58 1.125 21,59 0.850 4,52 7,62
C112-H2 140,00 +20% 100 28,58 1.125 21,59 0.850 5,82 10,16
C112-H3 170,00 +20% 100 28,58 1.125 21,59 0.850 7,70 12,70
C112-H4 180,00 +20% 100 28,58 1.125 21,59 0.850 8,89 15,24
C112-H5 200,00 +20% 50 28,58 1.125 21,59 0.850 10,69 17,78
C112-H6 210,00 +20% 50 28,58 1.125 21,59 0.850 11,94 20,32
C112-H7 240,00 +20% 50 28,58 1.125 21,59 0.850 15,06 25,40
C112-H8 280,00 +20% 50 28,58 1.125 21,59 0.850 19,99 33,02
C112-H9 330,00 +20% 50 28,58 1.125 21,59 0.850 24,28 40,64
C112-H10 370,00 +20% 50 28,58 1.125 21,59 0.850 30,53 50,80
C125-L1 110,00 +20% 100 31,75 1.250 25,40 1.000 2,13 6,35
C125-L2 130,00 +20% 100 31,75 1.250 25,40 1.000 2,87 10,16
C125-L3 140,00 +20% 100 31,75 1.250 25,40 1.000 3,78 12,70
C125-L4 150,00 +20% 100 31,75 1.250 25,40 1.000 4,37 15,24
C125-L5 160,00 +20% 50 31,75 1.250 25,40 1.000 5,26 17,78
C125-L6 190,00 +20% 50 31,75 1.250 25,40 1.000 5,77 20,32
C125-L7 210,00 +20% 50 31,75 1.250 25,40 1.000 7,65 25,40
C125-L8 250,00 +20% 50 31,75 1.250 25,40 1.000 10,03 33,02
C125-L9 270,00 +20% 50 31,75 1.250 25,40 1.000 11,86 40,64
C125-L10 310,00 +20% 50 31,75 1.250 25,40 1.000 15,01 50,80
C125-M1 123,00 +20% 100 31,75 1.250 25,40 1.000 3,15 7,62
C125-M2 140,00 +20% 100 31,75 1.250 25,40 1.000 4,19 10,16
C125-M3 150,00 +20% 100 31,75 1.250 25,40 1.000 5,46 12,70
C125-M4 170,00 +20% 100 31,75 1.250 25,40 1.000 6,43 15,24
C125-M5 180,00 +20% 100 31,75 1.250 25,40 1.000 7,70 17,78
C125-M6 200,00 +20% 50 31,75 1.250 25,40 1.000 8,66 20,32
C125-M7 230,00 +20% 50 31,75 1.250 25,40 1.000 10,85 25,40
C125-M8 270,00 +20% 50 31,75 1.250 25,40 1.000 14,66 33,02
C125-M9 310,00 +20% 50 31,75 1.250 25,40 1.000 17,58 40,64
C125-M10 340,00 +20% 50 31,75 1.250 25,40 1.000 22,00 50,80
C125-H1 130,00 +20% 100 31,75 1.250 25,40 1.000 4,01 7,62
C125-H2 160,00 +20% 100 31,75 1.250 25,40 1.000 5,33 10,16
C125-H3 170,00 +20% 100 31,75 1.250 25,40 1.000 6,91 12,70
C125-H4 190,00 +20% 100 31,75 1.250 25,40 1.000 8,13 15,24
C125-H5 200,00 +20% 50 31,75 1.250 25,40 1.000 9,75 17,78
C125-H6 220,00 +20% 50 31,75 1.250 25,40 1.000 11,00 20,32
C125-H7 260,00 +20% 50 31,75 1.250 25,40 1.000 13,67 25,40
C125-H8 300,00 +20% 50 31,75 1.250 25,40 1.000 18,21 33,02
C125-H9 330,00 +20% 50 31,75 1.250 25,40 1.000 22,30 40,64
C125-H10 370,00 +20% 50 31,75 1.250 25,40 1.000 28,02 50,80
C137-L1 110,00 +20% 40 34,93 1.375 26,16 1.030 1,91 7,62
C137-L2 130,00 +20% 30 34,93 1.375 26,16 1.030 2,51 10,16
C137-L3 140,00 +20% 25 34,93 1.375 26,16 1.030 3,28 12,70
C137-L4 150,00 +20% 20 34,93 1.375 26,16 1.030 3,94 15,24
C137-L5 160,00 +20% 20 34,93 1.375 26,16 1.030 4,55 17,78
C137-L6 190,00 +20% 10 34,93 1.375 26,16 1.030 5,23 20,32
C137-L7 210,00 +20% 10 34,93 1.375 26,16 1.030 6,50 25,40
C137-L8 250,00 +20% 10 34,93 1.375 26,16 1.030 8,66 33,02
C137-L9 270,00 +20% 5 34,93 1.375 26,16 1.030 10,77 40,64
C137-L10 310,00 +20% 5 34,93 1.375 26,16 1.030 13,46 50,80
C137-M1 123,00 +20% 40 34,93 1.375 26,16 1.030 3,61 7,62
C137-M2 140,00 +20% 30 34,93 1.375 26,16 1.030 4,72 10,16
C137-M3 150,00 +20% 25 34,93 1.375 26,16 1.030 6,10 12,70
C137-M4 170,00 +20% 20 34,93 1.375 26,16 1.030 7,14 15,24
C137-M5 180,00 +20% 20 34,93 1.375 26,16 1.030 8,64 17,78
C137-M6 200,00 +20% 10 34,93 1.375 26,16 1.030 9,75 20,32
C137-M7 230,00 +20% 10 34,93 1.375 26,16 1.030 12,34 25,40
C137-M8 270,00 +20% 10 34,93 1.375 26,16 1.030 16,05 33,02
C137-M9 310,00 +20% 5 34,93 1.375 26,16 1.030 20,02 40,64
C137-M10 340,00 +20% 5 34,93 1.375 26,16 1.030 24,94 50,80
C137-H1 130,00 +20% 40 34,93 1.375 26,16 1.030 3,78 7,62
C137-H2 160,00 +20% 30 34,93 1.375 26,16 1.030 4,80 10,16
C137-H3 170,00 +20% 25 34,93 1.375 26,16 1.030 6,27 12,70
C137-H4 190,00 +20% 20 34,93 1.375 26,16 1.030 7,29 15,24
C137-H5 200,00 +20% 20 34,93 1.375 26,16 1.030 8,71 17,78
C137-H6 220,00 +20% 10 34,93 1.375 26,16 1.030 9,91 20,32
C137-H7 260,00 +20% 10 34,93 1.375 26,16 1.030 12,45 25,40
C137-H8 300,00 +20% 10 34,93 1.375 26,16 1.030 16,41 33,02
C137-H9 330,00 +20% 5 34,93 1.375 26,16 1.030 20,14 40,64
C137-H10 370,00 +20% 5 34,93 1.375 26,16 1.030 25,40 50,80
C150-L1 110,00 +20% 40 38,10 1.500 28,96 1.140 3,28 7,62
C150-L2 140,00 +20% 30 38,10 1.500 28,96 1.140 4,17 10,16
C150-L3 140,00 +20% 25 38,10 1.500 28,96 1.140 5,41 12,70
C150-L4 150,00 +20% 20 38,10 1.500 28,96 1.140 6,27 15,24
C150-L5 170,00 +20% 20 38,10 1.500 28,96 1.140 7,65 17,78
C150-L6 190,00 +20% 10 38,10 1.500 28,96 1.140 8,56 20,32
C150-L7 210,00 +20% 10 38,10 1.500 28,96 1.140 10,92 25,40
C150-L8 250,00 +20% 10 38,10 1.500 28,96 1.140 14,35 33,02
C150-L9 300,00 +20% 5 38,10 1.500 28,96 1.140 17,63 40,64
C150-L10 330,00 +20% 5 38,10 1.500 28,96 1.140 22,00 50,80
C150-M1 123,00 +20% 40 38,10 1.500 28,96 1.140 3,10 7,62
C150-M2 150,00 +20% 30 38,10 1.500 28,96 1.140 4,01 10,16
C150-M3 160,00 +20% 25 38,10 1.500 28,96 1.140 5,23 12,70
C150-M4 170,00 +20% 20 38,10 1.500 28,96 1.140 6,12 15,24
C150-M5 190,00 +20% 20 38,10 1.500 28,96 1.140 7,39 17,78
C150-M6 200,00 +20% 10 38,10 1.500 28,96 1.140 8,23 20,32
C150-M7 230,00 +20% 10 38,10 1.500 28,96 1.140 10,39 25,40
C150-M8 270,00 +20% 10 38,10 1.500 28,96 1.140 13,72 33,02
C150-M9 330,00 +20% 5 38,10 1.500 28,96 1.140 16,69 40,64
C150-M10 370,00 +20% 5 38,10 1.500 28,96 1.140 21,21 50,80
C150-H1 130,00 +20% 40 38,10 1.500 28,96 1.140 4,22 7,62
C150-H2 160,00 +20% 30 38,10 1.500 28,96 1.140 5,49 10,16
C150-H3 180,00 +20% 25 38,10 1.500 28,96 1.140 7,06 12,70
C150-H4 190,00 +20% 20 38,10 1.500 28,96 1.140 8,36 15,24
C150-H5 210,00 +20% 20 38,10 1.500 28,96 1.140 9,91 17,78
C150-H6 220,00 +20% 10 38,10 1.500 28,96 1.140 11,25 20,32
C150-H7 260,00 +20% 10 38,10 1.500 28,96 1.140 14,10 25,40
C150-H8 300,00 +20% 10 38,10 1.500 28,96 1.140 18,44 33,02
C150-H9 360,00 +20% 5 38,10 1.500 28,96 1.140 22,61 40,64
C150-H10 420,00 +20% 5 38,10 1.500 28,96 1.140 28,42 50,80
C175-L1 110,00 +20% 40 44,45 1.750 34,04 1.340 3,94 9,53
C175-L2 140,00 +20% 30 44,45 1.750 34,04 1.340 5,08 12,70
C175-L3 140,00 +20% 20 44,45 1.750 34,04 1.340 6,73 15,88
C175-L4 150,00 +20% 20 44,45 1.750 34,04 1.340 7,87 19,05
C175-L5 170,00 +20% 10 44,45 1.750 34,04 1.340 9,32 22,10
C175-L6 190,00 +20% 10 44,45 1.750 34,04 1.340 10,54 25,40
C175-L7 210,00 +20% 10 44,45 1.750 34,04 1.340 13,28 31,75
C175-L8 230,00 +20% 10 44,45 1.750 34,04 1.340 16,21 38,10
C175-L9 260,00 +20% 5 44,45 1.750 34,04 1.340 18,72 44,45
C175-L10 300,00 +20% 5 44,45 1.750 34,04 1.340 21,44 50,80
C175-M1 123,00 +20% 40 44,45 1.750 34,04 1.340 4,78 9,53
C175-M2 150,00 +20% 30 44,45 1.750 34,04 1.340 6,20 12,70
C175-M3 160,00 +20% 20 44,45 1.750 34,04 1.340 8,00 15,88
C175-M4 170,00 +20% 20 44,45 1.750 34,04 1.340 9,50 19,05
C175-M5 190,00 +20% 10 44,45 1.750 34,04 1.340 11,48 22,10
C175-M6 200,00 +20% 10 44,45 1.750 34,04 1.340 12,83 25,40
C175-M7 230,00 +20% 10 44,45 1.750 34,04 1.340 15,98 31,75
C175-M8 250,00 +20% 10 44,45 1.750 34,04 1.340 19,51 38,10
C175-M9 290,00 +20% 5 44,45 1.750 34,04 1.340 22,83 44,45
C175-M10 330,00 +20% 5 44,45 1.750 34,04 1.340 26,06 50,80
C175-H1 130,00 +20% 40 44,45 1.750 34,04 1.340 5,89 9,53
C175-H2 160,00 +20% 30 44,45 1.750 34,04 1.340 7,98 12,70
C175-H3 180,00 +20% 20 44,45 1.750 34,04 1.340 10,39 15,88
C175-H4 190,00 +20% 20 44,45 1.750 34,04 1.340 12,24 19,05
C175-H5 210,00 +20% 10 44,45 1.750 34,04 1.340 14,66 22,10
C175-H6 220,00 +20% 10 44,45 1.750 34,04 1.340 16,54 25,40
C175-H7 260,00 +20% 10 44,45 1.750 34,04 1.340 20,65 31,75
C175-H8 280,00 +20% 10 44,45 1.750 34,04 1.340 24,89 38,10
C175-H9 320,00 +20% 5 44,45 1.750 34,04 1.340 29,13 44,45
C175-H10 360,00 +20% 5 44,45 1.750 34,04 1.340 33,45 50,80
C200-L1 115,00 +20% 40 50,80 2.000 40,64 1.600 2,39 9,53
C200-L2 140,00 +20% 30 50,80 2.000 40,64 1.600 3,05 12,70
C200-L3 160,00 +20% 20 50,80 2.000 40,64 1.600 4,01 15,88
C200-L4 160,00 +20% 20 50,80 2.000 40,64 1.600 4,55 19,05
C200-L5 170,00 +20% 10 50,80 2.000 40,64 1.600 5,51 22,10
C200-L6 190,00 +20% 10 50,80 2.000 40,64 1.600 6,17 25,40
C200-L7 220,00 +20% 10 50,80 2.000 40,64 1.600 7,77 31,75
C200-L8 250,00 +20% 10 50,80 2.000 40,64 1.600 9,27 38,10
C200-L9 290,00 +20% 5 50,80 2.000 40,64 1.600 11,00 44,45
C200-L10 300,00 +20% 5 50,80 2.000 40,64 1.600 12,45 50,80
C200-M1 127,00 +20% 40 50,80 2.000 40,64 1.600 3,56 9,53
C200-M2 150,00 +20% 30 50,80 2.000 40,64 1.600 4,67 12,70
C200-M3 170,00 +20% 20 50,80 2.000 40,64 1.600 6,22 15,88
C200-M4 180,00 +20% 20 50,80 2.000 40,64 1.600 7,06 19,05
C200-M5 190,00 +20% 10 50,80 2.000 40,64 1.600 8,76 22,10
C200-M6 220,00 +20% 10 50,80 2.000 40,64 1.600 10,03 25,40
C200-M7 250,00 +20% 10 50,80 2.000 40,64 1.600 12,65 31,75
C200-M8 280,00 +20% 10 50,80 2.000 40,64 1.600 15,06 38,10
C200-M9 320,00 +20% 5 50,80 2.000 40,64 1.600 17,63 44,45
C200-M10 330,00 +20% 5 50,80 2.000 40,64 1.600 20,32 50,80
C200-H1 140,00 +20% 40 50,80 2.000 40,64 1.600 5,00 9,53
C200-H2 160,00 +20% 30 50,80 2.000 40,64 1.600 6,55 12,70
C200-H3 190,00 +20% 20 50,80 2.000 40,64 1.600 8,43 15,88
C200-H4 200,00 +20% 20 50,80 2.000 40,64 1.600 9,88 19,05
C200-H5 210,00 +20% 10 50,80 2.000 40,64 1.600 11,81 22,10
C200-H6 240,00 +20% 10 50,80 2.000 40,64 1.600 13,34 25,40
C200-H7 280,00 +20% 10 50,80 2.000 40,64 1.600 16,79 31,75
C200-H8 310,00 +20% 10 50,80 2.000 40,64 1.600 19,84 38,10
C200-H9 350,00 +20% 5 50,80 2.000 40,64 1.600 23,90 44,45
C200-H10 360,00 +20% 5 50,80 2.000 40,64 1.600 27,15 50,80

Catalogue guide index

Wave springs Technical Manual

Linear springs technical manual
