Available materials: Steel Stainless steel
NSSR NESTED WAVE springs
Inches series
Inches series
Material: Carbon steel
SAE 1070-1090
SURFACE FINISHES
Oil dipped
Example of designation:
NSSR-0050-L2

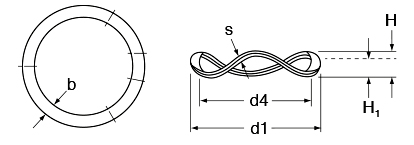

d1 =bore diameter
d4 =shaft diameter
S=thickness
H=free height
H1=work height
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging | d1 bore diameter mm | d1 bore diameter inch | d4 shaft diameter mm | d4 shaft diameter inch | H1 work height mm | H free height mm |
|---|---|---|---|---|---|---|---|---|
| NSSR-0050-L2 | on demand | - | 12,70 | 0.500 | 9,02 | 0.355 | 1,47 | 2,01 |
| NSSR-0050-L3 | on demand | - | 12,70 | 0.500 | 9,02 | 0.355 | 1,68 | 2,21 |
| NSSR-0062-L2 | on demand | - | 15,88 | 0.625 | 11,30 | 0.445 | 1,50 | 2,36 |
| NSSR-0062-L3 | on demand | - | 15,88 | 0.625 | 11,30 | 0.445 | 1,73 | 2,79 |
| NSSR-0075-L2 | on demand | - | 19,05 | 0.750 | 13,28 | 0.523 | 1,83 | 2,92 |
| NSSR-0075-L3 | on demand | - | 19,05 | 0.750 | 13,28 | 0.523 | 2,08 | 3,20 |
| NSSR-0087-L2 | on demand | - | 22,23 | 0.875 | 15,88 | 0.625 | 1,88 | 3,38 |
| NSSR-0087-L3 | on demand | - | 22,23 | 0.875 | 15,88 | 0.625 | 2,18 | 3,56 |
| NSSR-0100-L2 | on demand | - | 25,40 | 1.000 | 18,82 | 0.741 | 1,88 | 4,83 |
| NSSR-0100-L3 | on demand | - | 25,40 | 1.000 | 18,82 | 0.741 | 2,18 | 5,13 |
| NSSR-0112-L2 | on demand | - | 28,58 | 1.125 | 20,50 | 0.807 | 2,34 | 4,17 |
| NSSR-0112-L3 | on demand | - | 28,58 | 1.125 | 20,50 | 0.807 | 2,69 | 4,52 |
| NSSR-0125-L2 | on demand | - | 31,75 | 1.250 | 23,39 | 0.921 | 2,39 | 4,19 |
| NSSR-0125-L3 | on demand | - | 31,75 | 1.250 | 23,39 | 0.921 | 2,79 | 4,60 |
| NSSR-0137-L2 | on demand | - | 34,93 | 1.375 | 26,24 | 1.033 | 2,39 | 5,16 |
| NSSR-0137-L3 | on demand | - | 34,93 | 1.375 | 26,24 | 1.033 | 2,79 | 5,56 |
| NSSR-0150-L2 | on demand | - | 38,10 | 1.500 | 28,85 | 1.136 | 2,44 | 5,00 |
| NSSR-0150-L3 | on demand | - | 38,10 | 1.500 | 28,85 | 1.136 | 2,90 | 5,46 |
| NSSR-0162-L2 | on demand | - | 41,28 | 1.625 | 31,73 | 1.249 | 2,44 | 6,10 |
| NSSR-0162-L3 | on demand | - | 41,28 | 1.625 | 31,73 | 1.249 | 2,90 | 6,55 |
| NSSR-0175-L2 | on demand | - | 44,45 | 1.750 | 35,31 | 1.390 | 2,44 | 4,04 |
| NSSR-0175-L3 | on demand | - | 44,45 | 1.750 | 35,31 | 1.390 | 2,90 | 4,50 |
| NSSR-0187-L2 | on demand | - | 47,63 | 1.875 | 38,28 | 1.507 | 2,44 | 4,60 |
| NSSR-0187-L3 | on demand | - | 47,63 | 1.875 | 38,28 | 1.507 | 2,90 | 5,05 |
| NSSR-0200-L2 | on demand | - | 50,80 | 2.000 | 41,30 | 1.626 | 2,97 | 4,11 |
| NSSR-0200-L3 | on demand | - | 50,80 | 2.000 | 41,30 | 1.626 | 3,58 | 4,72 |
| NSSR-0212-L2 | on demand | - | 53,98 | 2.125 | 44,27 | 1.743 | 2,97 | 4,47 |
| NSSR-0212-L3 | on demand | - | 53,98 | 2.125 | 44,27 | 1.743 | 3,58 | 5,08 |
| NSSR-0225-L2 | on demand | - | 57,15 | 2.250 | 47,32 | 1.863 | 2,97 | 4,90 |
| NSSR-0225-L3 | on demand | - | 57,15 | 2.250 | 47,32 | 1.863 | 3,58 | 5,51 |
| NSSR-0237-L2 | on demand | - | 60,33 | 2.375 | 49,89 | 1.964 | 2,97 | 5,18 |
| NSSR-0237-L3 | on demand | - | 60,33 | 2.375 | 49,89 | 1.964 | 3,58 | 5,79 |
| NSSR-0250-L2 | on demand | - | 63,50 | 2.500 | 51,92 | 2.044 | 2,97 | 5,33 |
| NSSR-0250-L3 | on demand | - | 63,50 | 2.500 | 51,92 | 2.044 | 3,58 | 5,94 |
| NSSR-0262-L2 | on demand | - | 66,68 | 2.625 | 54,84 | 2.159 | 2,97 | 5,87 |
| NSSR-0262-L3 | on demand | - | 66,68 | 2.625 | 54,84 | 2.159 | 3,58 | 6,48 |
| NSSR-0275-L2 | on demand | - | 69,85 | 2.750 | 57,94 | 2.281 | 3,53 | 5,21 |
| NSSR-0275-L3 | on demand | - | 69,85 | 2.750 | 57,94 | 2.281 | 4,29 | 5,97 |
| NSSR-0287-L2 | on demand | - | 73,03 | 2.875 | 61,01 | 2.402 | 3,53 | 5,59 |
| NSSR-0287-L3 | on demand | - | 73,03 | 2.875 | 61,01 | 2.402 | 4,29 | 6,35 |
| NSSR-0300-L2 | on demand | - | 76,20 | 3.000 | 63,98 | 2.519 | 3,53 | 5,99 |
| NSSR-0300-L3 | on demand | - | 76,20 | 3.000 | 63,98 | 2.519 | 4,29 | 6,76 |
| NSSR-0312-L2 | on demand | - | 79,38 | 3.125 | 66,80 | 2.630 | 3,53 | 6,45 |
| NSSR-0312-L3 | on demand | - | 79,38 | 3.125 | 66,80 | 2.630 | 4,29 | 7,21 |
| NSSR-0325-L2 | on demand | - | 82,55 | 3.250 | 67,87 | 2.672 | 3,53 | 6,12 |
| NSSR-0325-L3 | on demand | - | 82,55 | 3.250 | 67,87 | 2.672 | 4,29 | 6,88 |
| NSSR-0337-L2 | on demand | - | 85,73 | 3.375 | 70,89 | 2.791 | 3,53 | 6,58 |
| NSSR-0337-L3 | on demand | - | 85,73 | 3.375 | 70,89 | 2.791 | 4,29 | 7,34 |
| NSSR-0350-L2 | on demand | - | 88,90 | 3.500 | 73,86 | 2.908 | 3,53 | 7,11 |
| NSSR-0350-L3 | on demand | - | 88,90 | 3.500 | 73,86 | 2.908 | 4,29 | 7,87 |
| NSSR-0362-L2 | on demand | - | 92,08 | 3.625 | 76,86 | 3.026 | 3,53 | 7,70 |
| NSSR-0362-L3 | on demand | - | 92,08 | 3.625 | 76,86 | 3.026 | 4,29 | 8,46 |
| NSSR-0375-L2 | on demand | - | 95,25 | 3.750 | 79,78 | 3.141 | 3,53 | 8,36 |
| NSSR-0375-L3 | on demand | - | 95,25 | 3.750 | 79,78 | 3.141 | 4,29 | 9,12 |
| NSSR-0387-L2 | on demand | - | 98,43 | 3.875 | 82,68 | 3.255 | 3,53 | 9,07 |
| NSSR-0387-L3 | on demand | - | 98,43 | 3.875 | 82,68 | 3.255 | 4,29 | 9,83 |
| NSSR-0400-L2 | on demand | - | 101,60 | 4.000 | 86,94 | 3.423 | 3,53 | 5,49 |
| NSSR-0400-L3 | on demand | - | 101,60 | 4.000 | 86,94 | 3.423 | 4,29 | 6,25 |
