Available materials: Acciaio Zincato Inox
LOCK washers
UNI 6599
ex DIN 432 With notch
UNI 6599
ex DIN 432 With notch
Material: Stainless Steel AISI 304
Example of designation:
M 4 STAINLESS STEEL - DIN 432

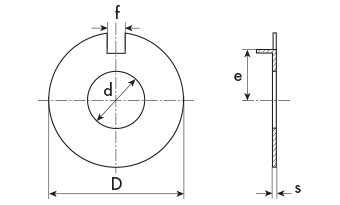

d=inner diameter D=external diameter s=thickness f=notch width e=notch axle spacing
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging |
For screw M |
d | D | ~e | f | s |
|---|---|---|---|---|---|---|---|---|
| 6 INOX | 300,00 | 1.000 | 6 | 6,4 | 18,0 | 7,0 | 3,5 | 0,5 |
| 8 INOX | 400,00 | 1.000 | 8 | 8,4 | 23,0 | 9,0 | 3,5 | 0,5 |
| 10 INOX | 500,00 | 1.000 | 10 | 10,5 | 26,0 | 10,0 | 4,5 | 0,5 |
| 12 INOX | 600,00 | 500 | 12 | 13,0 | 29,0 | 10,5 | 4,5 | 1,0 |
| 14 INOX | 700,00 | 500 | 14 | 15,0 | 33,0 | 12,5 | 4,5 | 1,0 |
| 16 INOX | 800,00 | 500 | 16 | 17,0 | 40,0 | 15,0 | 5,5 | 1,0 |
| 18 INOX | 900,00 | 250 | 18 | 19,0 | 40,0 | 15,0 | 6,0 | 1,0 |
| 20 INOX | 1.000,00 | 250 | 20 | 21,0 | 45,0 | 17,5 | 6,0 | 1,0 |
