Available materials: Steel Zinc Plated Stainless steel
LOCK washers
UNI 6599
ex DIN 432 With notch
UNI 6599
ex DIN 432 With notch
Material: Steel
Example of designation:
M 4 - DIN 432

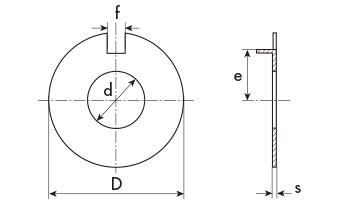

d=inner diameter
D=external diameter
s=thickness
f=notch width
e=notch axle spacing
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging |
For screw M |
d | D | ~e | f | s |
|---|---|---|---|---|---|---|---|---|
| 5 | 80,00 | 1.000 | 5 | 5,3 | 17,0 | 7,0 | 3,5 | 0,4 |
| 6 | 90,00 | 1.000 | 6 | 6,4 | 18,0 | 7,0 | 3,5 | 0,5 |
| 8 | 95,00 | 1.000 | 8 | 8,4 | 23,0 | 9,0 | 3,5 | 0,5 |
| 10 | 100,00 | 1.000 | 10 | 10,5 | 26,0 | 10,0 | 4,5 | 0,5 |
| 12 | 110,00 | 500 | 12 | 13,0 | 29,0 | 10,5 | 4,5 | 1,0 |
| 14 | 120,00 | 500 | 14 | 15,0 | 33,0 | 12,5 | 4,5 | 1,0 |
| 16 | 125,00 | 500 | 16 | 17,0 | 40,0 | 15,0 | 5,5 | 1,0 |
| 20 | 130,00 | 250 | 20 | 21,0 | 45,0 | 17,5 | 6,0 | 1,0 |
