Available materials: Zincato Inox
RASV washers
DIN 25201 Wedge-locking
DIN 25201 Wedge-locking
Material: Spring steel
27MnCrB5-2; 1.7182 or similar
SURFACE TREATMENT
Zinc plated
Washers hardness
Spring Steel ≥ 465HV1
Mating surfaces hardness has to be less than washers hardness in order to guarantee the unique mechanical locking function of these washers.
Prices and packagings are referred to a pairs of washers.
Example of designation:
RASV 3 ZINC PLATED

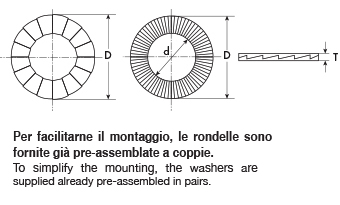

d=inner diameter
D=external diameter
T=thickness
= Prior to sale
| Description | Price in Euro/100 VAT not included |
Packaging |
For screw M |
d | D | T |
|---|---|---|---|---|---|---|
| RASV 3 | 79,00 | 200 | 3 | 3,4 | 7,0 | 1,80 |
| RASV 3,5 | 80,00 | 200 | 3,5 | 3,9 | 7,6 | 1,80 |
| RASV 4 | 81,00 | 200 | 4 | 4,4 | 7,6 | 1,80 |
| RASV 5 | 82,00 | 200 | 5 | 5,4 | 9,0 | 1,80 |
| RASV 6 | 83,00 | 200 | 6 | 6,5 | 10,8 | 1,80 |
| RASV 1/4" | 84,00 | 200 | 1/4" | 7,2 | 11,5 | 2,50 |
| RASV 8 | 85,00 | 200 | 8 | 8,7 | 13,5 | 2,50 |
| RASV 3/8" | 87,00 | 200 | 3/8" | 10,3 | 16,6 | 2,50 |
| RASV 10 | 89,00 | 200 | 10 | 10,7 | 16,6 | 2,50 |
| RASV 11 (7/16") | 140,00 | 200 | 11 (7/16") | 11,4 | 18,5 | 2,50 |
| RASV 12 | 150,00 | 200 | 12 | 13,0 | 19,5 | 2,50 |
| RASV 1/2" | 160,00 | 200 | 1/2" | 13,5 | 19,5 | 2,50 |
| RASV 14 (9/16") | 220,00 | 100 | 14 (9/16") | 15,2 | 23,0 | 3,40 |
| RASV 16 (5/8") | 240,00 | 100 | 16 (5/8") | 17,0 | 25,4 | 3,40 |
| RASV 18 | 330,00 | 100 | 18 | 19,5 | 29,0 | 3,40 |
| RASV 3/4" | 340,00 | 100 | 3/4" | 20,0 | 30,7 | 3,40 |
| RASV 20 (5/8") | 350,00 | 100 | 20 (5/8") | 21,4 | 30,7 | 3,40 |
| RASV 22 (7/8") | 500,00 | 100 | 22 (7/8") | 23,4 | 34,5 | 3,40 |
| RASV 24 | 580,00 | 100 | 24 | 25,3 | 39,0 | 3,40 |
| RASV 1" | 600,00 | 100 | 1" | 27,9 | 39,0 | 3,40 |
| RASV 27 | 900,00 | 50 | 27 | 28,4 | 42,0 | 5,80 |
| RASV 30 (1.1/8") | 950,00 | 50 | 30 (1.1/8") | 31,4 | 47,0 | 5,80 |
| RASV 33 (1.1/4") | 1.000,00 | 25 | 33 (1.1/4") | 34,4 | 48,5 | 5,80 |
| RASV 36 (1.3/8") | 1.300,00 | 25 | 36 (1.3/8") | 37,4 | 55,0 | 5,80 |
| RASV 39 (1.1/2") | 1.400,00 | 25 | 39 (1.1/2") | 40,4 | 58,5 | 5,80 |
| RASV 42 | 1.600,00 | 25 | 42 | 43,2 | 63,0 | 5,80 |
