XDS per alberi
Carichi leggeri - In pollici
Carichi leggeri - In pollici
Materiale: Acciaio al Carbonio
SAE 1070-1090
TRATTAMENTO SUPERFICIALE
Oliatura
Esempio di designazione:
XDS-50

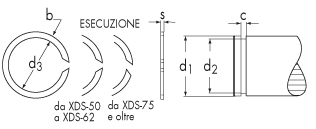

d1=diametro albero
d2=diametro gola
d3=diametro interno anello
s=spessore
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | d1 | d1 inch | s inch | d3 | d2 |
|---|---|---|---|---|---|---|---|
| XDS-50 | 39,00 +20% | 1.000 | 12,70 | 0.500 | 0.035 | 11,81 | 12,04 |
| XDS-62 | 40,00 +20% | 1.000 | 15,88 | 0.625 | 0.035 | 14,91 | 15,16 |
| XDS-75 | 43,00 +20% | 1.000 | 19,05 | 0.750 | 0.042 | 17,88 | 18,19 |
| XDS-87 | 44,00 +20% | 500 | 22,23 | 0.875 | 0.042 | 20,90 | 21,16 |
| XDS-100 | 46,00 +20% | 500 | 25,40 | 1.000 | - | 25,25 | 24,23 |
| XDS-112 | 47,00 +20% | 500 | 28,58 | 1.125 | 0.042 | 27,05 | 27,36 |
| XDS-118 | 48,00 +20% | 500 | 30,15 | 1.187 | 0.042 | 28,45 | 28,83 |
| XDS-125 | 50,00 +20% | 500 | 31,75 | 1.250 | 0.042 | 29,95 | 30,33 |
| XDS-131 | 51,00 +20% | 500 | 33,32 | 1.312 | 0.042 | 31,29 | 31,80 |
| XDS-137 | 54,00 +20% | 250 | 34,93 | 1.375 | 0.042 | 32,74 | 33,25 |
| XDS-143 | 55,00 +20% | 250 | 36,50 | 1.437 | 0.042 | 34,26 | 34,77 |
| XDS-150 | 58,00 +20% | 250 | 38,10 | 1.500 | 0.042 | 35,81 | 36,32 |
| XDS-162 | 88,00 +20% | 250 | 41,28 | 1.625 | 0.042 | 38,61 | 39,24 |
| XDS-168 | 92,00 +20% | 250 | 42,85 | 1.687 | 0.042 | 40,18 | 40,82 |
| XDS-175 | 93,00 +20% | 250 | 44,45 | 1.750 | 0.042 | 41,78 | 42,42 |
| XDS-193 | 100,00 +20% | 100 | 49,20 | 1.937 | 0.042 | 46,53 | 47,17 |
| XDS-200 | 128,00 +20% | 100 | 50,80 | 2.000 | 0.042 | 48,13 | 48,77 |
| XDS-218 | 130,00 +20% | 100 | 55,55 | 2.187 | 0.042 | 52,88 | 53,52 |
| XDS-225 | 140,00 +20% | 100 | 57,15 | 2.250 | 0.042 | 54,48 | 55,12 |
| XDS-237 | 140,00 +20% | 100 | 60,33 | 2.375 | 0.042 | 57,66 | 58,29 |
| XDS-250 | 140,00 +20% | 100 | 63,50 | 2.500 | 0.042 | 60,71 | 61,47 |
| XDS-275 | 150,00 +20% | 100 | 69,85 | 2.750 | 0.062 | 65,94 | 66,70 |
| XDS-293 | 160,00 +20% | 100 | 74,60 | 2.937 | 0.062 | 70,69 | 71,45 |
| XDS-300 | 180,00 +20% | 100 | 76,20 | 3.000 | 0.062 | 72,29 | 73,05 |
| XDS-312 | 180,00 +20% | 100 | 79,38 | 3.125 | 0.062 | 75,31 | 76,20 |
| XDS-325 | 190,00 +20% | 100 | 82,55 | 3.250 | 0.062 | 78,49 | 79,38 |
| XDS-337 | 240,00 +20% | 50 | 85,73 | 3.375 | 0.062 | 81,66 | 82,55 |
| XDS-350 | 240,00 +20% | 50 | 88,90 | 3.500 | 0.062 | 84,84 | 85,73 |
| XDS-375 | 260,00 +20% | 50 | 95,25 | 3.750 | 0.078 | 90,68 | 91,69 |
| XDS-400 | 440,00 +20% | 25 | 101,60 | 4.000 | 0.078 | 97,03 | 98,04 |
| XDS-425 | 480,00 +20% | 25 | 107,95 | 4.250 | 0.078 | 103,38 | 104,39 |
| XDS-450 | 540,00 +20% | 25 | 114,30 | 4.500 | 0.078 | 109,73 | 110,74 |
| XDS-475 | 590,00 +20% | 25 | 120,65 | 4.750 | 0.078 | 115,82 | 117,09 |
| XDS-500 | 640,00 +20% | 25 | 127,00 | 5.000 | 0.078 | 121,92 | 123,44 |
| XDS-550 | 680,00 +20% | 25 | 139,70 | 5.500 | 0.093 | 134,11 | 135,64 |
| XDS-600 | 730,00 +20% | 25 | 152,40 | 6.000 | 0.093 | 146,69 | 148,34 |
| XDS-650 | 830,00 +20% | 25 | 165,10 | 6.500 | 0.093 | 159,26 | 161,04 |
| XDS-700 | 990,00 +20% | 25 | 177,80 | 7.000 | 0.093 | 171,83 | 173,74 |
| XDS-750 | 1.200,00 +20% | 25 | 190,50 | 7.500 | 0.109 | 184,02 | 185,93 |
| XDS-800 | 1.400,00 +20% | 25 | 203,20 | 8.000 | 0.109 | 196,60 | 198,63 |
