Materiali disponibili: Acciaio Inox AISI 302 Inox AISI 316
WST per alberi
Carichi medio-pesanti - In pollici
Carichi medio-pesanti - In pollici
Materiale: Acciaio al Carbonio
SAE 1070-1090
TRATTAMENTO SUPERFICIALE
Oliatura
Esempio di designazione:
WST-46

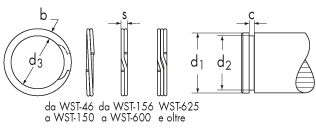

d1=diametro albero
d2=diametro gola
d3=diametro interno anello
s=spessore
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | d1 | d1 inch | s inch | d3 | d2 |
|---|---|---|---|---|---|---|---|
| WST-46 | 22,00 +20% | 1.000 | 11,91 | 0.469 | 0.025 | 11,07 | 11,25 |
| WST-50 | 19,20 +20% | 1.000 | 12,70 | 0.500 | 0.035 | 11,91 | 12,04 |
| WST-55 | 20,00 +20% | 1.000 | 14,00 | 0.551 | 0.035 | 13,16 | 13,31 |
| WST-56 | 20,00 +20% | 1.000 | 14,27 | 0.562 | 0.035 | 13,44 | 13,59 |
| WST-59 | 20,00 +20% | 1.000 | 15,09 | 0.594 | 0.035 | 14,20 | 14,35 |
| WST-62 | 20,00 +20% | 1.000 | 15,88 | 0.625 | 0.035 | 14,99 | 15,14 |
| WST-66 | 20,00 +20% | 1.000 | 16,99 | 0.669 | 0.035 | 16,00 | 16,21 |
| WST-68 | 20,00 +20% | 1.000 | 17,48 | 0.688 | 0.042 | 16,46 | 16,64 |
| WST-75 | 21,00 +20% | 1.000 | 19,05 | 0.750 | 0.042 | 17,98 | 18,16 |
| WST-78 | 22,00 +20% | 1.000 | 19,84 | 0.781 | 0.042 | 18,75 | 18,92 |
| WST-81 | 22,00 +20% | 1.000 | 20,62 | 0.812 | 0.042 | 19,51 | 19,71 |
| WST-87 | 22,00 +20% | 500 | 22,23 | 0.875 | 0.042 | 21,01 | 21,21 |
| WST-93 | 23,00 +20% | 500 | 23,83 | 0.938 | 0.042 | 22,50 | 22,71 |
| WST-98 | 23,00 +20% | 500 | 24,99 | 0.984 | 0.042 | 23,72 | 23,88 |
| WST-100 | 24,00 +20% | 500 | 25,40 | 1.000 | 0.042 | 24,05 | 24,26 |
| WST-102 | 24,00 +20% | 500 | 25,98 | 1.023 | 0.042 | 24,61 | 24,82 |
| WST-106 | 24,00 +20% | 500 | 26,97 | 1.062 | 0.050 | 25,53 | 25,78 |
| WST-112 | 25,00 +20% | 500 | 28,58 | 1.125 | 0.050 | 27,03 | 27,31 |
| WST-118 | 26,00 +20% | 500 | 30,18 | 1.188 | 0.050 | 28,60 | 28,83 |
| WST-125 | 27,00 +20% | 500 | 31,75 | 1.250 | 0.050 | 30,07 | 30,35 |
| WST-131 | 30,00 +20% | 500 | 33,32 | 1.312 | 0.050 | 31,50 | 31,75 |
| WST-137 | 31,00 +20% | 250 | 34,93 | 1.375 | 0.050 | 32,97 | 33,27 |
| WST-143 | 31,00 +20% | 250 | 36,53 | 1.438 | 0.050 | 34,52 | 34,80 |
| WST-150 | 36,00 +20% | 250 | 38,10 | 1.500 | 0.050 | 36,04 | 36,32 |
| WST-156 | 59,00 +20% | 250 | 39,67 | 1.562 | 0.062 | 37,49 | 37,85 |
| WST-162 | 60,00 +20% | 250 | 41,28 | 1.625 | 0.062 | 39,04 | 39,37 |
| WST-168 | 60,00 +20% | 250 | 42,85 | 1.687 | 0.062 | 40,59 | 40,89 |
| WST-175 | 60,00 +20% | 250 | 44,45 | 1.750 | 0.062 | 42,09 | 42,42 |
| WST-177 | 60,00 +20% | 100 | 44,98 | 1.771 | 0.062 | 42,57 | 42,90 |
| WST-181 | 60,00 +20% | 100 | 46,02 | 1.812 | 0.062 | 43,54 | 43,94 |
| WST-187 | 60,00 +20% | 100 | 47,63 | 1.875 | 0.062 | 45,06 | 45,47 |
| WST-196 | 60,00 +20% | 100 | 50,01 | 1.969 | 0.062 | 47,35 | 47,73 |
| WST-200 | 62,00 +20% | 100 | 50,80 | 2.000 | 0.062 | 48,11 | 48,51 |
| WST-206 | 107,00 +20% | 100 | 52,37 | 2.062 | 0.078 | 49,66 | 50,04 |
| WST-212 | 109,00 +20% | 100 | 53,98 | 2.125 | 0.078 | 51,10 | 51,49 |
| WST-215 | 109,00 +20% | 100 | 54,76 | 2.156 | 0.078 | 51,84 | 52,25 |
| WST-225 | 110,00 +20% | 100 | 57,15 | 2.250 | 0.078 | 54,08 | 54,48 |
| WST-231 | 112,00 +20% | 100 | 58,72 | 2.312 | 0.078 | 55,58 | 56,01 |
| WST-237 | 113,00 +20% | 100 | 60,33 | 2.375 | 0.078 | 57,10 | 57,53 |
| WST-243 | 114,00 +20% | 100 | 61,90 | 2.437 | 0.078 | 58,60 | 59,06 |
| WST-250 | 190,00 +20% | 100 | 63,50 | 2.500 | 0.078 | 60,10 | 60,58 |
| WST-255 | 200,00 +20% | 100 | 65,00 | 2.559 | 0.078 | 61,57 | 62,05 |
| WST-262 | 200,00 +20% | 100 | 66,68 | 2.625 | 0.078 | 63,12 | 63,63 |
| WST-268 | 200,00 +20% | 100 | 68,25 | 2.687 | 0.078 | 64,64 | 65,15 |
| WST-275 | 230,00 +20% | 100 | 69,85 | 2.750 | 0.093 | 66,14 | 66,68 |
| WST-287 | 230,00 +20% | 100 | 73,03 | 2.875 | 0.093 | 69,14 | 69,65 |
| WST-293 | 240,00 +20% | 100 | 74,60 | 2.937 | 0.093 | 70,61 | 71,15 |
| WST-300 | 240,00 +20% | 100 | 76,20 | 3.000 | 0.093 | 72,09 | 72,64 |
| WST-306 | 240,00 +20% | 100 | 77,77 | 3.062 | 0.093 | 73,58 | 74,17 |
| WST-312 | 240,00 +20% | 100 | 79,38 | 3.125 | 0.093 | 75,11 | 75,69 |
| WST-315 | 240,00 +20% | 100 | 80,16 | 3.156 | 0.093 | 75,84 | 76,45 |
| WST-325 | 250,00 +20% | 100 | 82,55 | 3.250 | 0.093 | 78,11 | 78,74 |
| WST-334 | 270,00 +20% | 50 | 84,94 | 3.344 | 0.093 | 80,37 | 81,03 |
| WST-343 | 280,00 +20% | 50 | 87,30 | 3.437 | 0.093 | 82,65 | 83,31 |
| WST-350 | 330,00 +20% | 50 | 88,90 | 3.500 | 0.111 | 84,20 | 84,84 |
| WST-354 | 330,00 +20% | 50 | 89,99 | 3.543 | 0.111 | 85,24 | 85,88 |
| WST-362 | 340,00 +20% | 50 | 92,08 | 3.625 | 0.111 | 87,20 | 87,83 |
| WST-368 | 440,00 +20% | 50 | 93,65 | 3.687 | 0.111 | 88,65 | 89,33 |
| WST-375 | 450,00 +20% | 50 | 95,25 | 3.750 | 0.111 | 90,17 | 90,86 |
| WST-387 | 460,00 +20% | 50 | 98,43 | 3.875 | 0.111 | 93,22 | 93,88 |
| WST-393 | 470,00 +20% | 50 | 100,03 | 3.938 | 0.111 | 94,74 | 95,40 |
| WST-400 | 520,00 +20% | 25 | 101,60 | 4.000 | 0.111 | 96,19 | 96,90 |
| WST-425 | 570,00 +20% | 25 | 107,95 | 4.250 | 0.111 | 102,41 | 103,25 |
| WST-437 | 600,00 +20% | 25 | 111,13 | 4.375 | 0.111 | 105,71 | 106,43 |
| WST-450 | 620,00 +20% | 25 | 114,30 | 4.500 | 0.111 | 108,71 | 109,47 |
| WST-475 | 660,00 +20% | 25 | 120,65 | 4.750 | 0.111 | 114,68 | 115,57 |
| WST-500 | 900,00 +20% | 25 | 127,00 | 5.000 | 0.111 | 120,78 | 121,67 |
| WST-525 | 980,00 +20% | 25 | 133,35 | 5.250 | 0.127 | 126,87 | 127,76 |
| WST-550 | 1.000,00 +20% | 25 | 139,70 | 5.500 | 0.127 | 132,82 | 133,73 |
| WST-575 | 1.100,00 +20% | 25 | 146,05 | 5.750 | 0.127 | 138,84 | 139,83 |
| WST-600 | 1.200,00 +20% | 25 | 152,40 | 6.000 | 0.127 | 144,91 | 145,92 |
| WST-625 | 1.800,00 +20% | 25 | 158,75 | 6.250 | 0.165 | 150,93 | 152,02 |
| WST-650 | 2.000,00 +20% | 25 | 165,10 | 6.500 | 0.165 | 157,02 | 158,12 |
| WST-675 | 2.300,00 +20% | 25 | 171,45 | 6.750 | 0.165 | 163,07 | 164,21 |
| WST-700 | 2.300,00 +20% | 25 | 177,80 | 7.000 | 0.165 | 169,11 | 170,31 |
| WST-725 | 2.400,00 +20% | 25 | 184,15 | 7.250 | 0.165 | 175,11 | 176,33 |
| WST-750 | 2.600,00 +20% | 25 | 190,50 | 7.500 | 0.189 | 181,10 | 182,37 |
| WST-775 | 2.700,00 +20% | 25 | 196,85 | 7.750 | 0.189 | 187,15 | 188,47 |
| WST-800 | 2.800,00 +20% | 25 | 203,20 | 8.000 | 0.189 | 193,22 | 194,56 |
| WST-825 | 3.000,00 +20% | 25 | 209,55 | 8.250 | 0.189 | 199,26 | 200,66 |
| WST-850 | 3.100,00 +20% | 25 | 215,90 | 8.500 | 0.189 | 205,31 | 206,76 |
| WST-875 | 3.200,00 +20% | 25 | 222,25 | 8.750 | 0.189 | 211,35 | 212,93 |
| WST-900 | 3.400,00 +20% | 25 | 228,60 | 9.000 | 0.189 | 217,42 | 218,95 |
| WST-925 | 4.800,00 +20% | 25 | 234,95 | 9.250 | 0.189 | 223,47 | 225,04 |
| WST-950 | 5.000,00 +20% | 25 | 241,30 | 9.500 | 0.189 | 229,51 | 231,14 |
| WST-975 | 5.300,00 +20% | 25 | 247,65 | 9.750 | 0.189 | 235,53 | 237,19 |
| WST-1000 | 5.500,00 +20% | 25 | 254,00 | 10.000 | 0.189 | 241,50 | 243,21 |
