Materiali disponibili: Acciaio Inox AISI 302 Inox AISI 316
VS per alberi
Carichi leggeri - In pollici
Carichi leggeri - In pollici
Materiale: Acciaio al Carbonio
SAE 1070-1090
TRATTAMENTO SUPERFICIALE
Oliatura
Esempio di designazione:
VS-25

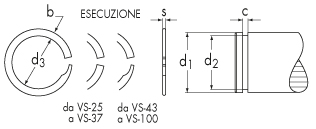

d1=diametro albero
d2=diametro gola
d3=diametro interno anello
s=spessore
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | d1 | d1 inch | s inch | d3 | d2 |
|---|---|---|---|---|---|---|---|
| VS-25 | 12,40 +20% | 1.000 | 6,35 | 0.250 | 0.012 | 5,99 | 6,05 |
| VS-31 | 12,80 +20% | 1.000 | 7,92 | 0.312 | 0.015 | 7,47 | 7,54 |
| VS-37 | 13,20 +20% | 1.000 | 9,53 | 0.375 | 0.015 | 8,84 | 8,92 |
| VS-43 | 13,60 +20% | 1.000 | 11,10 | 0.437 | 0.015 | 10,41 | 10,49 |
| VS-50 | 14,00 +20% | 1.000 | 12,70 | 0.500 | 0.018 | 11,86 | 11,99 |
| VS-56 | 14,40 +20% | 1.000 | 14,27 | 0.562 | 0.018 | 13,44 | 13,56 |
| VS-62 | 14,80 +20% | 1.000 | 15,88 | 0.625 | 0.018 | 15,01 | 15,16 |
| VS-68 | 14,80 +20% | 1.000 | 17,45 | 0.687 | 0.018 | 16,56 | 16,74 |
| VS-75 | 15,20 +20% | 1.000 | 19,05 | 0.750 | 0.018 | 18,16 | 18,34 |
| VS-81 | 16,00 +20% | 1.000 | 20,62 | 0.812 | 0.021 | 19,35 | 19,56 |
| VS-87 | 16,00 +20% | 500 | 22,23 | 0.875 | 0.021 | 20,96 | 21,16 |
| VS-93 | 16,40 +20% | 500 | 23,80 | 0.937 | 0.021 | 22,50 | 22,73 |
| VS-100 | 16,40 +20% | 500 | 25,40 | 1.000 | 0.021 | 24,10 | 24,33 |
| VS-106 | 16,80 +20% | 500 | 26,97 | 1.062 | 0.025 | 25,60 | 25,86 |
| VS-112 | 16,80 +20% | 500 | 28,58 | 1.125 | 0.025 | 27,20 | 27,46 |
| VS-118 | 17,60 +20% | 500 | 30,15 | 1.187 | 0.025 | 28,75 | 29,03 |
| VS-125 | 20,00 +20% | 500 | 31,75 | 1.250 | 0.025 | 30,33 | 30,63 |
| VS-131 | 21,00 +20% | 500 | 33,32 | 1.312 | 0.025 | 31,88 | 32,21 |
| VS-137 | 22,00 +20% | 500 | 34,93 | 1.375 | 0.025 | 33,48 | 33,81 |
| VS-143 | 22,00 +20% | 250 | 36,50 | 1.437 | 0.025 | 35,03 | 35,38 |
| VS-150 | 24,00 +20% | 250 | 38,10 | 1.500 | 0.025 | 36,63 | 36,98 |
| VS-156 | 30,00 +20% | 250 | 39,67 | 1.562 | 0.031 | 37,80 | 38,23 |
| VS-162 | 31,00 +20% | 250 | 41,28 | 1.625 | 0.031 | 39,37 | 39,83 |
| VS-168 | 31,00 +20% | 250 | 42,85 | 1.687 | 0.031 | 40,94 | 41,40 |
| VS-175 | 34,00 +20% | 250 | 44,45 | 1.750 | 0.031 | 42,52 | 43,00 |
| VS-181 | 36,00 +20% | 250 | 46,02 | 1.812 | 0.031 | 44,09 | 44,58 |
| VS-187 | 38,00 +20% | 250 | 47,63 | 1.875 | 0.031 | 45,67 | 46,18 |
| VS-193 | 39,00 +20% | 100 | 49,20 | 1.937 | 0.031 | 47,22 | 47,75 |
| VS-200 | 40,00 +20% | 100 | 50,80 | 2.000 | 0.031 | 48,82 | 49,35 |
| VS-206 | 44,00 +20% | 100 | 52,37 | 2.062 | 0.031 | 49,86 | 50,44 |
| VS-212 | 46,00 +20% | 100 | 53,98 | 2.125 | 0.031 | 51,46 | 52,04 |
| VS-218 | 46,00 +20% | 100 | 55,55 | 2.187 | 0.031 | 53,01 | 53,62 |
| VS-225 | 47,00 +20% | 100 | 57,15 | 2.250 | 0.031 | 54,58 | 55,22 |
| VS-231 | 48,00 +20% | 100 | 58,72 | 2.312 | 0.031 | 56,16 | 56,79 |
| VS-237 | 49,00 +20% | 100 | 60,33 | 2.375 | 0.031 | 57,73 | 58,39 |
| VS-243 | 50,00 +20% | 100 | 61,90 | 2.437 | 0.031 | 59,31 | 59,97 |
| VS-250 | 51,00 +20% | 100 | 63,50 | 2.500 | 0.031 | 60,88 | 61,57 |
| VS-256 | 52,00 +20% | 100 | 65,07 | 2.562 | 0.031 | 62,43 | 63,14 |
| VS-262 | 52,00 +20% | 100 | 66,68 | 2.625 | 0.031 | 64,03 | 64,74 |
| VS-268 | 53,00 +20% | 100 | 68,25 | 2.687 | 0.031 | 65,58 | 66,32 |
| VS-275 | 54,00 +20% | 100 | 69,85 | 2.750 | 0.031 | 67,16 | 67,92 |
| VS-281 | 54,00 +20% | 100 | 71,42 | 2.812 | 0.031 | 68,73 | 69,49 |
| VS-287 | 55,00 +20% | 100 | 73,03 | 2.875 | 0.031 | 70,31 | 71,09 |
| VS-293 | 55,00 +20% | 100 | 74,60 | 2.937 | 0.031 | 71,88 | 72,67 |
| VS-300 | 55,00 +20% | 100 | 76,20 | 3.000 | 0.031 | 73,46 | 74,27 |
| VS-306 | 64,00 +20% | 100 | 77,77 | 3.062 | 0.039 | 74,63 | 75,44 |
| VS-312 | 65,00 +20% | 100 | 79,38 | 3.125 | 0.039 | 76,23 | 77,04 |
| VS-318 | 66,00 +20% | 100 | 80,95 | 3.187 | 0.039 | 77,77 | 78,61 |
| VS-325 | 67,00 +20% | 100 | 82,55 | 3.250 | 0.039 | 79,38 | 80,21 |
| VS-331 | 67,00 +20% | 50 | 84,12 | 3.312 | 0.039 | 80,92 | 81,79 |
| VS-337 | 68,00 +20% | 50 | 85,73 | 3.375 | 0.039 | 82,50 | 83,39 |
| VS-343 | 68,00 +20% | 50 | 87,30 | 3.437 | 0.039 | 84,07 | 84,96 |
| VS-350 | 69,00 +20% | 50 | 88,90 | 3.500 | 0.039 | 85,65 | 86,56 |
| VS-356 | 80,00 +20% | 50 | 90,47 | 3.562 | 0.039 | 87,20 | 88,14 |
| VS-362 | 80,00 +20% | 50 | 92,08 | 3.625 | 0.039 | 88,80 | 89,74 |
| VS-368 | 81,00 +20% | 50 | 93,65 | 3.687 | 0.039 | 90,35 | 91,31 |
| VS-375 | 82,00 +20% | 50 | 95,25 | 3.750 | 0.039 | 91,95 | 92,91 |
| VS-381 | 96,00 +20% | 50 | 96,82 | 3.812 | 0.039 | 93,50 | 94,49 |
| VS-387 | 97,00 +20% | 50 | 98,43 | 3.875 | 0.039 | 95,07 | 96,09 |
| VS-393 | 97,00 +20% | 50 | 100,00 | 3.937 | 0.039 | 96,65 | 97,66 |
| VS-400 | 101,00 +20% | 25 | 101,60 | 4.000 | 0.039 | 98,22 | 99,26 |
| VS-412 | 123,00 +20% | 25 | 104,78 | 4.125 | 0.046 | 100,91 | 101,98 |
| VS-425 | 115,00 +20% | 25 | 107,95 | 4.250 | 0.046 | 104,06 | 105,16 |
| VS-437 | 125,00 +20% | 25 | 111,13 | 4.375 | 0.046 | 107,21 | 108,33 |
| VS-450 | 129,00 +20% | 25 | 114,30 | 4.500 | 0.046 | 110,36 | 111,51 |
| VS-462 | 130,00 +20% | 25 | 117,48 | 4.625 | 0.046 | 113,49 | 114,68 |
| VS-475 | 140,00 +20% | 25 | 120,65 | 4.750 | 0.046 | 116,64 | 117,86 |
| VS-487 | 150,00 +20% | 25 | 123,83 | 4.875 | 0.046 | 119,76 | 121,03 |
| VS-500 | 150,00 +20% | 25 | 127,00 | 5.000 | 0.046 | 122,91 | 124,21 |
| VS-525 | 190,00 +20% | 25 | 133,35 | 5.250 | 0.061 | 128,70 | 130,02 |
| VS-550 | 190,00 +20% | 25 | 139,70 | 5.500 | 0.061 | 134,85 | 136,22 |
| VS-575 | 200,00 +20% | 25 | 146,05 | 5.750 | 0.061 | 140,97 | 142,39 |
| VS-600 | 210,00 +20% | 25 | 152,40 | 6.000 | 0.061 | 147,12 | 148,59 |
| VS-625 | 270,00 +20% | 25 | 158,75 | 6.250 | 0.061 | 153,24 | 154,79 |
| VS-650 | 290,00 +20% | 25 | 165,10 | 6.500 | 0.061 | 159,39 | 160,99 |
| VS-675 | 300,00 +20% | 25 | 171,45 | 6.750 | 0.061 | 165,48 | 167,16 |
| VS-700 | 280,00 +20% | 25 | 177,80 | 7.000 | 0.061 | 171,63 | 173,36 |
| VS-725 | 380,00 +20% | 25 | 184,15 | 7.250 | 0.061 | 177,75 | 179,55 |
| VS-750 | 340,00 +20% | 25 | 190,50 | 7.500 | 0.061 | 183,90 | 185,75 |
| VS-775 | 440,00 +20% | 25 | 196,85 | 7.750 | 0.061 | 189,99 | 191,92 |
| VS-800 | 480,00 +20% | 25 | 203,20 | 8.000 | 0.061 | 196,14 | 198,12 |
| VS-825 | 510,00 +20% | 25 | 209,55 | 8.250 | 0.076 | 202,29 | 204,32 |
| VS-850 | 560,00 +20% | 25 | 215,90 | 8.500 | 0.076 | 208,41 | 210,52 |
| VS-875 | 590,00 +20% | 25 | 222,25 | 8.750 | 0.076 | 214,53 | 216,69 |
| VS-900 | 650,00 +20% | 25 | 228,60 | 9.000 | 0.076 | 220,65 | 222,89 |
| VS-925 | 900,00 +20% | 25 | 234,95 | 9.250 | 0.076 | 226,80 | 229,08 |
| VS-950 | 950,00 +20% | 25 | 241,30 | 9.500 | 0.076 | 232,92 | 235,28 |
| VS-975 | 990,00 +20% | 25 | 247,65 | 9.750 | 0.076 | 239,04 | 241,45 |
| VS-1000 | 1.000,00 +20% | 25 | 254,00 | 10.000 | 0.076 | 245,19 | 247,65 |
