Materiali disponibili: Acciaio Inox AISI 302
HSM per alberi
Tipo Hoopster
Tipo Hoopster
Materiale: Acciaio al Carbonio
SAE 1070-1090
TRATTAMENTO SUPERFICIALE
Oliatura
Esempio di designazione:
HSM-10

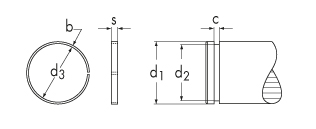

d1=diametro albero
d2=diametro gola
d3=diametro interno anello
s=spessore
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | d1 | s | d3 | d2 |
|---|---|---|---|---|---|---|
| HSM-10 | 41,00 +20% | 500 | 10,00 | 1,14 | 9,37 | 9,57 |
| HSM-11 | 42,00 +20% | 500 | 11,00 | 1,14 | 10,35 | 10,57 |
| HSM-12 | 42,00 +20% | 500 | 12,00 | 1,14 | 11,33 | 11,57 |
| HSM-13 | 43,00 +20% | 500 | 13,00 | 1,65 | 12,21 | 12,47 |
| HSM-14 | 45,00 +20% | 500 | 14,00 | 1,65 | 13,19 | 13,47 |
| HSM-15 | 45,00 +20% | 500 | 15,00 | 1,65 | 14,17 | 14,47 |
| HSM-16 | 46,00 +20% | 500 | 16,00 | 1,65 | 15,15 | 15,47 |
| HSM-17 | 47,00 +20% | 500 | 17,00 | 1,65 | 16,13 | 16,47 |
| HSM-18 | 47,00 +20% | 500 | 18,00 | 2,24 | 17,03 | 17,39 |
| HSM-19 | 47,00 +20% | 500 | 19,00 | 2,24 | 18,01 | 18,39 |
| HSM-20 | 48,00 +20% | 500 | 20,00 | 2,24 | 18,99 | 19,39 |
| HSM-21 | 50,00 +20% | 250 | 21,00 | 2,24 | 19,97 | 20,39 |
| HSM-22 | 50,00 +20% | 250 | 22,00 | 2,24 | 20,95 | 21,39 |
| HSM-23 | 51,00 +20% | 250 | 23,00 | 2,24 | 21,93 | 22,39 |
| HSM-24 | 52,00 +20% | 250 | 24,00 | 2,24 | 22,91 | 23,39 |
| HSM-25 | 53,00 +20% | 250 | 25,00 | 2,24 | 23,89 | 24,39 |
| HSM-26 | 53,00 +20% | 250 | 26,00 | 3,00 | 24,72 | 25,24 |
| HSM-27 | 56,00 +20% | 250 | 27,00 | 3,00 | 25,70 | 26,24 |
| HSM-28 | 57,00 +20% | 250 | 28,00 | 3,00 | 26,68 | 27,24 |
| HSM-29 | 58,00 +20% | 250 | 29,00 | 3,00 | 27,66 | 28,24 |
| HSM-30 | 58,00 +20% | 250 | 30,00 | 3,00 | 28,64 | 29,24 |
| HSM-31 | 59,00 +20% | 250 | 31,00 | 3,00 | 29,62 | 30,24 |
| HSM-32 | 60,00 +20% | 250 | 32,00 | 3,00 | 30,60 | 31,24 |
| HSM-33 | 66,00 +20% | 250 | 33,00 | 3,81 | 31,48 | 32,14 |
| HSM-34 | 68,00 +20% | 250 | 34,00 | 3,81 | 32,46 | 33,14 |
| HSM-35 | 69,00 +20% | 100 | 35,00 | 3,81 | 33,44 | 34,14 |
| HSM-36 | 70,00 +20% | 100 | 36,00 | 3,81 | 34,42 | 35,14 |
| HSM-37 | 75,00 +20% | 100 | 37,00 | 3,81 | 35,40 | 36,14 |
| HSM-38 | 81,00 +20% | 100 | 38,00 | 3,81 | 36,38 | 37,14 |
| HSM-40 | 130,00 +20% | 100 | 40,00 | 3,81 | 38,34 | 39,14 |
| HSM-41 | 130,00 +20% | 100 | 41,00 | 3,81 | 39,32 | 40,14 |
| HSM-42 | 130,00 +20% | 100 | 42,00 | 3,81 | 40,30 | 41,14 |
| HSM-45 | 130,00 +20% | 100 | 45,00 | 4,75 | 43,13 | 44,03 |
| HSM-47 | 130,00 +20% | 100 | 47,00 | 4,75 | 45,09 | 46,03 |
| HSM-48 | 140,00 +20% | 100 | 48,00 | 4,75 | 46,07 | 47,03 |
| HSM-50 | 140,00 +20% | 50 | 50,00 | 4,75 | 48,03 | 49,03 |
| HSM-51 | 140,00 +20% | 50 | 51,00 | 4,75 | 49,01 | 50,03 |
| HSM-52 | 210,00 +20% | 50 | 52,00 | 4,75 | 49,99 | 51,03 |
| HSM-55 | 210,00 +20% | 50 | 55,00 | 4,75 | 52,93 | 54,03 |
| HSM-56 | 220,00 +20% | 50 | 56,00 | 4,75 | 53,91 | 55,03 |
| HSM-57 | 220,00 +20% | 50 | 57,00 | 4,75 | 54,89 | 56,03 |
| HSM-58 | 220,00 +20% | 50 | 58,00 | 4,75 | 55,87 | 57,03 |
| HSM-60 | 220,00 +20% | 50 | 60,00 | 4,75 | 57,83 | 59,03 |
| HSM-62 | 230,00 +20% | 50 | 62,00 | 5,72 | 59,62 | 60,86 |
| HSM-63 | 280,00 +20% | 50 | 63,00 | 5,72 | 60,60 | 61,86 |
| HSM-64 | 340,00 +20% | 50 | 64,00 | 5,72 | 61,58 | 62,86 |
| HSM-65 | 350,00 +20% | 50 | 65,00 | 5,72 | 62,56 | 63,86 |
| HSM-67 | 350,00 +20% | 50 | 67,00 | 5,72 | 64,52 | 65,86 |
| HSM-68 | 350,00 +20% | 50 | 68,00 | 5,72 | 65,50 | 66,86 |
| HSM-70 | 400,00 +20% | 50 | 70,00 | 5,72 | 67,46 | 68,86 |
| HSM-72 | 410,00 +20% | 50 | 72,00 | 5,72 | 69,42 | 70,86 |
| HSM-75 | 420,00 +20% | 50 | 75,00 | 5,72 | 72,36 | 73,86 |
| HSM-76 | 420,00 +20% | 50 | 76,00 | 5,72 | 73,34 | 74,86 |
