Materiali disponibili: Inox AISI 420 Inox AISI 316

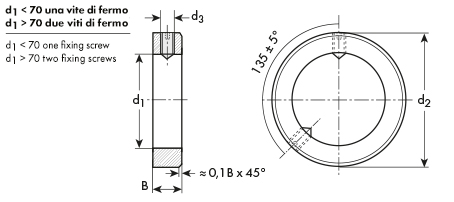

Anelli di posizionamento TIPO AP
DIN 705
DIN 705
Materiale: Inox AISI 316
Esempio di designazione:
AP 5 INOX AISI 316
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/cad |
Confezione | d1 | d2 | B | d3 |
|---|---|---|---|---|---|---|
| AP 5 INOX AISI 316 | 0,60 | 100 | 5,0 | 10 | 6,0 | M 3 |
| AP 5,5 INOX AISI 316 | 0,60 | 100 | 5,5 | 12 | 6,0 | M 4 |
| AP 6 INOX AISI 316 | 0,60 | 100 | 6,0 | 12 | 8,0 | M 4 |
| AP 7 INOX AISI 316 | 0,60 | 100 | 7,0 | 12 | 8,0 | M 4 |
| AP 8 INOX AISI 316 | 0,80 | 100 | 8,0 | 16 | 8,0 | M 4 |
| AP 9 INOX AISI 316 | 0,90 | 100 | 9,0 | 16 | 8,0 | M 5 |
| AP 10 INOX AISI 316 | 1,20 | 100 | 10,0 | 20 | 10,0 | M 5 |
| AP 11 INOX AISI 316 | 1,20 | 100 | 11,0 | 20 | 10,0 | M 5 |
| AP 12 INOX AISI 316 | 1,50 | 100 | 12,0 | 22 | 12,0 | M 6 |
| AP 13 INOX AISI 316 | 1,60 | 100 | 13,0 | 22 | 12,0 | M 6 |
| AP 14 INOX AISI 316 | 1,80 | 100 | 14,0 | 25 | 12,0 | M 6 |
| AP 15 INOX AISI 316 | 2,00 | 100 | 15,0 | 25 | 12,0 | M 6 |
| AP 16 INOX AISI 316 | 2,40 | 100 | 16,0 | 28 | 12,0 | M 6 |
| AP 18 INOX AISI 316 | 3,00 | 100 | 18,0 | 32 | 14,0 | M 6 |
| AP 20 INOX AISI 316 | 3,20 | 50 | 20,0 | 32 | 14,0 | M 6 |
| AP 22 INOX AISI 316 | 4,60 | 50 | 22,0 | 36 | 14,0 | M 6 |
| AP 24 INOX AISI 316 | 6,00 | 50 | 24,0 | 40 | 16,0 | M 8 |
| AP 25 INOX AISI 316 | 6,20 | 50 | 25,0 | 40 | 16,0 | M 8 |
| AP 26 INOX AISI 316 | 6,40 | 50 | 26,0 | 40 | 16,0 | M 8 |
| AP 28 INOX AISI 316 | 7,00 | 50 | 28,0 | 45 | 16,0 | M 8 |
| AP 30 INOX AISI 316 | 7,50 | 50 | 30,0 | 45 | 16,0 | M 8 |
| AP 32 INOX AISI 316 | 9,00 | 25 | 32,0 | 50 | 16,0 | M 8 |
| AP 34 INOX AISI 316 | 10,00 | 25 | 34,0 | 50 | 16,0 | M 8 |
| AP 35 INOX AISI 316 | 10,50 | 25 | 35,0 | 56 | 16,0 | M 8 |
| AP 36 INOX AISI 316 | 11,00 | 25 | 36,0 | 56 | 16,0 | M 8 |
| AP 38 INOX AISI 316 | 11,50 | 25 | 38,0 | 56 | 16,0 | M 8 |
| AP 40 INOX AISI 316 | 16,00 | 25 | 40,0 | 63 | 18,0 | M 10 |
| AP 45 INOX AISI 316 | 18,00 | 10 | 45,0 | 70 | 18,0 | M 10 |
| AP 50 INOX AISI 316 | 22,00 | 10 | 50,0 | 80 | 18,0 | M 10 |
| AP 55 INOX AISI 316 | 23,00 | 10 | 55,0 | 80 | 18,0 | M 10 |
| AP 56 INOX AISI 316 | 24,00 | 10 | 56,0 | 80 | 18,0 | M 10 |
| AP 60 INOX AISI 316 | 32,00 | 10 | 60,0 | 90 | 20,0 | M 10 |
| AP 63 INOX AISI 316 | 33,00 | 10 | 63,0 | 90 | 20,0 | M 10 |
| AP 65 INOX AISI 316 | 38,00 | 10 | 65,0 | 100 | 20,0 | M 10 |
| AP 70 INOX AISI 316 | 40,00 | 10 | 70,0 | 100 | 20,0 | M 10 |
| AP 75 INOX AISI 316 | 44,00 | 10 | 75,0 | 110 | 22,0 | M 12 |
| AP 80 INOX AISI 316 | 48,00 | 10 | 80,0 | 110 | 22,0 | M 12 |
| AP 85 INOX AISI 316 | 54,00 | 10 | 85,0 | 125 | 22,0 | M 12 |
| AP 90 INOX AISI 316 | 60,00 | 10 | 90,0 | 125 | 22,0 | M 12 |
| AP 100 INOX AISI 316 | 75,00 | 1 | 100,0 | 140 | 25,0 | M 12 |
| AP 110 INOX AISI 316 | 110,00 | 1 | 110,0 | 160 | 25,0 | M 12 |
| AP 120 INOX AISI 316 | 120,00 | 1 | 120,0 | 160 | 25,0 | M 12 |
| AP 125 INOX AISI 316 | 150,00 | 1 | 125,0 | 180 | 28,0 | M 16 |
| AP 140 INOX AISI 316 | 200,00 | 1 | 140,0 | 200 | 28,0 | M 16 |
| AP 150 INOX AISI 316 | 210,00 | 1 | 150,0 | 200 | 28,0 | M 16 |
| AP 160 INOX AISI 316 | 250,00 | 1 | 160,0 | 220 | 32,0 | M 20 |
| AP 180 INOX AISI 316 | 300,00 | 1 | 180,0 | 250 | 32,0 | M 20 |
| AP 200 INOX AISI 316 | 400,00 | 1 | 200,0 | 280 | 32,0 | M 20 |
