Materiali disponibili: Steel Zinc Plated Inox AISI 420 Inox AISI 316
Ghiere di bloccaggio TIPO KM
DIN 981
DIN 981
Materiale: Acciaio
TRATTAMENTO SUPERFICIALE: Zincato bianco
Tolleranza filettatura: 6H
Esempio di designazione:
KM 0 ZINCATE
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/cad |

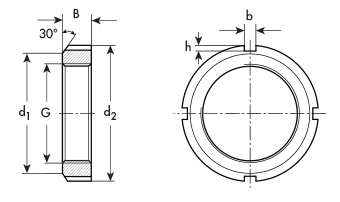

Confezione | G - Filetto | d2 | d1 | B | b | h | Rosetta di sicurezza | Chiavi HN |
|---|---|---|---|---|---|---|---|---|---|---|
| KM 0 ZINCATE | 1,20 | 100 | M 10x0,75 | 18 | 13,5 | 4,0 | 3 | 2,0 | MB 0 | HN 16 - 20 |
| KM 1 ZINCATE | 1,20 | 100 | M 12x1 | 22 | 17,0 | 4,0 | 3 | 2,0 | MB 1 | HN 25 - 28 |
| KM 2 ZINCATE | 1,20 | 100 | M 15x1 | 25 | 21,0 | 5,0 | 4 | 2,0 | MB 2 | HN 25 - 28 |
| KM 3 ZINCATE | 1,30 | 100 | M 17x1 | 28 | 24,0 | 5,0 | 4 | 2,0 | MB 3 | HN 25 - 28 |
| KM 4 ZINCATE | 1,40 | 100 | M 20x1 | 32 | 26,0 | 6,0 | 4 | 2,0 | MB 4 | HN 30 - 32 |
| KM 5 ZINCATE | 1,50 | 100 | M 25x1,5 | 38 | 32,0 | 7,0 | 5 | 2,0 | MB 5 | HN 40 - 42 |
| KM 6 ZINCATE | 1,80 | 50 | M 30x1,5 | 45 | 38,0 | 7,0 | 5 | 2,0 | MB 6 | HN 45 - 50 |
| KM 7 ZINCATE | 2,20 | 50 | M 35x1,5 | 52 | 44,0 | 8,0 | 5 | 2,0 | MB 7 | HN 52 - 55 |
| KM 8 ZINCATE | 2,40 | 50 | M 40x1,5 | 58 | 50,0 | 9,0 | 6 | 2,5 | MB 8 | HN 58 - 62 |
| KM 9 ZINCATE | 2,70 | 50 | M 45x1,5 | 65 | 56,0 | 10,0 | 6 | 2,5 | MB 9 | HN 65 - 70 |
| KM 10 ZINCATE | 3,00 | 25 | M 50x1,5 | 70 | 61,0 | 11,0 | 6 | 2,5 | MB 10 | HN 68 - 75 |
| KM 11 ZINCATE | 3,30 | 25 | M 55x2 | 75 | 67,0 | 11,0 | 7 | 3,0 | MB 11 | HN 68 - 75 |
| KM 12 ZINCATE | 3,60 | 25 | M 60x2 | 80 | 73,0 | 11,0 | 7 | 3,0 | MB 12 | HN 80 - 90 |
| KM 13 ZINCATE | 4,20 | 25 | M 65x2 | 85 | 79,0 | 12,0 | 7 | 3,0 | MB 13 | HN 85 - 92 |
| KM 14 ZINCATE | 5,80 | 10 | M 70x2 | 92 | 85,0 | 12,0 | 8 | 3,5 | MB 14 | HN 95 - 100 |
| KM 15 ZINCATE | 6,30 | 10 | M 75x2 | 98 | 90,0 | 13,0 | 8 | 3,5 | MB 15 | HN 95 - 100 |
| KM 16 ZINCATE | 8,00 | 10 | M 80x2 | 105 | 95,0 | 15,0 | 8 | 3,5 | MB 16 | HN 110 - 115 |
| KM 17 ZINCATE | 9,00 | 10 | M 85x2 | 110 | 102,0 | 16,0 | 8 | 3,5 | MB 17 | HN 110 - 115 |
| KM 18 ZINCATE | 12,00 | 10 | M 90x2 | 120 | 108,0 | 16,0 | 10 | 4,0 | MB 18 | HN 120 - 130 |
| KM 19 ZINCATE | 14,00 | 10 | M 95x2 | 125 | 113,0 | 17,0 | 10 | 4,0 | MB 19 | HN 120 - 130 |
| KM 20 ZINCATE | 17,00 | 10 | M 100x2 | 130 | 120,0 | 18,0 | 10 | 4,0 | MB 20 | HN 120 - 130 |
| KM 21 ZINCATE | 20,00 | 5 | M 105x2 | 140 | 126,0 | 18,0 | 12 | 5,0 | MB 21 | HN 135 - 145 |
| KM 22 ZINCATE | 22,00 | 5 | M 110x2 | 145 | 133,0 | 19,0 | 12 | 5,0 | MB 22 | HN 135 - 145 |
| KM 23 ZINCATE | 24,00 | 5 | M 115x2 | 150 | 137,0 | 19,0 | 12 | 5,0 | MB 23 | HN 155 - 165 |
| KM 24 ZINCATE | 25,00 | 5 | M 120x2 | 155 | 138,0 | 20,0 | 12 | 5,0 | MB 24 | HN 155 - 165 |
| KM 25 ZINCATE | 27,00 | 5 | M 125x2 | 160 | 148,0 | 21,0 | 12 | 5,0 | MB 25 | HN 155 - 165 |
| KM 26 ZINCATE | 29,00 | 5 | M 130x2 | 165 | 149,0 | 21,0 | 12 | 5,0 | MB 26 | HN 155 - 165 |
| KM 27 ZINCATE | 33,00 | 5 | M 135x2 | 175 | 160,0 | 22,0 | 14 | 6,0 | MB 27 | HN 180 - 195 |
| KM 28 ZINCATE | 36,00 | 5 | M 140x2 | 180 | 160,0 | 22,0 | 14 | 6,0 | MB 28 | HN 180 - 195 |
| KM 29 ZINCATE | 42,00 | 5 | M 145x2 | 190 | 171,0 | 24,0 | 14 | 6,0 | MB 29 | HN 180 - 195 |
| KM 30 ZINCATE | 45,00 | 1 | M 150x2 | 195 | 171,0 | 24,0 | 14 | 6,0 | MB 30 | HN 180 - 195 |
| KM 31 ZINCATE | 50,00 | 1 | M 155x3 | 200 | 182,0 | 25,0 | 16 | 7,0 | MB 31 | HN 205 - 220 |
| KM 32 ZINCATE | 55,00 | 1 | M 160x3 | 210 | 182,0 | 25,0 | 16 | 7,0 | MB 32 | HN 205 - 220 |
| KM 33 ZINCATE | 58,00 | 1 | M 165x3 | 210 | 193,0 | 26,0 | 16 | 7,0 | MB 33 | HN 205 - 220 |
| KM 34 ZINCATE | 64,00 | 1 | M 170x3 | 220 | 193,0 | 26,0 | 16 | 7,0 | MB 34 | HN 205 - 220 |
| KM 36 ZINCATE | 68,00 | 1 | M 180x3 | 230 | 203,0 | 27,0 | 18 | 8,0 | MB 36 | HN 230 - 245 |
| KM 38 ZINCATE | 72,00 | 1 | M 190x3 | 240 | 214,0 | 28,0 | 18 | 8,0 | MB 38 | HN 230 - 245 |
| KM 40 ZINCATE | 85,00 | 1 | M 200x3 | 250 | 226,0 | 29,0 | 18 | 8,0 | MB 40 | HN 260 - 270 |
| KM 42 ZINCATE | 140,00 | 1 | TR 210x4 | 270 | 238,0 | 30,0 | 20 | 10,0 | - | - |
| KM 44 ZINCATE | 150,00 | 1 | TR 220x4 | 280 | 250,0 | 32,0 | 20 | 10,0 | MB 44 | - |
| KM 46 ZINCATE | 160,00 | 1 | TR 230x4 | 290 | 260,0 | 34,0 | 20 | 10,0 | - | - |
| KM 48 ZINCATE | 180,00 | 1 | TR 240x4 | 300 | 270,0 | 34,0 | 20 | 10,0 | MB 48 | - |
| KM 50 ZINCATE | 220,00 | 1 | TR 250x4 | 320 | 290,0 | 36,0 | 20 | 10,0 | - | - |
| KM 52 ZINCATE | 240,00 | 1 | TR 260x4 | 330 | 300,0 | 36,0 | 24 | 12,0 | MB 52 | - |
| KM 54 ZINCATE | 260,00 | 1 | TR 270x4 | 340 | 310,0 | 38,0 | 24 | 12,0 | - | - |
| KM 56 ZINCATE | 280,00 | 1 | TR 280x4 | 350 | 320,0 | 38,0 | 24 | 12,0 | MB 56 | - |
