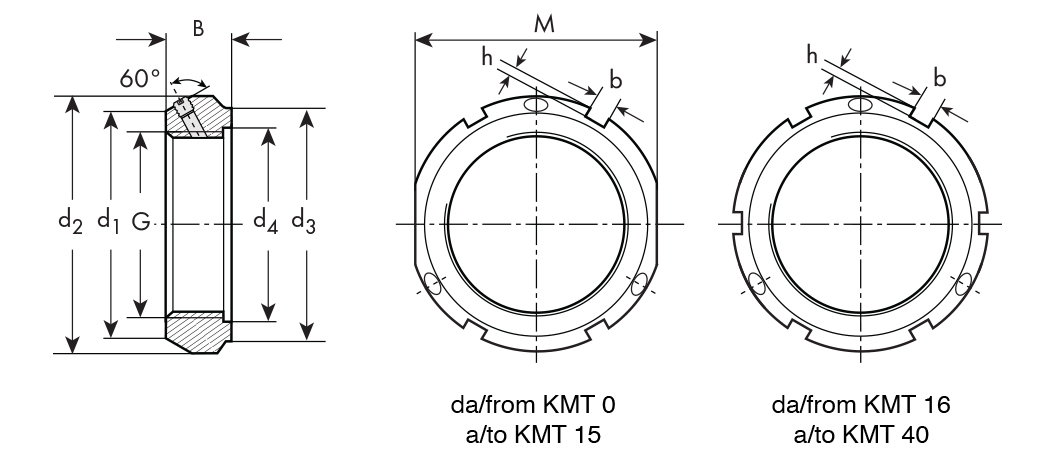

Ghiere di precisione TIPO KMT
Con grani di fermo
Con grani di fermo
Materiale: Acciaio
Tolleranza filettatura: 5H
Esempio di designazione:
KMT 0
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/cad |
Confezione | G - Filetto | d2 | d1 | d3 | d4 | B | b | h | M | Chiavi HN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KMT 0 | 12,00 | 10 | M 10x0,75 | 28 | 21,0 | 23 | 11 | 14,0 | 4 | 2,0 | 24,0 | HN 25 - 28 |
| KMT 1 | 12,00 | 10 | M 12x1 | 30 | 23,0 | 25 | 13 | 14,0 | 4 | 2,0 | 27,0 | HN 30 - 32 |
| KMT 2 | 12,00 | 10 | M 15x1 | 33 | 26,0 | 28 | 16 | 16,0 | 4 | 2,0 | 30,0 | HN 30 - 32 |
| KMT 3 | 12,50 | 10 | M 17x1 | 37 | 29,0 | 33 | 18 | 18,0 | 5 | 2,0 | 34,0 | HN 34 - 36 |
| KMT 4 | 13,00 | 10 | M 20x1 | 40 | 32,0 | 35 | 21 | 18,0 | 5 | 2,0 | 36,0 | HN 40 - 42 |
| KMT 5 | 14,00 | 10 | M 25x1,5 | 44 | 36,0 | 39 | 26 | 20,0 | 5 | 2,0 | 41,0 | HN 45 - 50 |
| KMT 6 | 15,00 | 10 | M 30x1,5 | 49 | 41,0 | 44 | 32 | 20,0 | 5 | 2,0 | 46,0 | HN 45 - 50 |
| KMT 7 | 16,00 | 10 | M 35x1,5 | 54 | 46,0 | 49 | 38 | 22,0 | 5 | 2,0 | 50,0 | HN 52 - 55 |
| KMT 8 | 18,00 | 10 | M 40x1,5 | 65 | 54,0 | 59 | 42 | 22,0 | 6 | 2,5 | 60,0 | HN 65 - 70 |
| KMT 9 | 20,00 | 10 | M 45x1,5 | 70 | 60,0 | 64 | 48 | 22,0 | 6 | 2,5 | 65,0 | HN 68 - 75 |
| KMT 10 | 24,00 | 10 | M 50x1,5 | 75 | 64,0 | 68 | 52 | 25,0 | 7 | 3,0 | 70,0 | HN 68 - 75 |
| KMT 11 | 28,00 | 5 | M 55x2 | 85 | 74,0 | 78 | 58 | 25,0 | 7 | 3,0 | 80,0 | HN 80 - 90 |
| KMT 12 | 32,00 | 5 | M 60x2 | 90 | 78,0 | 82 | 62 | 26,0 | 8 | 3,5 | 85,0 | HN 85 - 92 |
| KMT 13 | 36,00 | 5 | M 65x2 | 95 | 83,0 | 87 | 68 | 28,0 | 8 | 3,5 | 90,0 | HN 95 - 100 |
| KMT 14 | 40,00 | 5 | M 70x2 | 100 | 88,0 | 92 | 72 | 28,0 | 8 | 3,5 | 95,0 | HN 95 - 100 |
| KMT 15 | 45,00 | 5 | M 75x2 | 105 | 93,0 | 97 | 77 | 28,0 | 8 | 3,5 | 100,0 | HN 110 - 115 |
| KMT 16 | 55,00 | 5 | M 80x2 | 110 | 98,0 | 100 | 83 | 32,0 | 8 | 3,5 | - | HN 110 - 115 |
| KMT 17 | 65,00 | 5 | M 85x2 | 120 | 107,0 | 110 | 88 | 32,0 | 10 | 4,0 | - | HN 120 - 130 |
| KMT 18 | 75,00 | 1 | M 90x2 | 125 | 112,0 | 115 | 93 | 32,0 | 10 | 4,0 | - | HN 120 - 130 |
| KMT 19 | 90,00 | 1 | M 95x2 | 130 | 117,0 | 120 | 98 | 32,0 | 10 | 4,0 | - | HN 120 - 130 |
| KMT 20 | 105,00 | 1 | M 100x2 | 135 | 122,0 | 125 | 103 | 32,0 | 10 | 4,0 | - | HN 135 - 145 |
| KMT 22 | 120,00 | 1 | M 110x2 | 145 | 132,0 | 134 | 112 | 32,0 | 10 | 4,0 | - | HN 135 - 145 |
| KMT 24 | 140,00 | 1 | M 120x2 | 155 | 142,0 | 144 | 122 | 32,0 | 10 | 4,0 | - | HN 155 - 165 |
| KMT 26 | 160,00 | 1 | M 130x2 | 165 | 152,0 | 154 | 132 | 32,0 | 12 | 5,0 | - | HN 155 - 165 |
| KMT 28 | 180,00 | 1 | M 140x2 | 175 | 162,0 | 164 | 142 | 32,0 | 14 | 6,0 | - | HN 180 - 195 |
| KMT 30 | 200,00 | 1 | M 150x2 | 185 | 172,0 | 174 | 152 | 32,0 | 14 | 6,0 | - | HN 180 - 195 |
| KMT 32 | 220,00 | 1 | M 160x3 | 195 | 182,0 | 184 | 162 | 32,0 | 14 | 6,0 | - | HN 180 - 195 |
| KMT 34 | 240,00 | 1 | M 170x3 | 205 | 192,0 | 192 | 172 | 32,0 | 14 | 6,0 | - | HN 205 - 220 |
| KMT 36 | 260,00 | 1 | M 180x3 | 215 | 202,0 | 204 | 182 | 32,0 | 16 | 7,0 | - | HN 205 - 220 |
| KMT 38 | 280,00 | 1 | M 190x3 | 225 | 212,0 | 214 | 192 | 32,0 | 16 | 7,0 | - | HN 230 - 245 |
| KMT 40 | 300,00 | 1 | M 200x3 | 235 | 222,0 | 224 | 202 | 32,0 | 18 | 8,0 | - | HN 230 - 245 |
