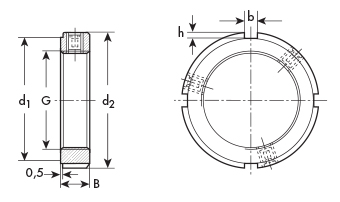

Ghiere di precisione TIPO KMZ
Con grani di fermo
Con grani di fermo
Materiale: Acciaio
Tolleranza filettatura: 5H
Esempio di designazione:
KMZ 1
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/cad |
Confezione | G - Filetto | d2 | d1 | B | b | h | Grani |
|---|---|---|---|---|---|---|---|---|---|
| KMZ 1 | 13,50 | 10 | M 12x1 | 20 | 16,0 | 8,0 | 3 | 2,0 | 2 - M4 |
| KMZ 2 | 14,00 | 10 | M 15x1 | 25 | 21,0 | 8,0 | 3 | 2,0 | 2 - M4 |
| KMZ 3 | 14,50 | 10 | M 17x1 | 28 | 23,0 | 8,0 | 4 | 2,0 | 2 - M5 |
| KMZ 4 | 15,00 | 10 | M 20x1 | 32 | 27,0 | 10,0 | 4 | 2,0 | 3 - M5 |
| KMZ 5 | 16,00 | 10 | M 25x1,5 | 38 | 33,0 | 12,0 | 5 | 2,0 | 3 - M6 |
| KMZ 6 | 17,00 | 10 | M 30x1,5 | 45 | 40,0 | 12,0 | 5 | 2,0 | 3 - M6 |
| KMZ 7 | 18,00 | 10 | M 35x1,5 | 52 | 47,0 | 12,0 | 5 | 2,0 | 3 - M6 |
| KMZ 8 | 20,00 | 10 | M 40x1,5 | 58 | 52,0 | 14,0 | 6 | 2,5 | 3 - M6 |
| KMZ 9 | 22,00 | 10 | M 45x1,5 | 65 | 59,0 | 14,0 | 6 | 2,5 | 3 - M6 |
| KMZ 10 | 24,00 | 10 | M 50x1,5 | 70 | 64,0 | 14,0 | 6 | 2,5 | 3 - M6 |
| KMZ 11 | 26,00 | 10 | M 55x2 | 75 | 68,0 | 16,0 | 7 | 3,0 | 3 - M8 |
| KMZ 12 | 28,00 | 10 | M 60x2 | 80 | 73,0 | 16,0 | 7 | 3,0 | 3 - M8 |
| KMZ 13 | 30,00 | 10 | M 65x2 | 85 | 78,0 | 16,0 | 7 | 3,0 | 3 - M8 |
| KMZ 14 | 35,00 | 10 | M 70x2 | 92 | 84,0 | 18,0 | 8 | 3,5 | 3 - M8 |
| KMZ 15 | 40,00 | 10 | M 75x2 | 98 | 90,0 | 18,0 | 8 | 3,5 | 3 - M8 |
| KMZ 16 | 45,00 | 5 | M 80x2 | 105 | 96,0 | 18,0 | 8 | 3,5 | 3 - M8 |
| KMZ 17 | 50,00 | 5 | M 85x2 | 110 | 102,0 | 18,0 | 8 | 3,5 | 3 - M8 |
| KMZ 18 | 55,00 | 5 | M 90x2 | 120 | 108,0 | 20,0 | 10 | 4,0 | 3 - M8 |
| KMZ 20 | 60,00 | 5 | M 100x2 | 130 | 118,0 | 20,0 | 10 | 4,0 | 3 - M8 |
| KMZ 21 | 70,00 | 1 | M 105x2 | 140 | 125,0 | 22,0 | 12 | 5,0 | 3 - M8 |
| KMZ 22 | 80,00 | 1 | M 110x2 | 145 | 132,0 | 22,0 | 12 | 5,0 | 3 - M8 |
| KMZ 24 | 90,00 | 1 | M 120x2 | 155 | 142,0 | 24,0 | 12 | 5,0 | 3 - M8 |
| KMZ 26 | 100,00 | 1 | M 130x2 | 165 | 152,0 | 24,0 | 12 | 5,0 | 3 - M8 |
| KMZ 28 | 120,00 | 1 | M 140x2 | 180 | 165,0 | 26,0 | 14 | 6,0 | 3 - M10 |
| KMZ 30 | 140,00 | 1 | M 150x2 | 195 | 180,0 | 26,0 | 14 | 6,0 | 3 - M10 |
| KMZ 32 | 160,00 | 1 | M 160x3 | 210 | 190,0 | 28,0 | 16 | 7,0 | 3 - M10 |
| KMZ 34 | 180,00 | 1 | M 170x3 | 220 | 200,0 | 28,0 | 16 | 7,0 | 3 - M10 |
| KMZ 36 | 200,00 | 1 | M 180x3 | 230 | 205,0 | 30,0 | 18 | 8,0 | 3 - M12 |
| KMZ 38 | 220,00 | 1 | M 190x3 | 240 | 215,0 | 30,0 | 18 | 8,0 | 3 - M12 |
| KMZ 40 | 240,00 | 1 | M 200x3 | 250 | 225,0 | 32,0 | 18 | 8,0 | 3 - M12 |
