Home > Linguette e barre > Linguette a disco > LINGUETTE A DISCO DIN 6888 ex ISO 3912 ex UNI 6606

Materiali disponibili: Acciaio Inox

LINGUETTE A DISCO
DIN 6888
ex ISO 3912
ex UNI 6606

Materiale: Acciaio al carbonio
con R>588 N/mm2
1.0503 (C45K)

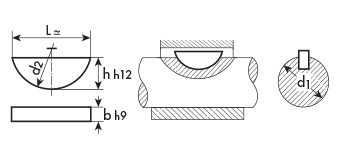

L= Lunghezza in mm
b= larghezza in mm
h= altezza in mm
d1= diametro dell'albero (mm)
d2= raggio (mm)

= Ad esaurimento

Descrizione Prezzo IVA escl
euro/100		 Confezione b h L d1 da d1 a d2
1,5 X 2,6 14,00 100 1,5 2,6 6,76 4 6 7
1,5 X 3,7 14,00 100 1,5 3,7 9,66 4 6 10
2 X 2,6 14,00 100 2,0 2,6 6,76 6 8 7
2 X 3,7 14,00 100 2,0 3,7 9,66 6 8 10
2 X 5 14,00 100 2,0 5,0 12,65 6 8 13
2,5 X 3,7 14,00 100 2,5 3,7 9,66 8 10 10
2,5 X 5 14,00 100 2,5 5,0 12,65 8 10 10
3 X 3,7 15,00 100 3,0 3,7 9,66 8 10 10
3 X 5 15,00 100 3,0 5,0 12,65 8 10 13
3 X 6,5 15,00 100 3,0 6,5 15,72 8 10 16
3 X 7,5 15,00 100 3,0 7,5 18,57 8 10 0
4 X 5 15,00 100 4,0 5,0 12,65 10 12 13
4 X 6,5 18,00 100 4,0 6,5 15,72 10 12 16
4 X 7,5 18,00 100 4,0 7,5 18,57 10 12 19
4 X 9 40,00 100 4,0 9,0 21,63 10 12 0
5 X 6,5 20,00 100 5,0 6,5 15,72 12 17 16
5 X 7,5 25,00 100 5,0 7,5 18,57 12 17 19
5 X 9 30,00 100 5,0 9,0 21,63 12 17 22
5 X 10 50,00 100 5,0 10,0 24,49 12 17 25
6 X 7,5 28,00 100 6,0 7,5 18,57 17 22 19
6 X 9 36,00 100 6,0 9,0 21,63 17 22 22
6 X 10 40,00 100 6,0 10,0 24,49 17 22 25
6 X 11 50,00 100 6,0 11,0 27,35 17 22 28
7 X 10 60,00 100 7,0 10,0 24,49 0 0 25
7 X 11 65,00 100 7,0 11,0 27,35 0 0 0
7 X 13 70,00 100 7,0 13,0 24,49 0 0 0
7 X 16 150,00 100 7,0 16,0 27,35 0 0 0
8 X 9 50,00 100 8,0 9,0 21,63 22 30 22
8 X 10 60,00 100 8,0 10,0 24,49 22 30 25
8 X 11 70,00 100 8,0 11,0 27,35 22 30 28
8 X 13 90,00 100 8,0 13,0 31,43 22 30 32
8 X 16 200,00 100 8,0 16,0 43,08 22 30 45
10 X 11 90,00 100 10,0 11,0 27,35 30 38 28
10 X 13 100,00 100 10,0 13,0 31,43 30 38 32
10 X 16 200,00 100 10,0 16,0 43,08 30 38 45
