LINGUETTE
DIN 6885 AB
ex ISO 773 C
ex UNI 6604 AB
DIN 6885 AB
ex ISO 773 C
ex UNI 6604 AB
Materiale: Acciaio al carbonio
con R>588 N/mm2
1.0503 (C45K)

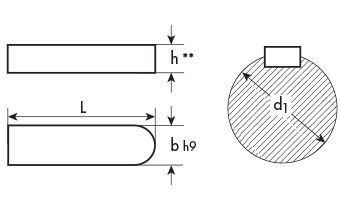

** tolleranza: h9 per sez. quadrata, h11 per sez. rettangolare
L= lunghezza in mm
b= larghezza in mm
h= altezza in mm
d1=diametro dell'albero (mm)
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | b | h | L | Toll. | d1 da | d1 a | Peso kg/1000 |
|---|---|---|---|---|---|---|---|---|---|
| 3 X 3 X 6 FORMA AB | 10,00 | 100 | 3,0 | 3,0 | 6,00 | -0,2 | 8 | 10 | 0,423 |
| 4 X 4 X 10 FORMA AB | 14,00 | 100 | 4,0 | 4,0 | 10,00 | -0,2 | 10 | 12 | 1,260 |
| 4 X 4 X 12 FORMA AB | 15,00 | 100 | 4,0 | 4,0 | 12,00 | -0,2 | 10 | 12 | 1,510 |
| 5 X 5 X 8 FORMA AB | 12,00 | 100 | 5,0 | 5,0 | 8,00 | -0,2 | 12 | 17 | 1,570 |
| 5 X 5 X 10 FORMA AB | 13,00 | 100 | 5,0 | 5,0 | 10,00 | -0,2 | 12 | 17 | 1,950 |
| 5 X 5 X 12 FORMA AB | 14,00 | 100 | 5,0 | 5,0 | 12,00 | -0,2 | 12 | 17 | 2,350 |
| 5 X 5 X 14 FORMA AB | 15,00 | 100 | 5,0 | 5,0 | 14,00 | -0,2 | 12 | 17 | 2,747 |
| 5 X 5 X 16 FORMA AB | 16,00 | 100 | 5,0 | 5,0 | 16,00 | -0,2 | 12 | 17 | 3,140 |
| 5 X 5 X 20 FORMA AB | 18,00 | 100 | 5,0 | 5,0 | 20,00 | -0,2 | 12 | 17 | 3,920 |
| 5 X 5 X 30 FORMA AB | 20,00 | 100 | 5,0 | 5,0 | 30,00 | -0,3 | 12 | 17 | 5,887 |
| 6 X 6 X 10 FORMA AB | 16,00 | 100 | 6,0 | 6,0 | 10,00 | -0,2 | 17 | 22 | 2,826 |
| 6 X 6 X 12 FORMA AB | 18,00 | 100 | 6,0 | 6,0 | 12,00 | -0,2 | 17 | 22 | 3,391 |
| 6 X 6 X 14 FORMA AB | 19,00 | 100 | 6,0 | 6,0 | 14,00 | -0,2 | 17 | 22 | 3,956 |
| 6 X 6 X 16 FORMA AB | 20,00 | 100 | 6,0 | 6,0 | 16,00 | -0,2 | 17 | 22 | 4,520 |
| 6 X 6 X 18 FORMA AB | 21,00 | 100 | 6,0 | 6,0 | 18,00 | -0,2 | 17 | 22 | 5,086 |
| 6 X 6 X 20 FORMA AB | 22,00 | 100 | 6,0 | 6,0 | 20,00 | -0,2 | 17 | 22 | 5,650 |
| 6 X 6 X 25 FORMA AB | 23,00 | 100 | 6,0 | 6,0 | 25,00 | -0,2 | 17 | 22 | 7,065 |
| 6 X 6 X 30 FORMA AB | 24,00 | 100 | 6,0 | 6,0 | 30,00 | -0,3 | 17 | 22 | 8,478 |
| 6 X 6 X 32 FORMA AB | 26,00 | 100 | 6,0 | 6,0 | 32,00 | -0,3 | 17 | 22 | 9,040 |
| 6 X 6 X 35 FORMA AB | 28,00 | 100 | 6,0 | 6,0 | 35,00 | -0,3 | 17 | 22 | 9,891 |
| 6 X 6 X 40 FORMA AB | 30,00 | 100 | 6,0 | 6,0 | 40,00 | -0,3 | 17 | 22 | 11,300 |
| 8 X 7 X 12 FORMA AB | 22,00 | 100 | 8,0 | 7,0 | 12,00 | -0,2 | 22 | 30 | 5,275 |
| 8 X 7 X 16 FORMA AB | 24,00 | 100 | 8,0 | 7,0 | 16,00 | -0,2 | 22 | 30 | 7,033 |
| 8 X 7 X 18 FORMA AB | 26,00 | 100 | 8,0 | 7,0 | 18,00 | -0,2 | 22 | 30 | 7,912 |
| 8 X 7 X 20 FORMA AB | 28,00 | 100 | 8,0 | 7,0 | 20,00 | -0,2 | 22 | 30 | 8,792 |
| 8 X 7 X 22 FORMA AB | 30,00 | 100 | 8,0 | 7,0 | 22,00 | -0,2 | 22 | 30 | 9,670 |
| 8 X 7 X 25 FORMA AB | 32,00 | 100 | 8,0 | 7,0 | 25,00 | -0,2 | 22 | 30 | 10,990 |
| 8 X 7 X 28 FORMA AB | 34,00 | 100 | 8,0 | 7,0 | 28,00 | -0,2 | 22 | 30 | 12,300 |
| 8 X 7 X 30 FORMA AB | 36,00 | 100 | 8,0 | 7,0 | 30,00 | -0,3 | 22 | 30 | 13,188 |
| 8 X 7 X 32 FORMA AB | 38,00 | 100 | 8,0 | 7,0 | 32,00 | -0,3 | 22 | 30 | 14,067 |
| 8 X 7 X 40 FORMA AB | 40,00 | 100 | 8,0 | 7,0 | 40,00 | -0,3 | 22 | 30 | 17,584 |
| 8 X 7 X 45 FORMA AB | 45,00 | 100 | 8,0 | 7,0 | 45,00 | -0,3 | 22 | 30 | 19,782 |
| 8 X 7 X 50 FORMA AB | 50,00 | 100 | 8,0 | 7,0 | 50,00 | -0,3 | 22 | 30 | 21,980 |
| 10 X 8 X 25 FORMA AB | 40,00 | 100 | 10,0 | 8,0 | 25,00 | -0,2 | 30 | 38 | 15,700 |
| 10 X 8 X 28 FORMA AB | 45,00 | 100 | 10,0 | 8,0 | 28,00 | -0,3 | 30 | 38 | 17,584 |
| 10 X 8 X 30 FORMA AB | 50,00 | 100 | 10,0 | 8,0 | 30,00 | -0,3 | 30 | 38 | 18,800 |
| 10 X 8 X 32 FORMA AB | 55,00 | 100 | 10,0 | 8,0 | 32,00 | -0,3 | 30 | 38 | 20,096 |
| 10 X 8 X 35 FORMA AB | 60,00 | 100 | 10,0 | 8,0 | 35,00 | -0,3 | 30 | 38 | 21,980 |
| 10 X 8 X 40 FORMA AB | 65,00 | 100 | 10,0 | 8,0 | 40,00 | -0,3 | 30 | 38 | 25,100 |
| 10 X 8 X 45 FORMA AB | 70,00 | 100 | 10,0 | 8,0 | 45,00 | -0,3 | 30 | 38 | 28,260 |
| 10 X 8 X 50 FORMA AB | 75,00 | 100 | 10,0 | 8,0 | 50,00 | -0,3 | 30 | 38 | 31,400 |
| 10 X 8 X 55 FORMA AB | 80,00 | 100 | 10,0 | 8,0 | 55,00 | -0,3 | 30 | 38 | 34,500 |
| 10 X 8 X 56 FORMA AB | 85,00 | 100 | 10,0 | 8,0 | 56,00 | -0,3 | 30 | 38 | 35,168 |
| 10 X 8 X 70 FORMA AB | 90,00 | 50 | 10,0 | 8,0 | 70,00 | -0,3 | 30 | 38 | 43,960 |
| 10 X 8 X 100 FORMA AB | 100,00 | 50 | 10,0 | 8,0 | 100,00 | -0,5 | 30 | 38 | 62,800 |
| 12 X 8 X 25 FORMA AB | 50,00 | 100 | 12,0 | 8,0 | 25,00 | -0,2 | 38 | 44 | 18,840 |
| 12 X 8 X 28 FORMA AB | 55,00 | 100 | 12,0 | 8,0 | 28,00 | -0,2 | 38 | 44 | 21,100 |
| 12 X 8 X 30 FORMA AB | 60,00 | 100 | 12,0 | 8,0 | 30,00 | -0,3 | 38 | 44 | 22,620 |
| 12 X 8 X 32 FORMA AB | 65,00 | 100 | 12,0 | 8,0 | 32,00 | -0,3 | 38 | 44 | 24,100 |
| 12 X 8 X 40 FORMA AB | 70,00 | 100 | 12,0 | 8,0 | 40,00 | -0,3 | 38 | 44 | 30,100 |
| 12 X 8 X 45 FORMA AB | 75,00 | 100 | 12,0 | 8,0 | 45,00 | -0,3 | 38 | 44 | 33,900 |
| 12 X 8 X 50 FORMA AB | 80,00 | 100 | 12,0 | 8,0 | 50,00 | -0,3 | 38 | 44 | 37,680 |
| 12 X 8 X 56 FORMA AB | 85,00 | 100 | 12,0 | 8,0 | 56,00 | -0,3 | 38 | 44 | 42,200 |
| 12 X 8 X 70 FORMA AB | 90,00 | 50 | 12,0 | 8,0 | 70,00 | -0,3 | 38 | 44 | 52,752 |
| 12 X 8 X 100 FORMA AB | 120,00 | 50 | 12,0 | 8,0 | 100,00 | -0,5 | 38 | 44 | 75,360 |
| 14 X 9 X 25 FORMA AB | 60,00 | 100 | 14,0 | 9,0 | 25,00 | -0,2 | 44 | 50 | 24,727 |
| 14 X 9 X 30 FORMA AB | 65,00 | 100 | 14,0 | 9,0 | 30,00 | 0,0 | 44 | 50 | 0,000 |
| 14 X 9 X 32 FORMA AB | 70,00 | 100 | 14,0 | 9,0 | 32,00 | -0,3 | 44 | 50 | 31,651 |
| 14 X 9 X 36 FORMA AB | 75,00 | 100 | 14,0 | 9,0 | 36,00 | -0,3 | 44 | 50 | 35,600 |
| 14 X 9 X 40 FORMA AB | 80,00 | 100 | 14,0 | 9,0 | 40,00 | -0,3 | 44 | 50 | 39,564 |
| 14 X 9 X 45 FORMA AB | 85,00 | 100 | 14,0 | 9,0 | 45,00 | -0,3 | 44 | 50 | 44,500 |
| 14 X 9 X 50 FORMA AB | 90,00 | 100 | 14,0 | 9,0 | 50,00 | -0,3 | 44 | 50 | 46,940 |
| 14 X 9 X 56 FORMA AB | 95,00 | 100 | 14,0 | 9,0 | 56,00 | -0,3 | 44 | 50 | 55,300 |
| 14 X 9 X 60 FORMA AB | 100,00 | 100 | 14,0 | 9,0 | 60,00 | -0,3 | 44 | 50 | 59,300 |
| 14 X 9 X 63 FORMA AB | 110,00 | 50 | 14,0 | 9,0 | 63,00 | 0,0 | 44 | 50 | 0,000 |
| 14 X 9 X 70 FORMA AB | 120,00 | 50 | 14,0 | 9,0 | 70,00 | -0,5 | 44 | 50 | 69,200 |
| 14 X 9 X 80 FORMA AB | 130,00 | 50 | 14,0 | 9,0 | 80,00 | -0,5 | 44 | 50 | 79,100 |
| 14 X 9 X 90 FORMA AB | 150,00 | 50 | 14,0 | 9,0 | 90,00 | -0,5 | 44 | 50 | 89,000 |
| 14 X 9 X 100 FORMA AB | 170,00 | 50 | 14,0 | 9,0 | 100,00 | -0,5 | 44 | 50 | 98,900 |
| 16 X 10 X 55 FORMA AB | 180,00 | 100 | 16,0 | 10,0 | 55,00 | -0,3 | 50 | 58 | 69,080 |
| 16 X 10 X 80 FORMA AB | 220,00 | 25 | 16,0 | 10,0 | 80,00 | -0,3 | 50 | 58 | 100,480 |
| 18 X 11 X 40 FORMA AB | 160,00 | 50 | 18,0 | 11,0 | 40,00 | -0,3 | 58 | 65 | 62,000 |
| 18 X 11 X 50 FORMA AB | 180,00 | 50 | 18,0 | 11,0 | 50,00 | -0,3 | 58 | 65 | 77,700 |
| 18 X 11 X 60 FORMA AB | 200,00 | 25 | 18,0 | 11,0 | 60,00 | -0,3 | 58 | 65 | 93,200 |
| 18 X 11 X 70 FORMA AB | 220,00 | 25 | 18,0 | 11,0 | 70,00 | -0,3 | 58 | 65 | 108,801 |
| 18 X 11 X 90 FORMA AB | 260,00 | 25 | 18,0 | 11,0 | 90,00 | -0,5 | 58 | 65 | 139,887 |
| 18 X 11 X 100 FORMA AB | 300,00 | 10 | 18,0 | 11,0 | 100,00 | -0,5 | 58 | 65 | 155,000 |
| 20 X 12 X 70 FORMA AB | 300,00 | 25 | 20,0 | 12,0 | 70,00 | -0,3 | 65 | 75 | 131,880 |
| 20 X 12 X 100 FORMA AB | 340,00 | 10 | 20,0 | 12,0 | 100,00 | -0,5 | 65 | 75 | 188,000 |
| 22 X 14 X 70 FORMA AB | 400,00 | 10 | 22,0 | 14,0 | 70,00 | -0,3 | 75 | 85 | 169,000 |
| 22 X 14 X 100 FORMA AB | 450,00 | 10 | 22,0 | 14,0 | 100,00 | -0,5 | 75 | 85 | 241,780 |
| 22 X 14 X 110 FORMA AB | 500,00 | 10 | 22,0 | 14,0 | 110,00 | -0,5 | 75 | 85 | 265,958 |
