Materiali disponibili: Steel Stainless steel
LS molle lineari
Materiale: Acciaio al Carbonio
SAE 1070-1090
TRATTAMENTO SUPERFICIALE
Oliatura
Esempio di designazione:
LS12188-1

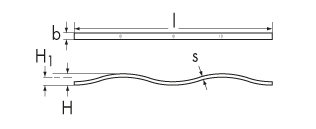

b=larghezza
l=lunghezza
S=spessore
H=altezza libera
H1=altezza lavoro
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | l mm | H1 altezza di lavoro mm | H altezza libera mm |
|---|---|---|---|---|---|
| LS12188-1 | 135,00 +20% | 100 | 38,10 | 5,72 | 3,18 |
| LS12188-2 | 135,00 +20% | 100 | 76,20 | 5,72 | 3,18 |
| LS12188-3 | 150,00 +20% | 100 | 114,30 | 5,72 | 3,18 |
| LS12188-4 | 150,00 +20% | 100 | 152,40 | 5,72 | 3,18 |
| LS12250-1 | 135,00 +20% | 100 | 38,10 | 5,72 | 3,18 |
| LS12250-2 | 135,00 +20% | 100 | 76,20 | 5,72 | 3,18 |
| LS12250-3 | 150,00 +20% | 100 | 114,30 | 5,72 | 3,18 |
| LS12250-4 | 155,00 +20% | 100 | 152,40 | 5,72 | 3,18 |
| LS12312-1 | 135,00 +20% | 100 | 38,10 | 5,72 | 3,18 |
| LS12312-2 | 150,00 +20% | 100 | 76,20 | 5,72 | 3,18 |
| LS12312-3 | 155,00 +20% | 100 | 114,30 | 5,72 | 3,18 |
| LS12312-4 | 170,00 +20% | 100 | 152,40 | 5,72 | 3,18 |
| LS12375-1 | 135,00 +20% | 100 | 38,10 | 5,72 | 3,18 |
| LS12375-2 | 150,00 +20% | 100 | 76,20 | 5,72 | 3,18 |
| LS12375-3 | 155,00 +20% | 100 | 114,30 | 5,72 | 3,18 |
| LS12375-4 | 175,00 +20% | 100 | 152,40 | 5,72 | 3,18 |
| LS20188-1 | 135,00 +20% | 100 | 47,63 | 6,35 | 3,81 |
| LS20188-2 | 150,00 +20% | 100 | 95,25 | 6,35 | 3,81 |
| LS20188-3 | 155,00 +20% | 100 | 142,88 | 6,35 | 3,81 |
| LS20188-4 | 175,00 +20% | 100 | 190,50 | 6,35 | 3,81 |
| LS20250-1 | 135,00 +20% | 100 | 47,63 | 6,35 | 3,81 |
| LS20250-2 | 155,00 +20% | 100 | 95,25 | 6,35 | 3,81 |
| LS20250-3 | 175,00 +20% | 100 | 142,88 | 6,35 | 3,81 |
| LS20250-4 | 200,00 +20% | 100 | 190,50 | 6,35 | 3,81 |
| LS20312-1 | 150,00 +20% | 100 | 47,63 | 6,35 | 3,81 |
| LS20312-2 | 170,00 +20% | 100 | 95,25 | 6,35 | 3,81 |
| LS20312-3 | 185,00 +20% | 100 | 142,88 | 6,35 | 3,81 |
| LS20312-4 | 200,00 +20% | 100 | 190,50 | 6,35 | 3,81 |
| LS20375-1 | 150,00 +20% | 100 | 47,63 | 6,35 | 3,81 |
| LS20375-2 | 175,00 +20% | 100 | 95,25 | 6,35 | 3,81 |
| LS20375-3 | 200,00 +20% | 100 | 142,88 | 6,35 | 3,81 |
| LS20375-4 | 230,00 +20% | 100 | 190,50 | 6,35 | 3,81 |
| LS25188-1 | 150,00 +20% | 100 | 57,15 | 6,99 | 4,45 |
| LS25188-2 | 155,00 +20% | 100 | 114,30 | 6,99 | 4,45 |
| LS25188-3 | 185,00 +20% | 100 | 171,45 | 6,99 | 4,45 |
| LS25188-4 | 200,00 +20% | 100 | 228,60 | 6,99 | 4,45 |
| LS25250-1 | 150,00 +20% | 100 | 57,15 | 6,99 | 4,45 |
| LS25250-2 | 175,00 +20% | 100 | 114,30 | 6,99 | 4,45 |
| LS25250-3 | 200,00 +20% | 100 | 171,45 | 6,99 | 4,45 |
| LS25250-4 | 235,00 +20% | 100 | 228,60 | 6,99 | 4,45 |
| LS25312-1 | 155,00 +20% | 100 | 57,15 | 6,99 | 4,45 |
| LS25312-2 | 185,00 +20% | 100 | 114,30 | 6,99 | 4,45 |
| LS25312-3 | 230,00 +20% | 100 | 171,45 | 6,99 | 4,45 |
| LS25312-4 | 250,00 +20% | 100 | 228,60 | 6,99 | 4,45 |
| LS25375-1 | 155,00 +20% | 100 | 57,15 | 6,99 | 4,45 |
| LS25375-2 | 200,00 +20% | 100 | 114,30 | 6,99 | 4,45 |
| LS25375-3 | 235,00 +20% | 100 | 171,45 | 6,99 | 4,45 |
| LS25375-4 | 305,00 +20% | 100 | 228,60 | 6,99 | 4,45 |
| LS38188-1 | 155,00 +20% | 100 | 66,68 | 7,62 | 5,08 |
| LS38188-2 | 200,00 +20% | 100 | 133,35 | 7,62 | 5,08 |
| LS38188-3 | 230,00 +20% | 100 | 200,03 | 7,62 | 5,08 |
| LS38188-4 | 255,00 +20% | 100 | 266,70 | 7,62 | 5,08 |
| LS38250-1 | 170,00 +20% | 100 | 66,68 | 7,62 | 5,08 |
| LS38250-2 | 215,00 +20% | 100 | 133,35 | 7,62 | 5,08 |
| LS38250-3 | 255,00 +20% | 50 | 200,03 | 7,62 | 5,08 |
| LS38250-4 | 410,00 +20% | 50 | 266,70 | 7,62 | 5,08 |
| LS38312-1 | 185,00 +20% | 50 | 66,68 | 7,62 | 5,08 |
| LS38312-2 | 235,00 +20% | 50 | 133,35 | 7,62 | 5,08 |
| LS38312-3 | 360,00 +20% | 50 | 200,03 | 7,62 | 5,08 |
| LS38312-4 | 650,00 +20% | 50 | 266,70 | 7,62 | 5,08 |
| LS38375-1 | 200,00 +20% | 50 | 66,68 | 7,62 | 5,08 |
| LS38375-2 | 265,00 +20% | 50 | 133,35 | 7,62 | 5,08 |
| LS38375-3 | 510,00 +20% | 50 | 200,03 | 7,62 | 5,08 |
| LS38375-4 | 770,00 +20% | 50 | 266,70 | 7,62 | 5,08 |
| LS45188-1 | 175,00 +20% | 50 | 76,20 | 8,26 | 5,72 |
| LS45188-2 | 230,00 +20% | 50 | 152,40 | 8,26 | 5,72 |
| LS45188-3 | 265,00 +20% | 50 | 228,60 | 8,26 | 5,72 |
| LS45188-4 | 410,00 +20% | 50 | 304,80 | 8,26 | 5,72 |
| LS45250-1 | 185,00 +20% | 50 | 76,20 | 8,26 | 5,72 |
| LS45250-2 | 240,00 +20% | 50 | 152,40 | 8,26 | 5,72 |
| LS45250-3 | 410,00 +20% | 50 | 228,60 | 8,26 | 5,72 |
| LS45250-4 | 740,00 +20% | 50 | 304,80 | 8,26 | 5,72 |
| LS45312-1 | 200,00 +20% | 25 | 76,20 | 8,26 | 5,72 |
| LS45312-2 | 305,00 +20% | 25 | 152,40 | 8,26 | 5,72 |
| LS45312-3 | 650,00 +20% | 25 | 228,60 | 8,26 | 5,72 |
| LS45312-4 | 770,00 +20% | 25 | 304,80 | 8,26 | 5,72 |
| LS45375-1 | 230,00 +20% | 25 | 76,20 | 8,26 | 5,72 |
| LS45375-2 | 410,00 +20% | 25 | 152,40 | 8,26 | 5,72 |
| LS45375-3 | 770,00 +20% | 25 | 228,60 | 8,26 | 5,72 |
| LS45375-4 | 810,00 +20% | 25 | 304,80 | 8,26 | 5,72 |
| LS62188-1 | 200,00 +20% | 25 | 85,73 | 8,89 | 6,35 |
| LS62188-2 | 270,00 +20% | 25 | 171,45 | 8,89 | 6,35 |
| LS62188-3 | 530,00 +20% | 25 | 257,18 | 8,89 | 6,35 |
| LS62188-4 | 770,00 +20% | 25 | 342,90 | 8,89 | 6,35 |
| LS62250-1 | 230,00 +20% | 25 | 85,73 | 8,89 | 6,35 |
| LS62250-2 | 425,00 +20% | 25 | 171,45 | 8,89 | 6,35 |
| LS62250-3 | 770,00 +20% | 25 | 257,18 | 8,89 | 6,35 |
| LS62250-4 | 810,00 +20% | 25 | 342,90 | 8,89 | 6,35 |
| LS62312-1 | 240,00 +20% | 25 | 85,73 | 8,89 | 6,35 |
| LS62312-2 | 690,00 +20% | 25 | 171,45 | 8,89 | 6,35 |
| LS62312-3 | 810,00 +20% | 10 | 257,18 | 8,89 | 6,35 |
| LS62312-4 | 860,00 +20% | 10 | 342,90 | 8,89 | 6,35 |
| LS62375-1 | 270,00 +20% | 10 | 85,73 | 8,89 | 6,35 |
| LS62375-2 | 770,00 +20% | 10 | 171,45 | 8,89 | 6,35 |
| LS62375-3 | 810,00 +20% | 10 | 257,18 | 8,89 | 6,35 |
| LS62375-4 | 970,00 +20% | 10 | 342,90 | 8,89 | 6,35 |
