Materiali disponibili: Acciaio Inox
Rondelle DI SICUREZZA
UNI 6600
ex DIN 93 Con linguetta
UNI 6600
ex DIN 93 Con linguetta
Materiale: Acciaio
Esempio di designazione
M 4 - DIN 93

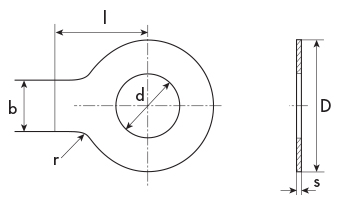

d=diametro interno D=diametro esterno r=raggio I=interasse linguetta b=larghezza linguetta
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione |
Per viti M |
d | D | l | b | r | s |
|---|---|---|---|---|---|---|---|---|---|
| 4 | 26,00 | 2.000 | 4 | 4,3 | 14,0 | 14 | 5,0 | 2 | 0,3 |
| 5 | 28,00 | 1.000 | 5 | 5,3 | 17,0 | 16 | 6,0 | 3 | 0,4 |
| 6 | 30,00 | 1.000 | 6 | 6,4 | 18,0 | 18 | 7,0 | 5 | 0,5 |
| 8 | 32,00 | 1.000 | 8 | 8,4 | 23,0 | 20 | 8,0 | 5 | 0,5 |
| 10 | 40,00 | 1.000 | 10 | 10,5 | 26,0 | 22 | 10,0 | 8 | 0,5 |
| 12 | 52,00 | 500 | 12 | 13,0 | 29,0 | 28 | 12,0 | 10 | 1,0 |
| 14 | 80,00 | 500 | 14 | 15,0 | 33,0 | 28 | 12,0 | 10 | 1,0 |
| 16 | 90,00 | 500 | 16 | 17,0 | 40,0 | 32 | 15,0 | 10 | 1,0 |
| 18 | 100,00 | 250 | 18 | 19,0 | 40,0 | 36 | 18,0 | 12 | 1,0 |
| 20 | 110,00 | 250 | 20 | 21,0 | 45,0 | 36 | 18,0 | 12 | 1,0 |
| 22 | 120,00 | 100 | 22 | 23,0 | 50,0 | 42 | 20,0 | 12 | 1,0 |
| 24 | 130,00 | 100 | 24 | 25,0 | 50,0 | 42 | 20,0 | 12 | 1,0 |
| 27 | 220,00 | 100 | 27 | 28,0 | 57,0 | 48 | 23,0 | 15 | 1,6 |
| 30 | 240,00 | 100 | 30 | 31,0 | 63,0 | 52 | 26,0 | 15 | 1,6 |
| 36 | 400,00 | 100 | 36 | 37,0 | 75,0 | 60 | 30,0 | 15 | 1,6 |
| 42 | 500,00 | 50 | 42 | 43,0 | 89,0 | 70 | 35,0 | 15 | 1,6 |
