Materiali disponibili: Steel Zinc Plated Stainless steel
Rondelle zigrinate RZSVS
Pesanti
Pesanti
Materiale: Acciaio per molle
Esempio di designazione: RZS 5 VS
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione |
Per viti M |

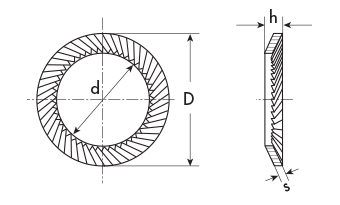

d | D | s | h max |
|---|---|---|---|---|---|---|---|
| RZS 5 VS | 5,00 | 1.000 | 5 | 5,3 | 9,0 | 0,8 | 1,20 |
| RZS 6 VS | 6,00 | 1.000 | 6 | 6,4 | 10,0 | 1,0 | 1,40 |
| RZS 8 VS | 8,00 | 1.000 | 8 | 8,4 | 13,0 | 1,2 | 1,70 |
| RZS 10 VS | 12,00 | 1.000 | 10 | 10,5 | 16,0 | 1,5 | 2,00 |
| RZS 12 VS | 16,00 | 500 | 12 | 13,0 | 18,0 | 1,5 | 2,10 |
| RZS 14 VS | 22,00 | 500 | 14 | 15,0 | 22,0 | 1,5 | 2,20 |
| RZS 16 VS | 28,00 | 250 | 16 | 17,0 | 24,0 | 2,0 | 2,60 |
| RZS 18 VS | 50,00 | 250 | 18 | 19,0 | 27,0 | 2,0 | 2,70 |
| RZS 20 VS | 60,00 | 250 | 20 | 21,0 | 30,0 | 2,0 | 2,80 |
| RZS 22 VS | 100,00 | 100 | 22 | 23,0 | 33,0 | 2,0 | 2,90 |
| RZS 24 VS | 110,00 | 100 | 24 | 25,6 | 36,0 | 2,5 | 3,30 |
| RZS 27 VS | 130,00 | 100 | 27 | 28,6 | 39,0 | 2,5 | 3,40 |
| RZS 30 VS | 150,00 | 100 | 30 | 31,6 | 45,0 | 2,5 | 3,60 |
