Materiali disponibili: Acciaio Inox

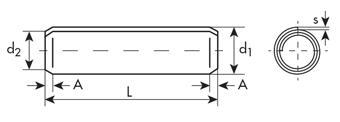

SPINE SPIRALI
ISO 8750
ex DIN 7343
ex UNI 6875
ISO 8750
ex DIN 7343
ex UNI 6875
Materiale:
Acciaio per molle CK67 - CK75 - 55Si7
A scelta del costruttore
Esempio di designazione:
SPINE SPIRALI ISO 8750 - 6 X 40
= Ad esaurimento
| Descrizione | Prezzo IVA escl euro/100 |
Confezione | Ø mm | L mm |
|---|---|---|---|---|
| 1 X 4 | 5,00 | 1.000 | 1,0 | 4 |
| 1 X 5 | 5,00 | 1.000 | 1,0 | 5 |
| 1 X 6 | 5,00 | 1.000 | 1,0 | 6 |
| 1 X 8 | 5,00 | 1.000 | 1,0 | 8 |
| 1 X 10 | 5,00 | 1.000 | 1,0 | 10 |
| 1 X 12 | 5,00 | 1.000 | 1,0 | 12 |
| 1,2 X 4 | 4,50 | 1.000 | 1,2 | 4 |
| 1,2 X 5 | 4,50 | 1.000 | 1,2 | 5 |
| 1,2 X 6 | 4,50 | 1.000 | 1,2 | 6 |
| 1,2 X 8 | 4,50 | 1.000 | 1,2 | 8 |
| 1,2 X 10 | 4,50 | 1.000 | 1,2 | 10 |
| 1,2 X 12 | 4,50 | 1.000 | 1,2 | 12 |
| 1,2 X 14 | 1,00 netto | 1.000 | 1,2 | 14 |
| 1,5 X 4 | 1,00 netto | 1.000 | 1,5 | 4 |
| 1,5 X 5 | 3,80 | 1.000 | 1,5 | 5 |
| 1,5 X 6 | 0,70 netto | 1.000 | 1,5 | 6 |
| 1,5 X 8 | 0,80 netto | 1.000 | 1,5 | 8 |
| 1,5 X 10 | 3,20 | 1.000 | 1,5 | 10 |
| 1,5 X 12 | 1,10 netto | 1.000 | 1,5 | 12 |
| 1,5 X 14 | 4,60 | 1.000 | 1,5 | 14 |
| 1,5 X 16 | 5,00 | 1.000 | 1,5 | 16 |
| 2 X 4 | 5,00 | 1.000 | 2,0 | 4 |
| 2 X 5 | 0,70 netto | 1.000 | 2,0 | 5 |
| 2 X 6 | 3,00 | 1.000 | 2,0 | 6 |
| 2 X 8 | 0,70 netto | 1.000 | 2,0 | 8 |
| 2 X 10 | 3,10 | 1.000 | 2,0 | 10 |
| 2 X 12 | 3,20 | 1.000 | 2,0 | 12 |
| 2 X 14 | 0,80 netto | 1.000 | 2,0 | 14 |
| 2 X 16 | 3,60 | 1.000 | 2,0 | 16 |
| 2 X 18 | 0,90 netto | 1.000 | 2,0 | 18 |
| 2 X 20 | 3,90 | 1.000 | 2,0 | 20 |
| 2,5 X 5 | 4,70 | 1.000 | 2,5 | 5 |
| 2,5 X 6 | 0,90 netto | 1.000 | 2,5 | 6 |
| 2,5 X 8 | 3,60 | 1.000 | 2,5 | 8 |
| 2,5 X 10 | 3,80 | 1.000 | 2,5 | 10 |
| 2,5 X 12 | 3,90 | 1.000 | 2,5 | 12 |
| 2,5 X 14 | 4,20 | 1.000 | 2,5 | 14 |
| 2,5 X 16 | 4,20 | 1.000 | 2,5 | 16 |
| 2,5 X 18 | 4,30 | 1.000 | 2,5 | 18 |
| 2,5 X 20 | 4,50 | 1.000 | 2,5 | 20 |
| 2,5 X 22 | 4,70 | 1.000 | 2,5 | 22 |
| 2,5 X 24 | 1,30 netto | 1.000 | 2,5 | 24 |
| 3 X 6 | 3,70 | 1.000 | 3,0 | 6 |
| 3 X 8 | 1,10 netto | 1.000 | 3,0 | 8 |
| 3 X 10 | 3,80 | 1.000 | 3,0 | 10 |
| 3 X 12 | 3,90 | 1.000 | 3,0 | 12 |
| 3 X 14 | 4,10 | 1.000 | 3,0 | 14 |
| 3 X 16 | 4,20 | 1.000 | 3,0 | 16 |
| 3 X 18 | 4,30 | 1.000 | 3,0 | 18 |
| 3 X 20 | 5,00 | 1.000 | 3,0 | 20 |
| 3 X 22 | 5,00 | 1.000 | 3,0 | 22 |
| 3 X 24 | 5,00 | 1.000 | 3,0 | 24 |
| 3 X 26 | 5,20 | 1.000 | 3,0 | 26 |
| 3 X 28 | 5,50 | 1.000 | 3,0 | 28 |
| 3 X 30 | 5,80 | 1.000 | 3,0 | 30 |
| 3 X 32 | 7,60 | 1.000 | 3,0 | 32 |
| 3,5 X 8 | 1,50 netto | 1.000 | 3,5 | 8 |
| 3,5 X 10 | 4,10 | 1.000 | 3,5 | 10 |
| 3,5 X 12 | 1,50 netto | 1.000 | 3,5 | 12 |
| 3,5 X 14 | 1,50 netto | 1.000 | 3,5 | 14 |
| 3,5 X 16 | 6,60 | 1.000 | 3,5 | 16 |
| 3,5 X 18 | 1,50 netto | 1.000 | 3,5 | 18 |
| 3,5 X 20 | 1,50 netto | 1.000 | 3,5 | 20 |
| 3,5 X 22 | 7,00 | 1.000 | 3,5 | 22 |
| 3,5 X 24 | 1,50 netto | 1.000 | 3,5 | 24 |
| 3,5 X 26 | 1,60 netto | 1.000 | 3,5 | 26 |
| 3,5 X 28 | 8,00 | 1.000 | 3,5 | 28 |
| 3,5 X 30 | 8,30 | 1.000 | 3,5 | 30 |
| 3,5 X 32 | 2,00 netto | 1.000 | 3,5 | 32 |
| 4 X 8 | 4,70 | 500 | 4,0 | 8 |
| 4 X 10 | 5,00 | 500 | 4,0 | 10 |
| 4 X 12 | 5,40 | 500 | 4,0 | 12 |
| 4 X 14 | 5,80 | 500 | 4,0 | 14 |
| 4 X 16 | 5,80 | 500 | 4,0 | 16 |
| 4 X 18 | 6,30 | 500 | 4,0 | 18 |
| 4 X 20 | 6,30 | 500 | 4,0 | 20 |
| 4 X 22 | 6,40 | 500 | 4,0 | 22 |
| 4 X 24 | 6,60 | 500 | 4,0 | 24 |
| 4 X 26 | 6,80 | 500 | 4,0 | 26 |
| 4 X 28 | 7,00 | 500 | 4,0 | 28 |
| 4 X 30 | 7,30 | 500 | 4,0 | 30 |
| 4 X 32 | 7,80 | 500 | 4,0 | 32 |
| 4 X 36 | 9,00 | 500 | 4,0 | 36 |
| 4 X 40 | 9,40 | 500 | 4,0 | 40 |
| 4 X 45 | 9,80 | 500 | 4,0 | 45 |
| 4 X 50 | 13,00 | 500 | 4,0 | 50 |
| 5 X 10 | 8,10 | 500 | 5,0 | 10 |
| 5 X 12 | 6,60 | 500 | 5,0 | 12 |
| 5 X 14 | 7,00 | 500 | 5,0 | 14 |
| 5 X 16 | 7,40 | 500 | 5,0 | 16 |
| 5 X 18 | 7,50 | 500 | 5,0 | 18 |
| 5 X 20 | 8,50 | 500 | 5,0 | 20 |
| 5 X 22 | 8,60 | 500 | 5,0 | 22 |
| 5 X 24 | 8,70 | 500 | 5,0 | 24 |
| 5 X 26 | 9,00 | 500 | 5,0 | 26 |
| 5 X 28 | 9,00 | 500 | 5,0 | 28 |
| 5 X 30 | 10,50 | 500 | 5,0 | 30 |
| 5 X 32 | 11,00 | 500 | 5,0 | 32 |
| 5 X 36 | 13,00 | 500 | 5,0 | 36 |
| 5 X 40 | 13,00 | 500 | 5,0 | 40 |
| 5 X 45 | 13,00 | 500 | 5,0 | 45 |
| 5 X 50 | 14,00 | 250 | 5,0 | 50 |
| 5 X 55 | 19,00 | 250 | 5,0 | 55 |
| 5 X 60 | 20,00 | 250 | 5,0 | 60 |
| 6 X 12 | 8,50 | 500 | 6,0 | 12 |
| 6 X 14 | 9,50 | 500 | 6,0 | 14 |
| 6 X 16 | 9,00 | 500 | 6,0 | 16 |
| 6 X 18 | 11,00 | 500 | 6,0 | 18 |
| 6 X 20 | 9,70 | 500 | 6,0 | 20 |
| 6 X 22 | 10,00 | 500 | 6,0 | 22 |
| 6 X 24 | 10,50 | 500 | 6,0 | 24 |
| 6 X 26 | 11,00 | 500 | 6,0 | 26 |
| 6 X 28 | 12,00 | 500 | 6,0 | 28 |
| 6 X 30 | 13,00 | 500 | 6,0 | 30 |
| 6 X 32 | 14,00 | 500 | 6,0 | 32 |
| 6 X 36 | 15,00 | 500 | 6,0 | 36 |
| 6 X 40 | 16,00 | 250 | 6,0 | 40 |
| 6 X 45 | 17,00 | 250 | 6,0 | 45 |
| 6 X 50 | 18,00 | 250 | 6,0 | 50 |
| 6 X 55 | 24,00 | 250 | 6,0 | 55 |
| 6 X 60 | 26,00 | 250 | 6,0 | 60 |
| 6 X 65 | 29,00 | 250 | 6,0 | 65 |
| 6 X 70 | 7,00 netto | 250 | 6,0 | 70 |
| 8 X 16 | 3,50 netto | 500 | 8,0 | 16 |
| 8 X 18 | 3,60 netto | 500 | 8,0 | 18 |
| 8 X 20 | 18,00 | 500 | 8,0 | 20 |
| 8 X 22 | 20,00 | 500 | 8,0 | 22 |
| 8 X 24 | 21,00 | 500 | 8,0 | 24 |
| 8 X 26 | 22,00 | 250 | 8,0 | 26 |
| 8 X 28 | 23,00 | 250 | 8,0 | 28 |
| 8 X 30 | 28,00 | 250 | 8,0 | 30 |
| 8 X 32 | 29,00 | 250 | 8,0 | 32 |
| 8 X 36 | 31,00 | 250 | 8,0 | 36 |
| 8 X 40 | 32,00 | 500 | 8,0 | 40 |
| 8 X 45 | 33,00 | 500 | 8,0 | 45 |
| 8 X 50 | 35,00 | 250 | 8,0 | 50 |
| 8 X 55 | 45,00 | 250 | 8,0 | 55 |
| 8 X 60 | 11,50 netto | 250 | 8,0 | 60 |
| 8 X 65 | 55,00 | 250 | 8,0 | 65 |
| 8 X 70 | 60,00 | 250 | 8,0 | 70 |
| 8 X 75 | 65,00 | 250 | 8,0 | 75 |
| 8 X 80 | 70,00 | 250 | 8,0 | 80 |
| 8 X 85 | 100,00 | 200 | 8,0 | 85 |
| 8 X 90 | 120,00 | 100 | 8,0 | 90 |
| 8 X 100 | 140,00 | 100 | 8,0 | 100 |
| 10 X 20 | 30,00 | 500 | 10,0 | 20 |
| 10 X 22 | 31,00 | 500 | 10,0 | 22 |
| 10 X 24 | 33,00 | 500 | 10,0 | 24 |
| 10 X 26 | 35,00 | 500 | 10,0 | 26 |
| 10 X 28 | 37,00 | 500 | 10,0 | 28 |
| 10 X 30 | 39,00 | 500 | 10,0 | 30 |
| 10 X 32 | 44,00 | 500 | 10,0 | 32 |
| 10 X 35 | 46,00 | 250 | 10,0 | 35 |
| 10 X 40 | 11,00 netto | 250 | 10,0 | 40 |
| 10 X 45 | 50,00 | 250 | 10,0 | 45 |
| 10 X 50 | 68,00 | 250 | 10,0 | 50 |
| 10 X 55 | 72,00 | 250 | 10,0 | 55 |
| 10 X 60 | 80,00 | 200 | 10,0 | 60 |
| 10 X 65 | 18,00 netto | 200 | 10,0 | 65 |
| 10 X 70 | 98,00 | 100 | 10,0 | 70 |
| 10 X 75 | 105,00 | 100 | 10,0 | 75 |
| 10 X 80 | 110,00 | 100 | 10,0 | 80 |
| 10 X 85 | 200,00 | 100 | 10,0 | 85 |
| 10 X 90 | 210,00 | 100 | 10,0 | 90 |
| 10 X 95 | 220,00 | 100 | 10,0 | 95 |
| 10 X 100 | 230,00 | 100 | 10,0 | 100 |
| 10 X 120 | 450,00 | 50 | 10,0 | 120 |
| 12 X 24 | 120,00 | 250 | 12,0 | 24 |
| 12 X 26 | 125,00 | 250 | 12,0 | 26 |
| 12 X 28 | 130,00 | 250 | 12,0 | 28 |
| 12 X 30 | 135,00 | 250 | 12,0 | 30 |
| 12 X 32 | 140,00 | 250 | 12,0 | 32 |
| 12 X 35 | 150,00 | 200 | 12,0 | 35 |
| 12 X 36 | 250,00 | 200 | 12,0 | 36 |
| 12 X 40 | 140,00 | 200 | 12,0 | 40 |
| 12 X 45 | 140,00 | 200 | 12,0 | 45 |
| 12 X 50 | 140,00 | 100 | 12,0 | 50 |
| 12 X 55 | 150,00 | 100 | 12,0 | 55 |
| 12 X 60 | 22,00 netto | 100 | 12,0 | 60 |
| 12 X 65 | 170,00 | 100 | 12,0 | 65 |
| 12 X 70 | 24,00 netto | 100 | 12,0 | 70 |
| 12 X 75 | 190,00 | 100 | 12,0 | 75 |
| 12 X 80 | 28,00 netto | 100 | 12,0 | 80 |
| 12 X 85 | 250,00 | 50 | 12,0 | 85 |
| 12 X 90 | 32,00 netto | 50 | 12,0 | 90 |
| 12 X 95 | 36,00 netto | 50 | 12,0 | 95 |
| 12 X 100 | 40,00 netto | 50 | 12,0 | 100 |
| 12 X 120 | 540,00 | 50 | 12,0 | 120 |
| 12 X 140 | 640,00 | 50 | 12,0 | 140 |
| 12 X 160 | 800,00 | 50 | 12,0 | 160 |
| 14 X 32 | 180,00 | 100 | 14,0 | 32 |
| 14 X 36 | 30,00 netto | 100 | 14,0 | 36 |
| 14 X 40 | 30,00 netto | 100 | 14,0 | 40 |
| 14 X 45 | 32,00 netto | 100 | 14,0 | 45 |
| 14 X 50 | 34,00 netto | 100 | 14,0 | 50 |
| 14 X 55 | 36,00 netto | 100 | 14,0 | 55 |
| 14 X 60 | 40,00 netto | 100 | 14,0 | 60 |
| 14 X 65 | 41,00 netto | 50 | 14,0 | 65 |
| 14 X 70 | 42,00 netto | 50 | 14,0 | 70 |
| 14 X 75 | 43,00 netto | 50 | 14,0 | 75 |
| 14 X 80 | 310,00 | 50 | 14,0 | 80 |
| 14 X 85 | 45,00 netto | 50 | 14,0 | 85 |
| 14 X 90 | 48,00 netto | 50 | 14,0 | 90 |
| 14 X 95 | 480,00 | 50 | 14,0 | 95 |
| 14 X 100 | 540,00 | 50 | 14,0 | 100 |
| 16 X 40 | 50,00 netto | 100 | 16,0 | 40 |
| 16 X 45 | 52,00 netto | 100 | 16,0 | 45 |
| 16 X 50 | 54,00 netto | 100 | 16,0 | 50 |
| 16 X 55 | 56,00 netto | 50 | 16,0 | 55 |
| 16 X 60 | 58,00 netto | 50 | 16,0 | 60 |
| 16 X 65 | 60,00 netto | 50 | 16,0 | 65 |
| 16 X 70 | 62,00 netto | 50 | 16,0 | 70 |
| 16 X 75 | 270,00 | 50 | 16,0 | 75 |
| 16 X 80 | 66,00 netto | 50 | 16,0 | 80 |
| 16 X 85 | 370,00 | 50 | 16,0 | 85 |
| 16 X 90 | 80,00 netto | 50 | 16,0 | 90 |
| 16 X 100 | 90,00 netto | 50 | 16,0 | 100 |
| 16 X 120 | 770,00 | 50 | 16,0 | 120 |
